WR-BHD 2.00 mm Male Box Header with Lever | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.00 mm GenderMale Product seriesWR-BHD 2.00 mm Male Box Header with Lever

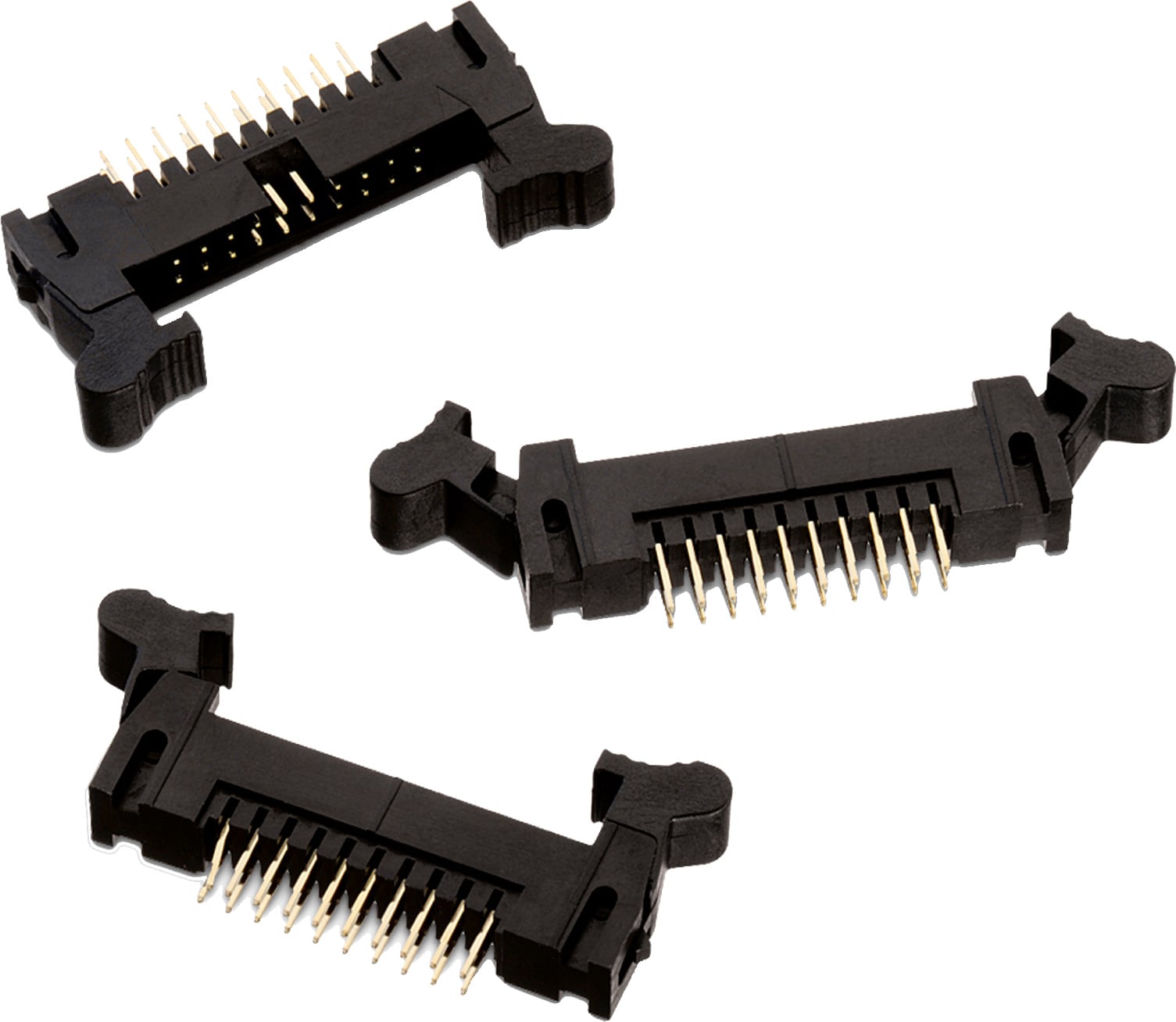

WR-BHD 2.00 mm Male Box Header with Lever. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Material Properties
Insulator Material	Nylon 6T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C; -40 °C up to +125 °C
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Male

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
62501022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62501022021_1 (rev1).pdf \| 101.3 KB IGS 62501022021 (rev1).igs \| 1.4 MB STP 62501022021 (rev1).stp \| 533.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2	With locking lever	Male	Straight	THT	25.7	2	250	20	max.	Tray	612001 612690
62501422021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62501422021_1 (rev1).pdf \| 110.5 KB IGS 62501422021 (rev1).igs \| 1.6 MB STP 62501422021 (rev1).stp \| 610.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	2	With locking lever	Male	Straight	THT	29.7	2	250	20	max.	Tray	612001
62502022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62502022021_1 (rev1).pdf \| 126.3 KB IGS 62502022021 (rev1).igs \| 1.8 MB STP 62502022021 (rev1).stp \| 728.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	2	With locking lever	Male	Straight	THT	35.7	2	250	20	max.	Tray	612001
62502622021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62502622021_1 (rev1).pdf \| 142.8 KB IGS 62502622021 (rev1).igs \| 2.1 MB STP 62502622021 (rev1).stp \| 846.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	26	2	With locking lever	Male	Straight	THT	41.7	2	250	20	max.	Tray	–
62503422021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62503422021_1 (rev1).pdf \| 166 KB IGS 62503422021 (rev1).igs \| 2.5 MB STP 62503422021 (rev1).stp \| 1005.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	34	2	With locking lever	Male	Straight	THT	49.7	2	250	20	max.	Tray	612001
62504022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62504022021_1 (rev1).pdf \| 180 KB IGS 62504022021 (rev1).igs \| 2.7 MB STP 62504022021 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	40	2	With locking lever	Male	Straight	THT	55.7	2	250	20	max.	Tray	–
62504422021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62504422021_1 (rev1).pdf \| 191 KB IGS 62504422021 (rev1).igs \| 2.9 MB STP 62504422021 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	44	2	With locking lever	Male	Straight	THT	59.7	2	250	20	max.	Tray	–
62505022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62505022021_1 (rev1).pdf \| 207.6 KB IGS 62505022021 (rev1).igs \| 3.2 MB STP 62505022021 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	50	2	With locking lever	Male	Straight	THT	65.7	2	250	20	max.	Tray	–

Order Code	Datasheet
62501022021	SPEC
62501422021	SPEC
62502022021	SPEC
62502622021	SPEC
62503422021	SPEC
62504022021	SPEC
62504422021	SPEC
62505022021	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-BHD 2.00 mm Female IDC Connector w. Strain Relief
