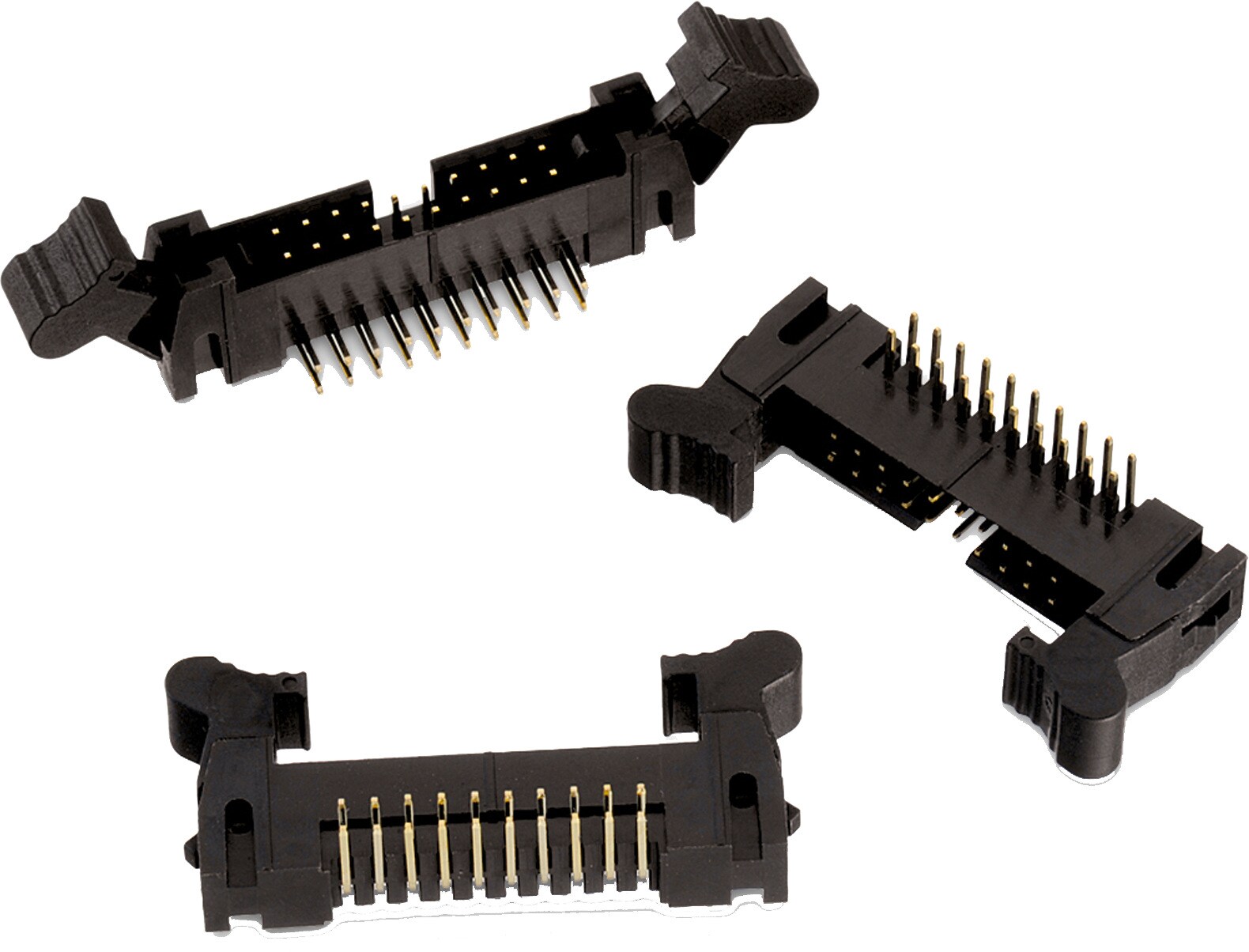

WR-BHD 2.00 mm Male Angled Box Header w. Lever | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.00 mm GenderMale Product seriesWR-BHD 2.00 mm Male Angled Box Header w. Lever

WR-BHD 2.00 mm Male Angled Box Header w. Lever. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Material Properties
Insulator Material	Nylon 6T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +125 °C
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Male

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
62501022121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62501022121_1 (rev1).pdf \| 105.5 KB IGS 62501022121 (rev1).igs \| 1.5 MB STP 62501022121 (rev1).stp \| 583.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	2	With locking lever	Male	Angled	THT	25.7	2	250	20	max.	Tray	612001
62501422121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62501422121_1 (rev1).pdf \| 114.7 KB IGS 62501422121 (rev1).igs \| 1.7 MB STP 62501422121 (rev1).stp \| 662 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	2	With locking lever	Male	Angled	THT	29.7	2	250	20	max.	Tray	–
62502022121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62502022121_1 (rev1).pdf \| 130.6 KB IGS 62502022121 (rev1).igs \| 1.9 MB STP 62502022121 (rev1).stp \| 780.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	2	With locking lever	Male	Angled	THT	35.7	2	250	20	max.	Tray	–
62502622121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62502622121_1 (rev1).pdf \| 147.1 KB IGS 62502622121 (rev1).igs \| 2.2 MB STP 62502622121 (rev1).stp \| 898.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	26	2	With locking lever	Male	Angled	THT	41.7	2	250	20	max.	Tray	–
62503422121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62503422121_1 (rev1).pdf \| 170.5 KB IGS 62503422121 (rev1).igs \| 2.6 MB STP 62503422121 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	34	2	With locking lever	Male	Angled	THT	49.7	2	250	20	max.	Tray	612001
62504022121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62504022121_1 (rev1).pdf \| 184.6 KB IGS 62504022121 (rev1).igs \| 2.8 MB STP 62504022121 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	40	2	With locking lever	Male	Angled	THT	55.7	2	250	20	max.	Tray	612001
62504422121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62504422121_1 (rev1).pdf \| 195.6 KB IGS 62504422121 (rev1).igs \| 3 MB STP 62504422121 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	44	2	With locking lever	Male	Angled	THT	59.7	2	250	20	max.	Tray	–
62505022121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 62505022121_1 (rev1).pdf \| 212.4 KB IGS 62505022121 (rev1).igs \| 3.3 MB STP 62505022121 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	50	2	With locking lever	Male	Angled	THT	65.7	2	250	20	max.	Tray	612001

Order Code	Datasheet
62501022121	SPEC
62501422121	SPEC
62502022121	SPEC
62502622121	SPEC
62503422121	SPEC
62504022121	SPEC
62504422121	SPEC
62505022121	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-BHD 2.00 mm Female IDC Connector w. Strain Relief

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable
