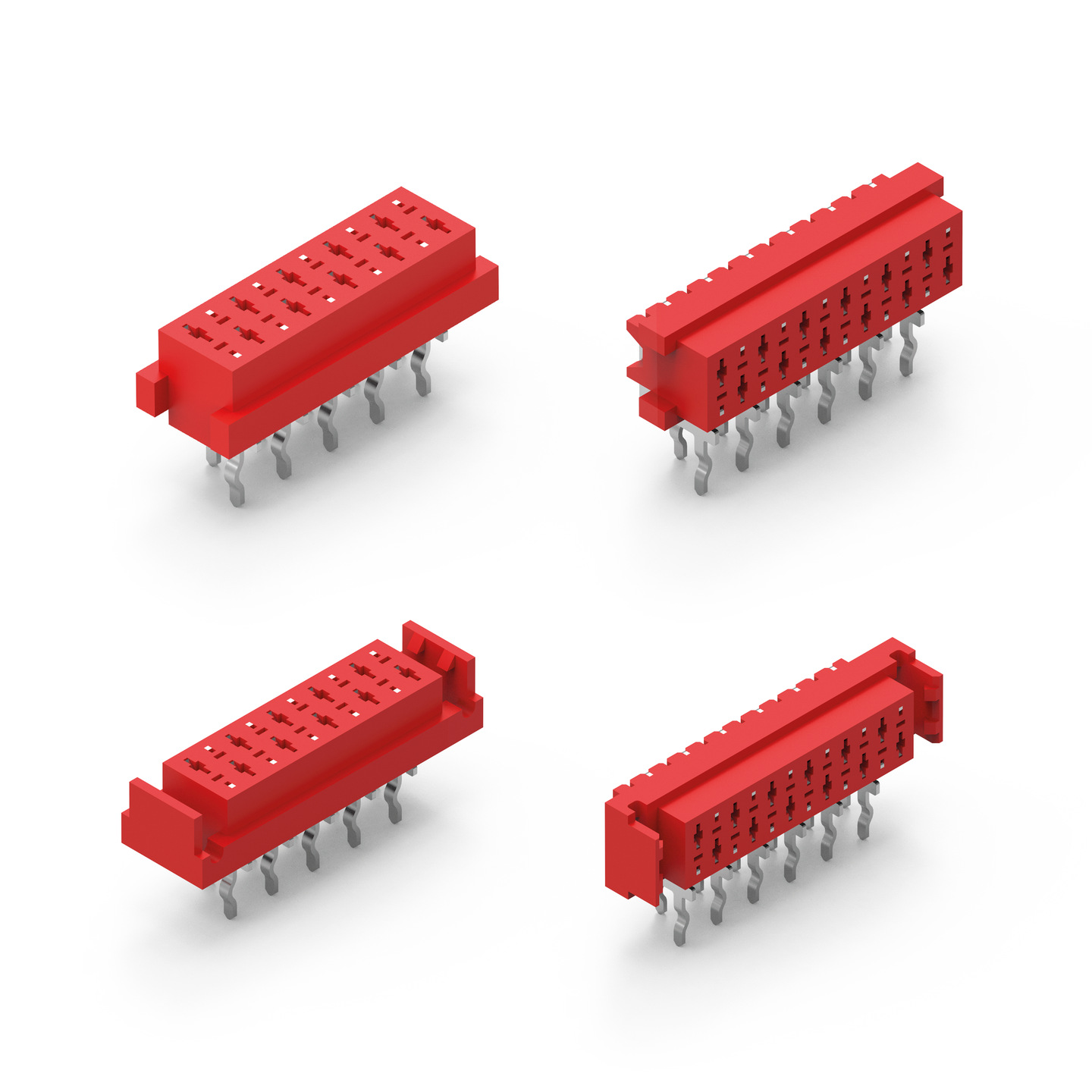

WR-MM PCB side | Electromechanical Components | Würth Elektronik Product Catalog

Characteristics

Rated Current: 1.5 A
Working Voltage: 250 V
Contact Resistance: 10 mOhm
UL Approval: E323694
UL94-V0
Operating Temperature: -40 up to 105 °C

Applications

Industrial
Audio Devices
Domestic Applications

Products

All

Female Straight with Latch & without Polarization

Female Straight without Latch & without Polarization

Female Straight with Latch & with Polarization

Female Straight without Latch & with Polarization

Female Angled with Latch & with Polarization

Female Angled without Latch & with Polarization

Female Angled without Latch & without Polarization
