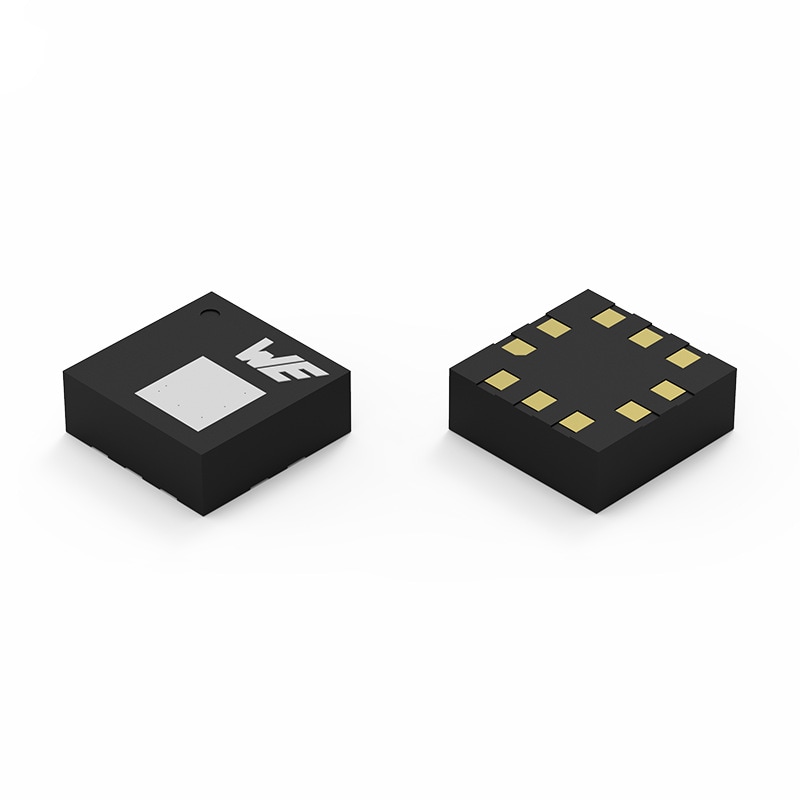

WSEN-PADS Absolute Pressure Sensor & EV-Kits

WSEN-PADS Absolute Pressure Sensor & EV-Kits

Characteristics

  • MEMS based piezo-resistive sensing principle
  • Fully calibrated 24 bit pressure output
  • Selectable output data rate up to 200 Hz
  • 128 level FIFO buffer
  • Embedded temperature sensor
  • I²C and SPI digital communication interface
  • Application specific interrupt event setting
  • Temperature range: -40 °C up to +85 °C
  • Sensor Software Development Kit
  • Sensor Arduino Libraries via GitHub

Applications

  • Altimeters and barometers
  • Weather stations
  • GPS navigation enhancement
  • Indoor navigation
  • White goods
  • Wearable devices

Application Notes

Keep it simple! Sense with MEMS.

Sensors are an integral part of every future application. Measuring temperature, humidity, pressure or acceleration has never been easier.

Video and more

Products

All
WSEN-PADS
EV-Kits
Arduino
FeatherWing
Reset all
Filter article data
Filter by
Delete all
 show  catalog.filterBar.article in 4 product lines
 catalog.filterBar.article in 4 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Man­ual
Downloads
Status
Description
PRANGE min(kPa)
PRANGE max(kPa)
PACC_REL
ODR(Hz)
ODR(Hz)
RESP(bits)
Min. Operating Temperature(°C)
Max. Operating Temperature(°C)
Packaging
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
2511223013391
–
Man­ual
Availability
–
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionEV-Board for Absolute Pressure Sensor
–
–
–
–
–
–
–
–
–
–Check availability
2501000201291
–
Man­ual
Availability
–
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionSensor FeatherWing
–
–
–
–
–
–
–
–
–
–Check availability
2501000101291
–
Man­ual
Availability
–
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionSensor Shield for Arduino
–
–
–
–
–
–
–
–
–
–Check availability

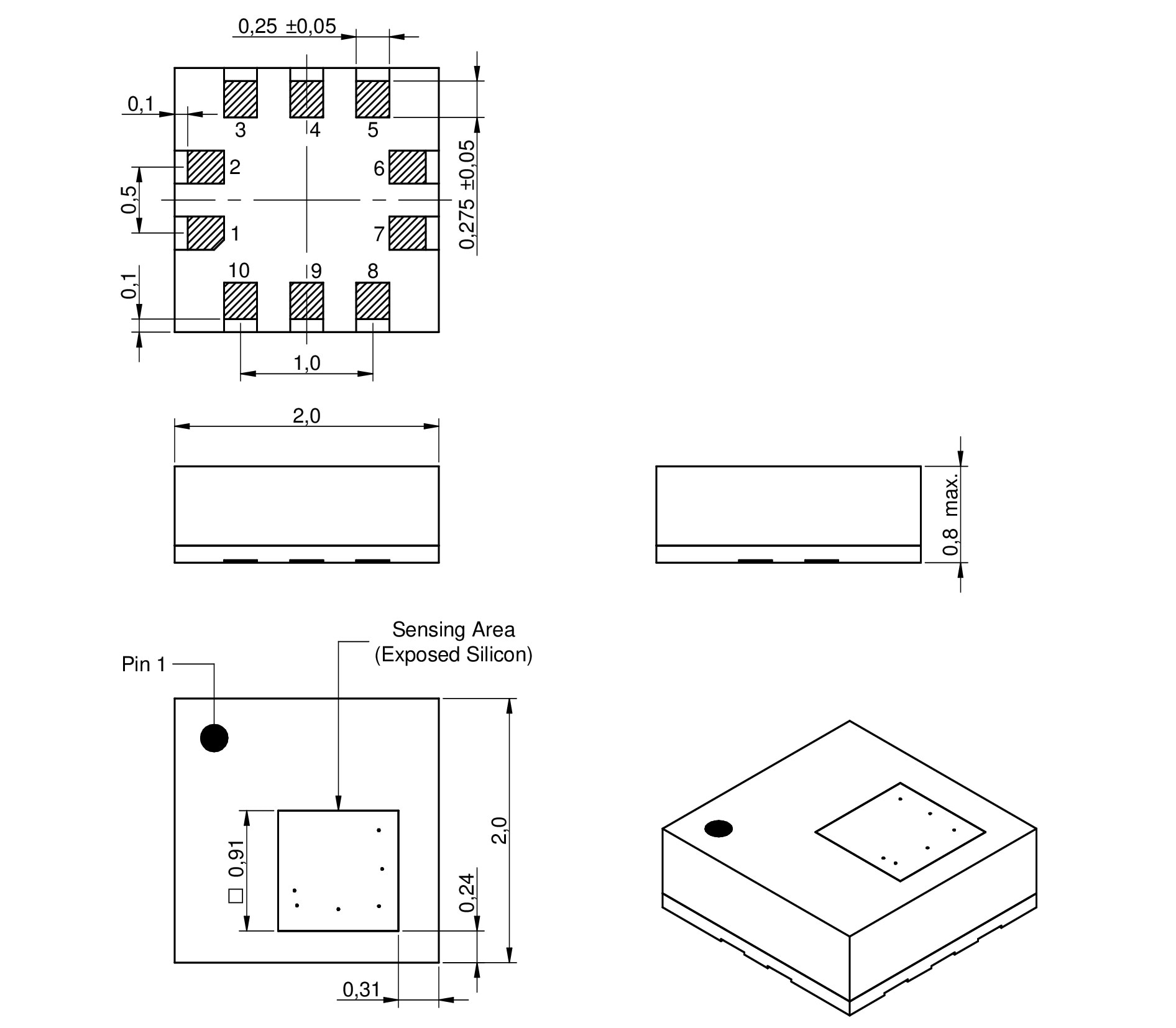

2511020213301
SPECWSEN-PADS, 26 kPa, 126 kPa
Man­ual
Availability
–
Downloads5 files

Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionWSEN-PADS
Measurement range [min.]26 kPa
Measurement range [max.]126 kPa
Relative accuracy [typ.]±2.5 Pa
Output data rate [min.]1 Hz
Output data rate [max.]200 Hz
Resolution (ADC) [typ.]24 bits
Min. Operating Temperature-40 °C
Max. Operating Temperature85 °C
Packaging7'' Reel
–Check availability
25110202133011
SPECWSEN-PADS, 26 kPa, 126 kPa
Man­ual
Availability
–
Downloads5 files

Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionWSEN-PADS
Measurement range [min.]26 kPa
Measurement range [max.]126 kPa
Relative accuracy [typ.]±2.5 Pa
Output data rate [min.]1 Hz
Output data rate [max.]200 Hz
Resolution (ADC) [typ.]24 bits
Min. Operating Temperature-40 °C
Max. Operating Temperature85 °C
Packaging13'' Reel
–Check availability

Download now free of charge

Software downloads

IoT becomes intelligent when hardware and software work together harmoniously!

The Würth Elektronik range of sensors provide advanced sensing capabilities to any embedded application. The built-in digital interface enables easy integration with any of the most commonly used host MCUs through industry standard serial communication interfaces like I²C. This also allows complete configuration and control of the sensor via software running on the host MCU.
The Sensors Software Development Kit (SDK) is a set of software tools that enable quick software integration of Würth Elektronik eiSos sensors to application software on the host MCU. It consists of a set of platform-independent drivers for the sensors and sample applications developed on the Raspberry Pi platform written in C.

Find more information in the Sensor SDK Manual.

Download now

More Information

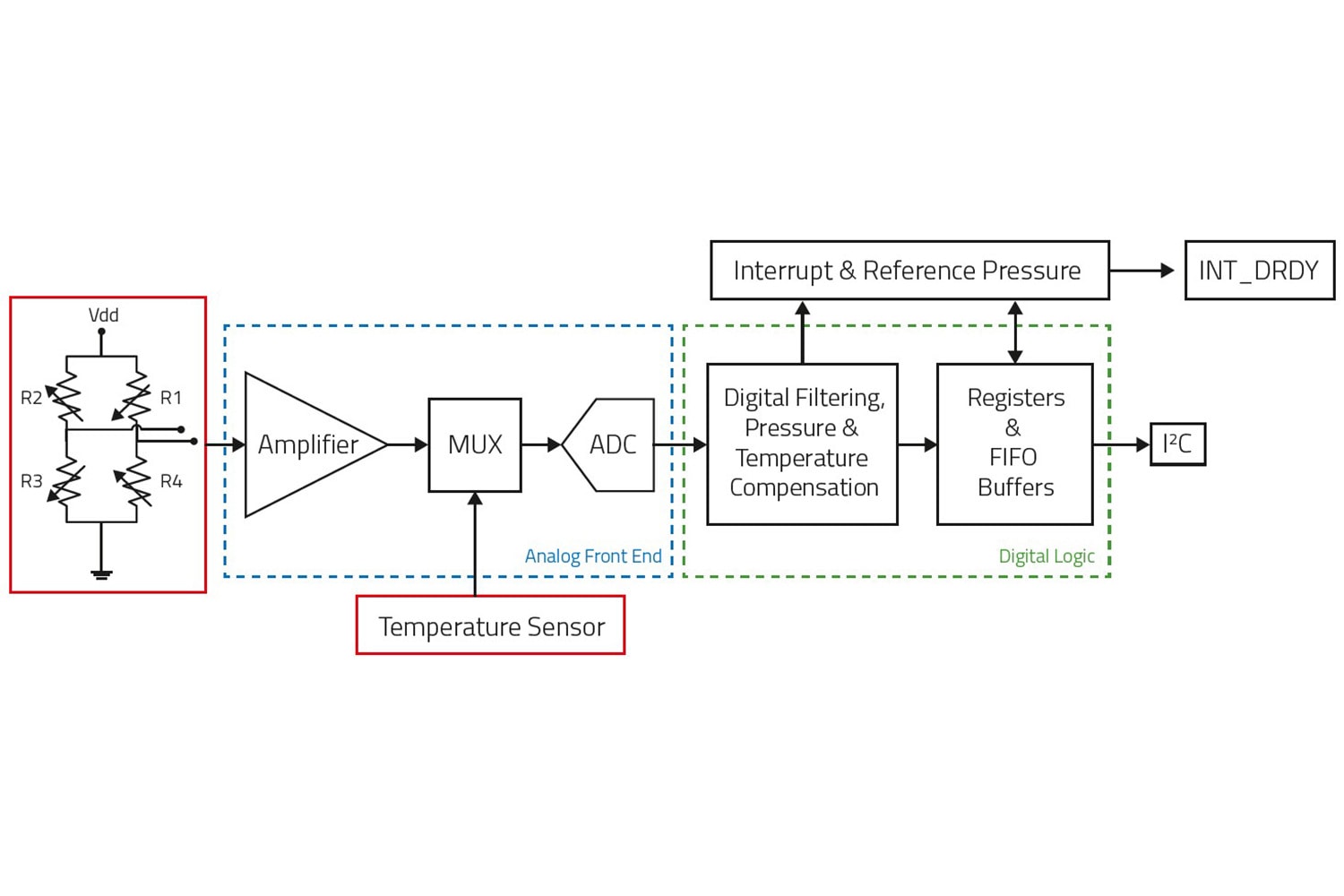

Content PADS Block Diagram

Block Diagramm

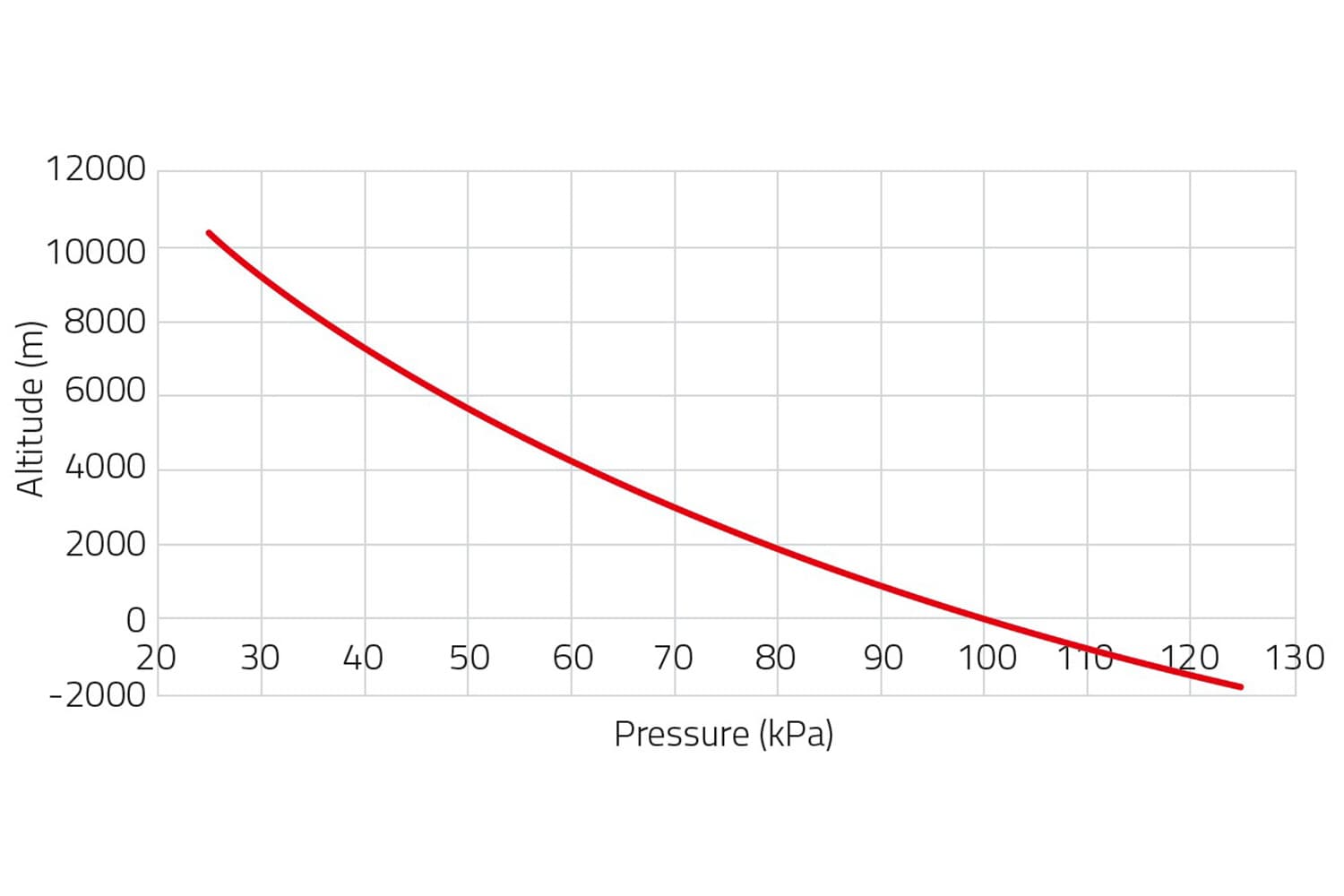

Content PADS Altitude

Change in Pressure with Altitude

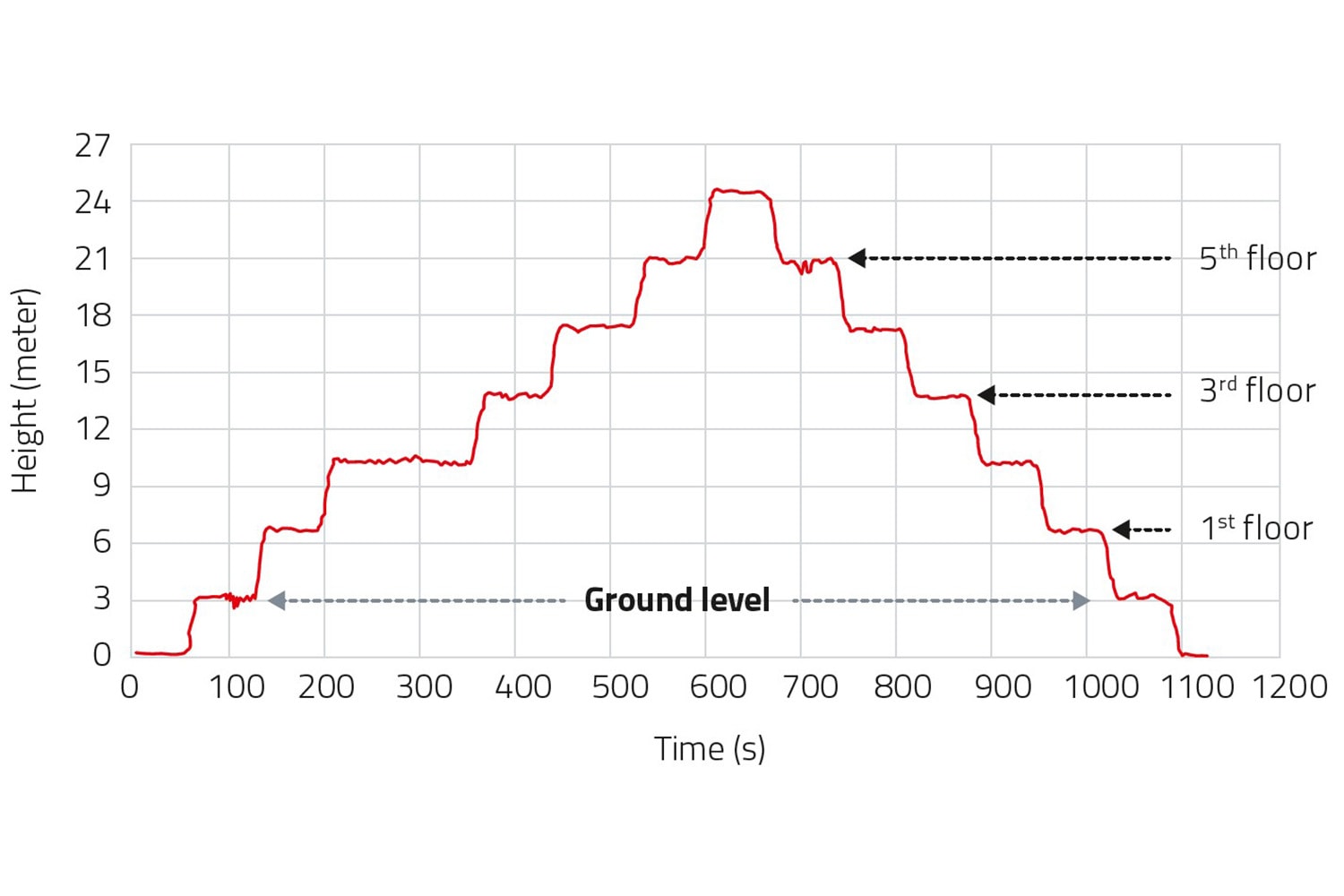

Content PADS FloorDetection

Buliding Height measured with WSEN-PADS
