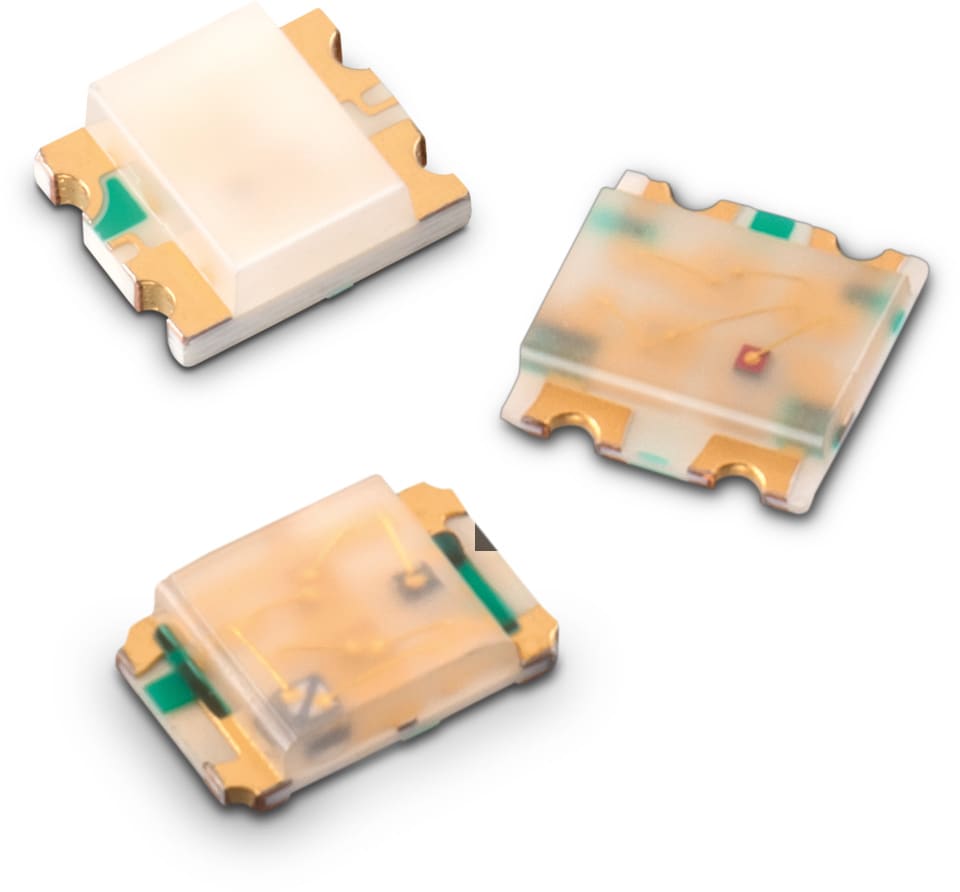

WL-SFCD SMT Full-color Chip LED Diffused

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0606		1.6	1.6	0.4	SMT
0805		2	1.3	0.5	SMT
1210		2.7	3.2	1.1	SMT

LTSpice files

LT
LTSpice_WL-SFCD (rev22a).zip
|
3.6 KB

Characteristics

High efficiency
Low power consumption
Diffused optics LED
Red/Green/Blue color combination
Compatible with reflow soldering
Industry standard footprint
RGB
Compatible with automatic placement machine
Wide viewing angle

Applications

Backlighting
Status indicator
Front panel indicator
Office automation, home appliances, industrial equipment
Backlighting for keypad, symbol and switch button
Indicator
Consumer electronics
Safety and security
General LED lighting

Products

All

0606

0805

1210

Filter article data

show article in 3 product lines

article in 3 product lines

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	I_{V B typ.}(mcd)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	V_{F B typ.}(V)	V_{F G typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Design Kit	Demoboard	Samples

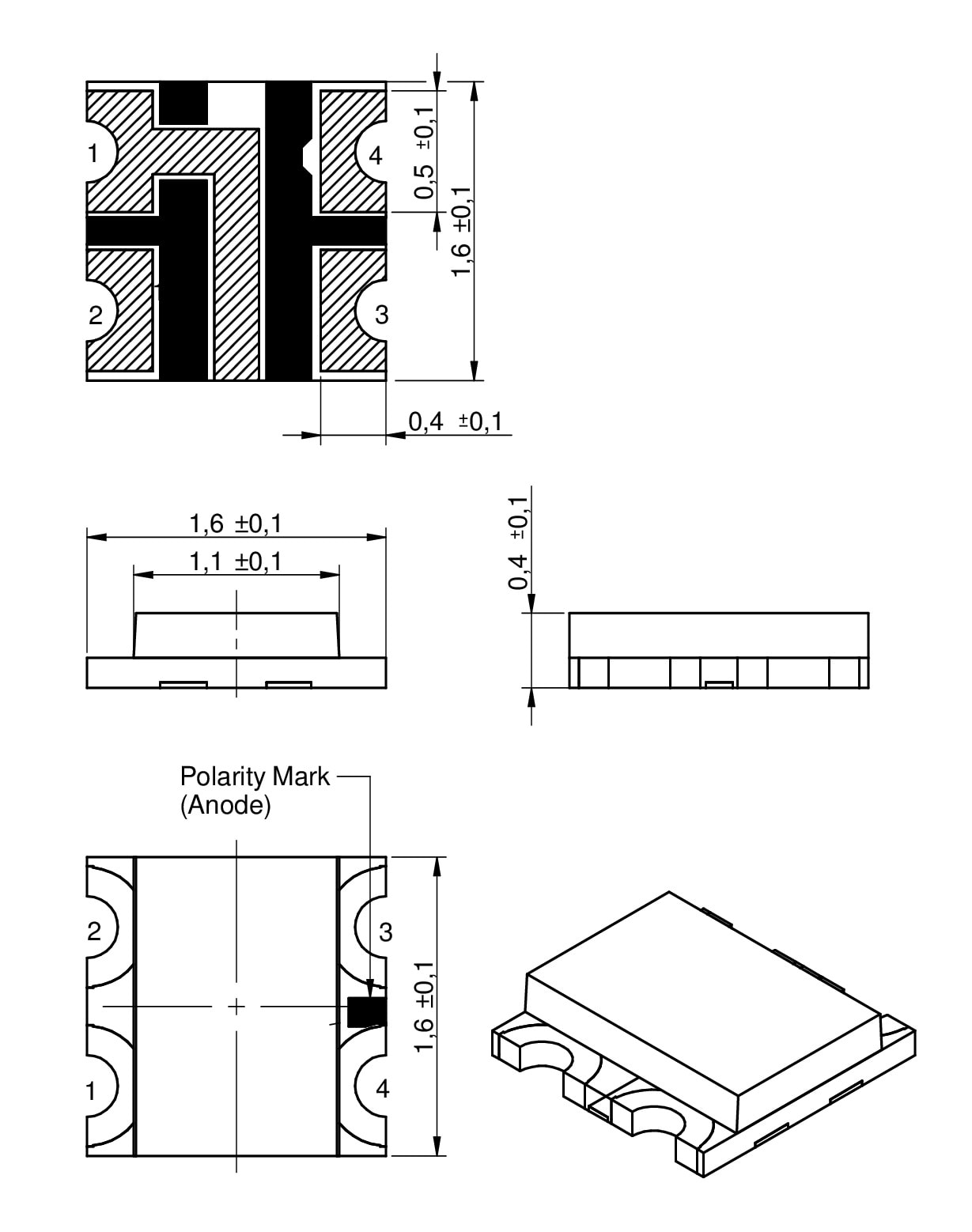

	150066M153000	Red & Green & Blue, 468 nm, 520 nm	Downloads26 files EDA models: Components ZIP ALT Altium_WL-SFCD (rev22c).IntLib \| 218 KB CDS Cadence_WL-SFCD (rev19a).zip \| 893.8 KB EAG Eagle_WL-SFCD (rev22a).lbr \| 32.8 KB CAD files ZIP IGS Download_IGS_WL-SFCD-0606 (rev1).igs \| 2.3 MB STP Download_STP_WL-SFCD-0606 (rev1).stp \| 836.7 KB Electric models ZIP PSP PSpice_WL-SFCD (rev22a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150066M153000_5M (rev1p0).zip \| 464.5 MB COD CodeV_ray_150066M153000_5M (rev1p0).zip \| 464.5 MB FRE Fred_dat_150066M153000_5M (rev1p0).zip \| 464.5 MB FRE Fred_txt_150066M153000_5M (rev1p0).zip \| 643.3 MB LIG LightTools_ray_150066M153000_5M (rev1p0).zip \| 464.5 MB LIG LightTools_txt_150066M153000_5M (rev1p0).zip \| 731 MB LUC LucidShape_ray_150066M153000_5M (rev1p0).zip \| 464.5 MB LUC LucidShape_txt_150066M153000_5M (rev1p0).zip \| 731 MB OPT OpTaliX_txt_150066M153000_5M (rev1p0).zip \| 731 MB OPT OptiCAD_dat_150066M153000_5M (rev1p0).zip \| 464.5 MB OPT OptiCAD_txt_150066M153000_5M (rev1p0).zip \| 731 MB OPT optalix_DIS_150066M153000_5M (rev1p0).zip \| 464.5 MB RIR Photopia_rir_150066M153000_5M (rev1p0).zip \| 464.5 MB SIM Simulux_ray_150066M153000_5M (rev1p0).zip \| 464.5 MB SPE Speos_ray_150066M153000_5M (rev1p0).zip \| 480 MB SRC Lucaray-maker_src_150066M153000_5M (rev1p0).zip \| 362.4 MB TRA TracePro_txt_150066M153000_5M (rev1p0).zip \| 731 MB ZEM ZemaxBin_dat_150066M153000_5M (rev1p0).zip \| 464.5 MB ZEM Zemax_dat_150066M153000_5M (rev1p0).zip \| 731 MB Certificates ZIP CER IR_LED_certificate_WL-SFCD-0606 (rev1).pdf \| 1.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]180 mcd	Luminous Intensity (Green) [typ.]900 mcd	Luminous Intensity (Red) [typ.]285 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003

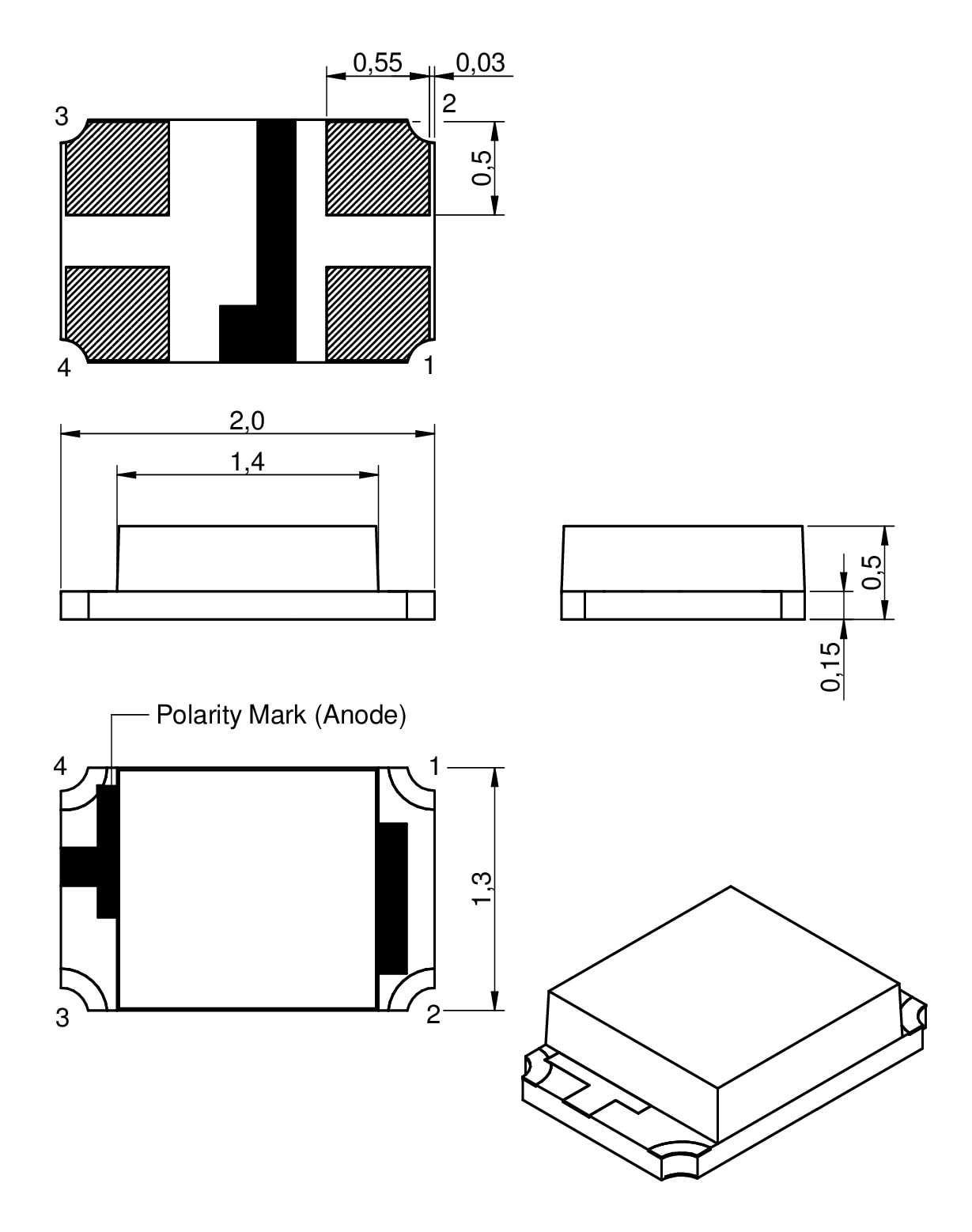

	150080M153000	Red & Green & Blue, 468 nm, 520 nm	Downloads7 files EDA models: Components ZIP ALT Altium_WL-SFCD (rev22c).IntLib \| 218 KB CDS Cadence_WL-SFCD (rev19a).zip \| 893.8 KB EAG Eagle_WL-SFCD (rev22a).lbr \| 32.8 KB CAD files ZIP IGS Download_IGS_WL-SFCD-0805 (rev1).igs \| 994.5 KB STP Download_STP_WL-SFCD-0805 (rev1).stp \| 426.4 KB Electric models ZIP PSP PSpice_WL-SFCD (rev22a).zip \| 3.7 KB Certificates ZIP CER IR_LED_certificate_WL-SFCD_150080M153000 (rev1).pdf \| 1.7 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]70 mcd	Luminous Intensity (Green) [typ.]285 mcd	Luminous Intensity (Red) [typ.]112 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003

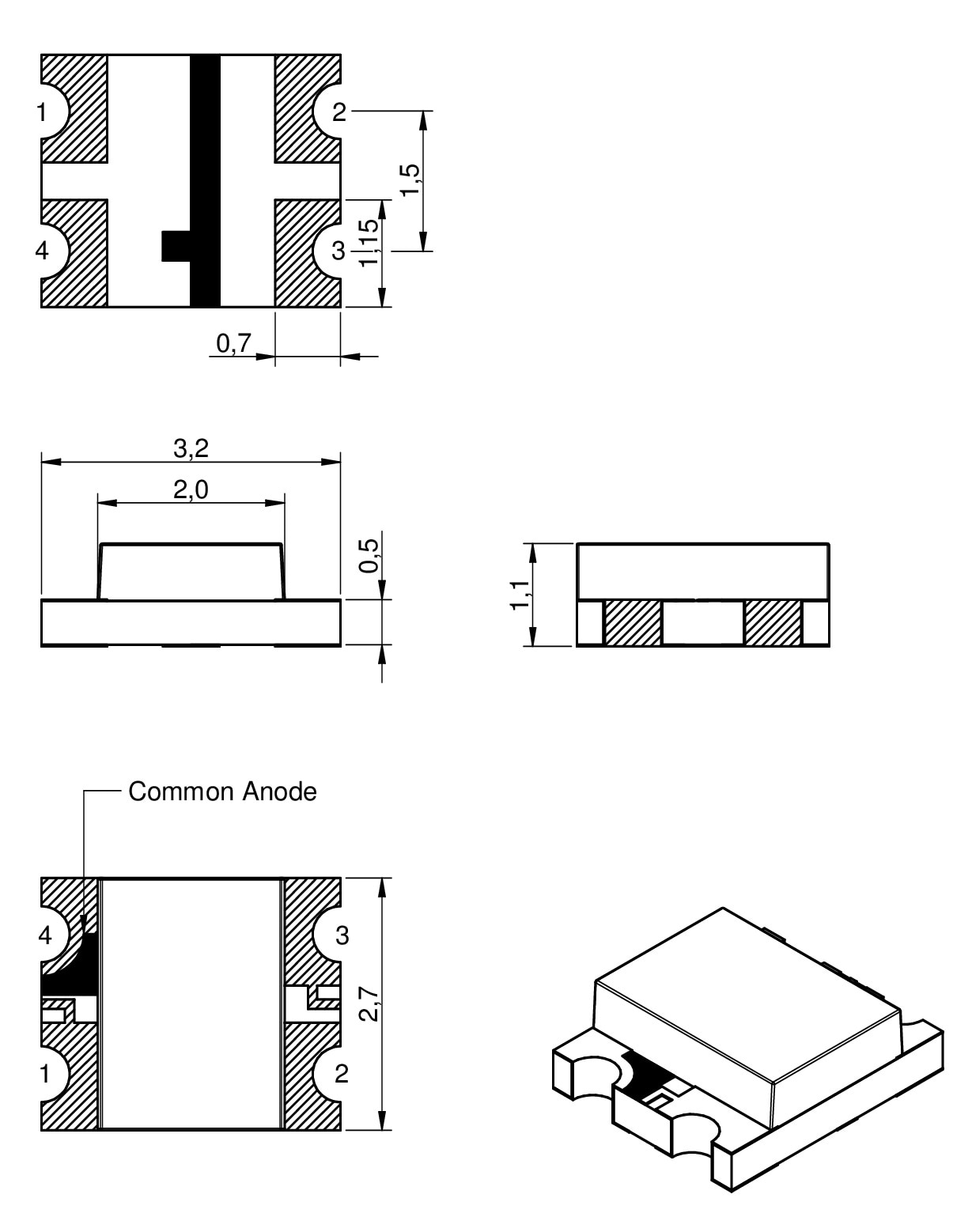

	150121M153000	Red & Green & Blue, 468 nm, 520 nm	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SFCD (rev22c).IntLib \| 218 KB CDS Cadence_WL-SFCD (rev19a).zip \| 893.8 KB EAG Eagle_WL-SFCD (rev22a).lbr \| 32.8 KB CAD files ZIP IGS Download_IGS_WL-SFCD-1210 (rev1).igs \| 782.6 KB STP Download_STP_WL-SFCD-1210 (rev1).stp \| 161.6 KB Electric models ZIP PSP PSpice_WL-SFCD (rev22a).zip \| 3.7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]80 mcd	Luminous Intensity (Green) [typ.]180 mcd	Luminous Intensity (Red) [typ.]70 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED – Top View

Demoboard Visible LEDs
