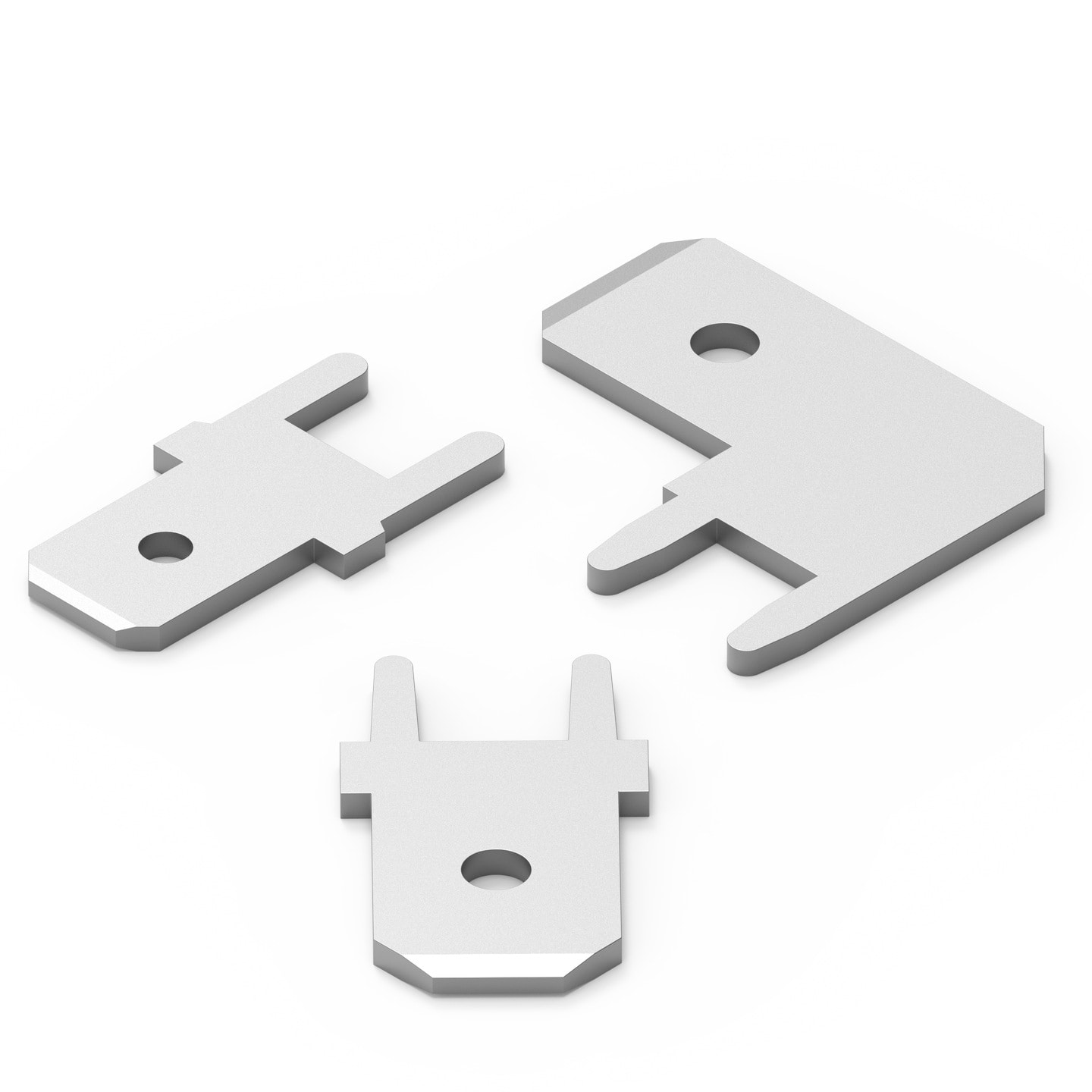

WA-MTAB Mounting Tabs. Operating Temperature -55 °C up to +150 °C.

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Brass
Surface	Tin
Type	Right Angled; Vertical

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Pitch(mm)	Type	Gender	Blade Design	Samples
	7471212	5 mm, Vertical, Male	Downloads7 files EDA models: Components ZIP ALT Altium_WA-MTAB (rev22a).IntLib \| 117 KB CDS Cadence_WA-MTAB (rev25a).zip \| 137 KB EAG Eagle_WA-MTAB (rev21a).lbr \| 21.3 KB KIC KiCad_WA-MTAB (rev26a).zip \| 41.9 KB CAD files ZIP 3D 3D_7471212 (rev1).pdf \| 29.3 KB IGS Download_IGS_7471212 (rev1).igs \| 183.9 KB STP Download_STP_7471212 (rev1).stp \| 52.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pitch5 mm	TypeVertical	GenderMale	Blade Design4.8 mm
	7471287	5.08 mm, Vertical, Male	Downloads6 files EDA models: Components ZIP ALT Altium_WA-MTAB (rev22a).IntLib \| 117 KB CDS Cadence_WA-MTAB (rev25a).zip \| 137 KB EAG Eagle_WA-MTAB (rev21a).lbr \| 21.3 KB KIC KiCad_WA-MTAB (rev26a).zip \| 41.9 KB CAD files ZIP IGS Download_IGS_7471287 (rev1).igs \| 168.4 KB STP Download_STP_7471287 (rev1).stp \| 52.8 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pitch5.08 mm	TypeVertical	GenderMale	Blade Design6.35 mm
	7474966	5.08 mm, Right Angled, Male	Downloads7 files EDA models: Components ZIP ALT Altium_WA-MTAB (rev22a).IntLib \| 117 KB CDS Cadence_WA-MTAB (rev25a).zip \| 137 KB EAG Eagle_WA-MTAB (rev21a).lbr \| 21.3 KB KIC KiCad_WA-MTAB (rev26a).zip \| 41.9 KB CAD files ZIP 3D 3D_7474966 (rev1).pdf \| 29.5 KB IGS Download_IGS_7474966 (rev1).igs \| 176 KB STP Download_STP_7474966 (rev1).stp \| 55.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pitch5.08 mm	TypeRight Angled	GenderMale	Blade Design6.35 mm
