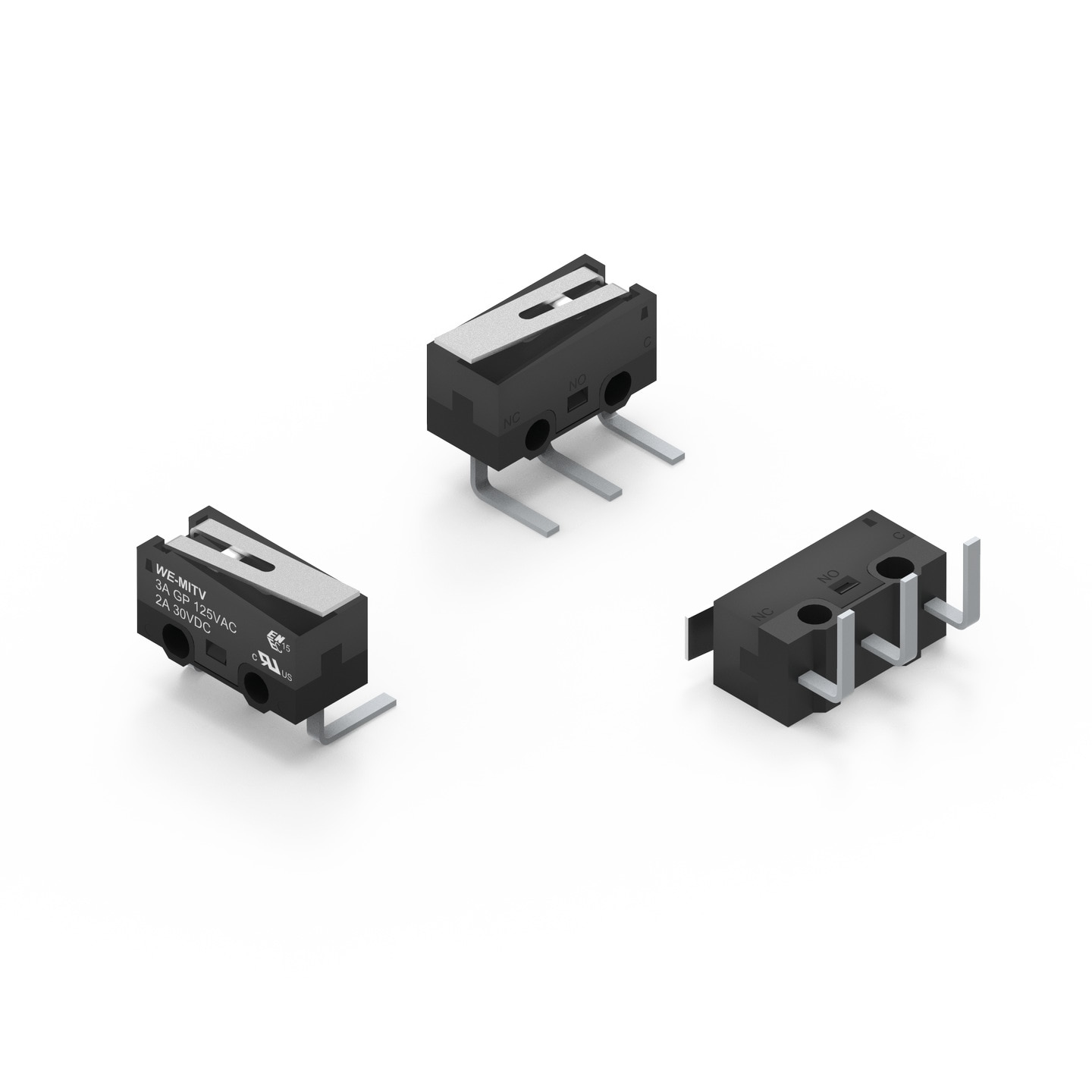

WS-MITV THT Terminal with Lever, Right Angle Operation Micro Switch, 12.8 x 5.8 mm

WS-MITV THT Terminal with Lever, Right Angle Operation Micro Switch, 12.8 x 5.8 mm
Material Properties
Actuator MaterialPBT
Actuator Flammability RatingUL94 V-0
Frame MaterialPBT
Frame Flammability RatingUL94 V-0
Moveable Contact MaterialSilver
Stationary Contact MaterialSilver
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Electrical Properties
Contact Resistance Initial30 mΩ
Contact Resistance After Life Test1 Ω
RISO100 MΩ
Mechanical Properties
Electrical Life10000 Cycles
SchematicSPDT
Over travel0.55 mm
Movement Differential0.5 mm
General Information
Operating Temperature-40 °C up to +85 °C
Packaging Properties
PackagingTray
Certification
UL ApprovalE483308
ENEC 15 ApprovalENEC-03305
