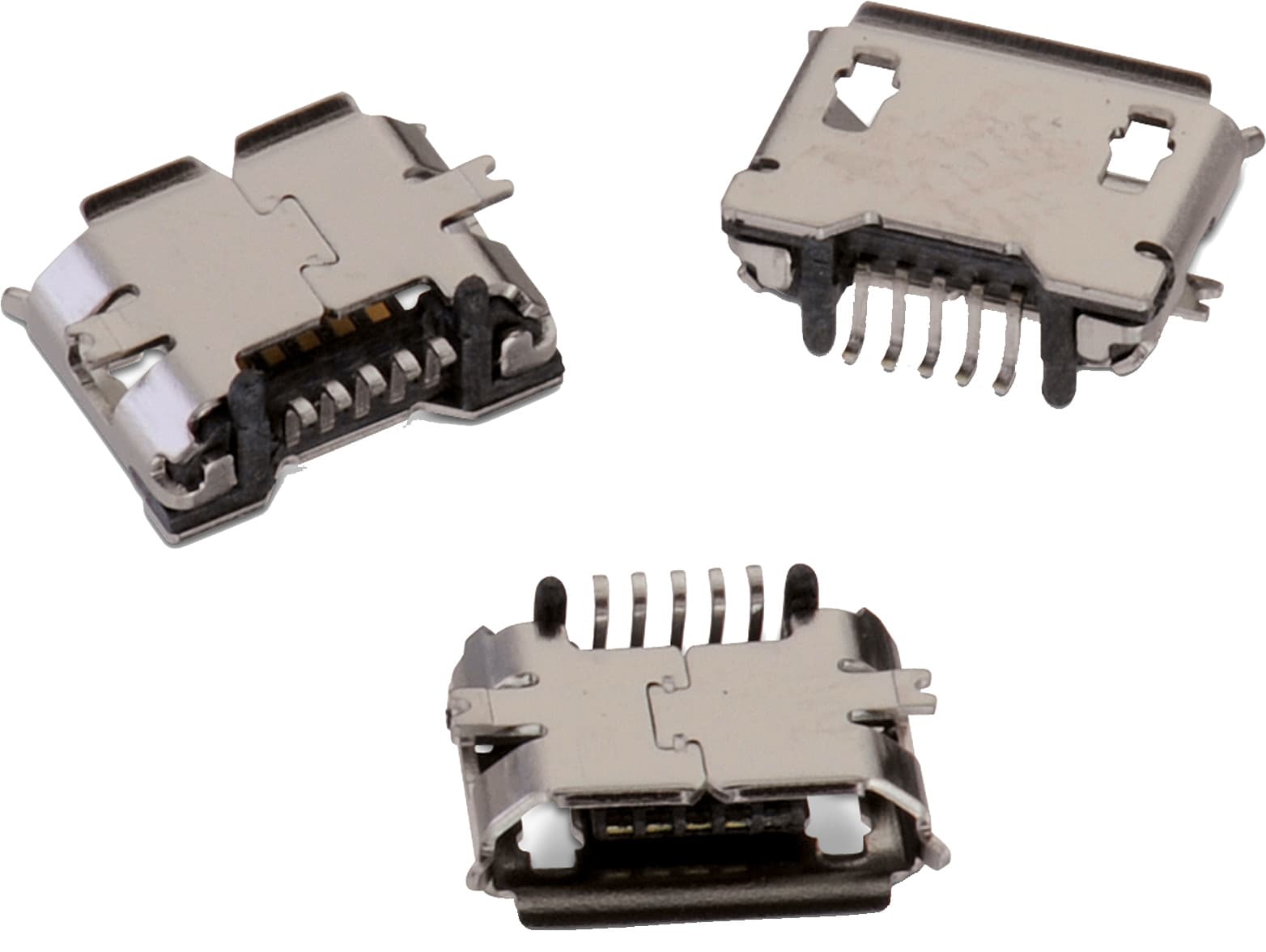

WR-COM Micro USB 2.0 SMT Type B Horizontal 5 Contacts

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Stainless Steel
Shielding Plating	Nickel

General Information
Operating Temperature	-40 up to +105 °C
Compliance	RoHS

	Order Code	Datasheet	Downloads	Application	Interface Type	Type	Gender	Pins	Mount	I_R (A)	Working Voltage (V (AC))	Packaging	Design Kit	Samples
	629105136821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev22b).IntLib \| 11.3 MB CDS Cadence_WR-COM_USB (rev22a).zip \| 53.8 MB EAG Eagle_WR-USB (rev22c).lbr \| 402.6 KB CAD files ZIP 3D 629105136821_1 (rev1).pdf \| 179.8 KB IGS 629105136821 (rev1).igs \| 2.6 MB STP 629105136821 (rev1).stp \| 953.4 KB Download all 6 files as zip archive ZIP	Micro USB 2.0	Type B	Horizontal	Receptacle	5	SMT	1	30	Tape and Reel	612690 614001
