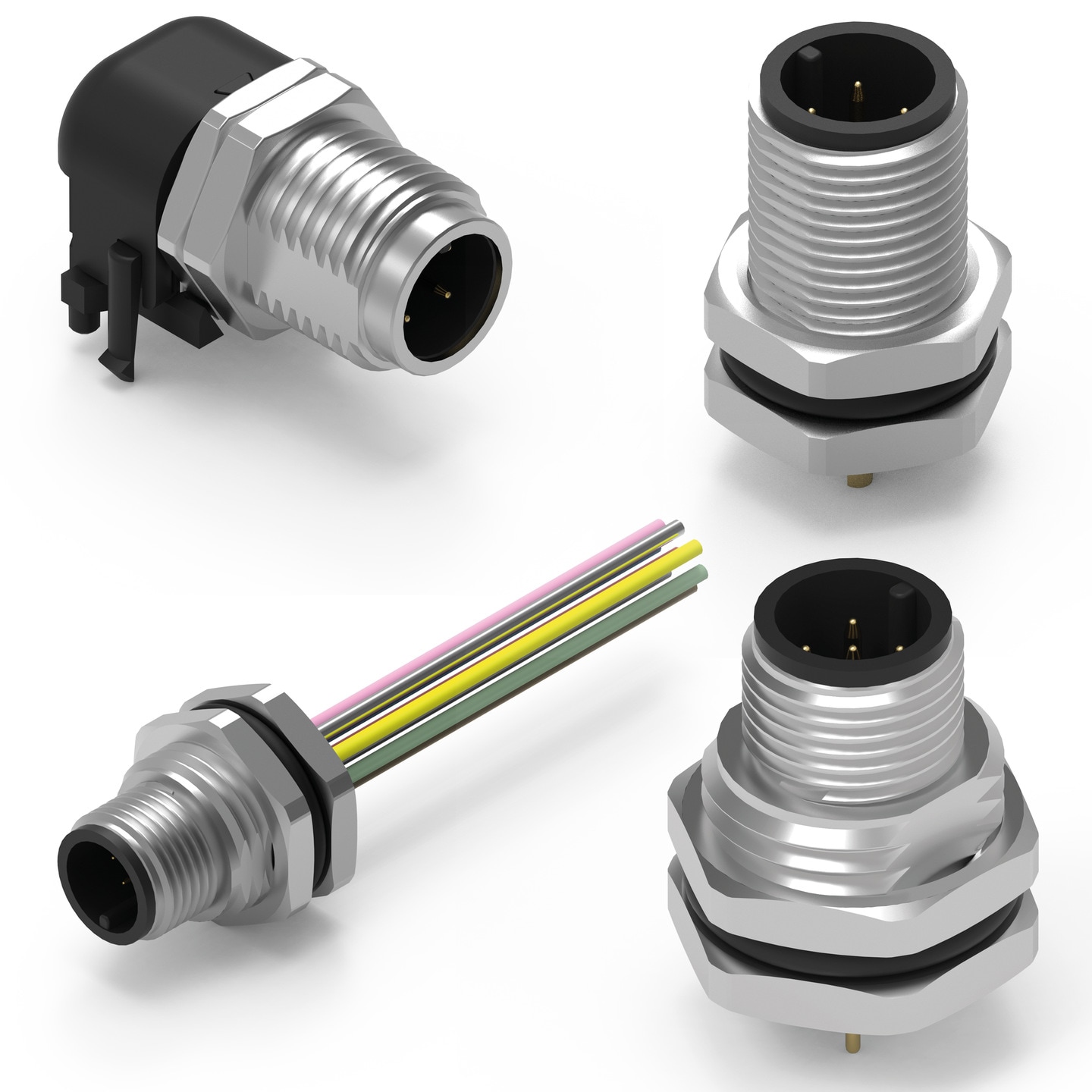

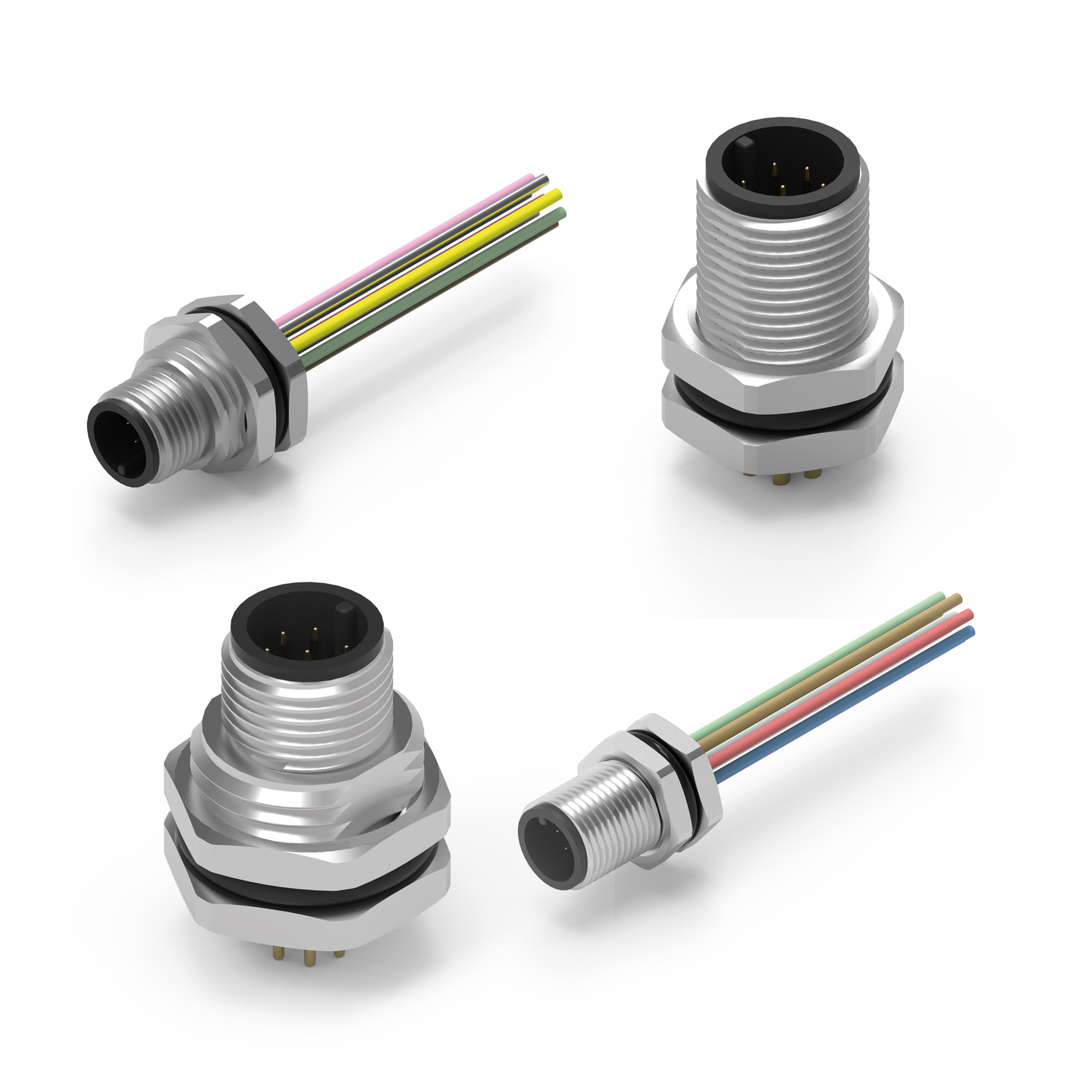

WR-CIRCM12 Screw Mating Panel Male Metal Shell

Size	Dimensions	Mount
M12 Panel Cut Solder		Panel
PG9 Panel Cut Solder		Panel
M12 Panel Cut THT		-
EXT.M16 Panel Cut THT		Panel
PG9 Panel Cut THT		Cable
M12 Right-Angled THT		Cable
M12 Panel Cut Wires		Cable
EXT.M16 Panel Cut Wires		Panel
PG9 Panel Cut Wires		Cable

Characteristics

Properties
Rated Current: 2 A - 5 A
Working Voltage: 30 V - 250 V
Operating Temperature: -25 °C up to + 85 °C
Durability: 100 Mating cycles
Features
Several panel cuts available
IP68 rated connectors
Can work in harsh environments

Applications

Automation industry & control systems
Sensor’s connectivity
Building automation
Renewable energies

Products

All

M12 Panel Cut Solder

PG9 Panel Cut Solder

M12 Panel Cut THT

M16 Panel Cut THT

PG9 Panel Cut THT

M12 Right-Angled THT

M12 Panel Cut Wires

M16 Panel Cut Wires

PG9 Panel Cut Wires

Reset all

Filter article data

show article in 9 product lines

article in 9 product lines

Reset all

Order Code	Datasheet	Manual	Downloads	Status	Polarity	Gender	I_R(A)	Working Voltage(V)	Withstanding Voltage(V (AC))	Packaging	Design Kit
643150100304	4, Male, 5 A	Manual	Downloads3 files CAD files ZIP 3D 3D_643150100304 (rev1).pdf \| 1.2 MB IGS IGS_643150100304 (rev1).igs \| 3.4 MB STP STP_643150100304 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	PackagingTray	Design Kit –
643150100305	5, Male, 5 A	Manual	Downloads3 files CAD files ZIP 3D 3D_643150100305 (rev1).pdf \| 1.2 MB IGS IGS_643150100305 (rev1).igs \| 3.3 MB STP STP_643150100305 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643150100308	8, Male, 2 A	Manual	Downloads3 files CAD files ZIP 3D 3D_643150100308 (rev1).pdf \| 1.2 MB IGS IGS_643150100308 (rev1).igs \| 3.6 MB STP STP_643150100308 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	PackagingTray	Design Kit –
643150100604	4, Male, 5 A	Manual	Downloads3 files CAD files ZIP 3D 3D_643150100604 (rev1).pdf \| 1017.9 KB IGS IGS_643150100604 (rev1).igs \| 3.4 MB STP STP_643150100604 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	PackagingTray	Design Kit –
643150100605	5, Male, 5 A	Manual	Downloads3 files CAD files ZIP 3D 3D_643150100605 (rev1).pdf \| 1023.9 KB IGS IGS_643150100605 (rev1).igs \| 3.3 MB STP STP_643150100605 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643150100608	8, Male, 2 A	Manual	Downloads3 files CAD files ZIP 3D 3D_643150100608 (rev1).pdf \| 1 MB IGS IGS_643150100608 (rev1).igs \| 3.6 MB STP STP_643150100608 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	PackagingTray	Design Kit –
643250100304	4, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643250100304 (rev1).pdf \| 1.2 MB IGS IGS_643250100304 (rev1).igs \| 3.4 MB STP STP_643250100304 (rev1).stp \| 4 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	PackagingTray	Design Kit –
643250100305	5, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643250100305 (rev1).pdf \| 1.2 MB IGS IGS_643250100305 (rev1).igs \| 3.3 MB STP STP_643250100305 (rev1).stp \| 3.9 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643250100308	8, Male, 2 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643250100308 (rev1).pdf \| 1.2 MB IGS IGS_643250100308 (rev1).igs \| 3.6 MB STP STP_643250100308 (rev1).stp \| 4 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	PackagingTray	Design Kit –
643250100604	4, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643250100604 (rev1).pdf \| 1 MB IGS IGS_643250100604 (rev1).igs \| 3.4 MB STP STP_643250100604 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	PackagingTray	Design Kit –
643250100608	8, Male, 2 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643250100608 (rev1).pdf \| 1 MB IGS IGS_643250100608 (rev1).igs \| 3.6 MB STP STP_643250100608 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	PackagingTray	Design Kit –
643250100605	5, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643250100605 (rev1).pdf \| 1 MB IGS IGS_643250100605 (rev1).igs \| 3.4 MB STP STP_643250100605 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643452100304	4, Male, 2 A	Manual	Downloads3 files CAD files ZIP 3D 643452100304_3D (rev1).pdf \| 1.3 MB IGS 643452100304 (rev1).igs \| 3.4 MB STP 643452100304 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current2 A	Working Voltage250 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643452100305	5, Male, 5 A	Manual	Downloads3 files CAD files ZIP 3D 643452100305_3D (rev1).pdf \| 1.2 MB IGS 643452100305 (rev1).igs \| 3.4 MB STP 643452100305 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643452100604	4, Male, 5 A	Manual	Downloads3 files CAD files ZIP 3D 643452100604_3D (rev1).pdf \| 1 MB IGS 643452100604 (rev1).igs \| 3.5 MB STP 643452100604 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	PackagingTray	Design Kit –
643452100605	5, Male, 5 A	Manual	Downloads3 files CAD files ZIP 3D 643452100605_3D (rev1).pdf \| 1 MB IGS 643452100605 (rev1).igs \| 3.4 MB STP 643452100605 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643452100608	8, Male, 2 A	Manual	Downloads2 files CAD files ZIP 3D 643452100608_3D (rev1).pdf \| 1.1 MB IGS 643452100608 (rev1).igs \| 3.8 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	PackagingTray	Design Kit –
643452100308	8, Male, 2 A	Manual	Downloads3 files CAD files ZIP 3D 643452100308_3D (rev1).pdf \| 1.3 MB IGS 643452100308 (rev1).igs \| 3.8 MB STP 643452100308 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	PackagingTray	Design Kit –
643250100404	4, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 643250100404_3D (rev1).pdf \| 1 MB IGS 643250100404 (rev1).igs \| 3.4 MB STP 643250100404 (rev1).stp \| 1.7 MB Download all 6 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	–	Design Kit –
643250100405	5, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 643250100405_3D (rev1).pdf \| 1 MB IGS 643250100405 (rev1).igs \| 3.3 MB STP 643250100405 (rev1).stp \| 1.7 MB Download all 6 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	–	Design Kit –
643250100408	8, Male, 2 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 643250100408_3D (rev1).pdf \| 1.1 MB IGS 643250100408 (rev1).igs \| 3.5 MB STP 643250100408 (rev1).stp \| 1.8 MB Download all 6 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	–	Design Kit –
643270100304	4, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643270100304 (rev1).pdf \| 1.8 MB IGS IGS_643270100304 (rev1).igs \| 9.9 MB STP STP_643270100304 (rev1).stp \| 3.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	PackagingTray	Design Kit 612690
643270100305	5, Male, 5 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643270100305 (rev1).pdf \| 1.9 MB IGS IGS_643270100305 (rev1).igs \| 10.3 MB STP STP_643270100305 (rev1).stp \| 3.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	PackagingTray	Design Kit –
643270100308	8, Male, 2 A	Manual	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CIRCM12 (rev25a).IntLib \| 12.4 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev25a).lbr \| 313.5 KB CAD files ZIP 3D 3D_643270100308 (rev1).pdf \| 2 MB IGS IGS_643270100308 (rev1).igs \| 10.6 MB STP STP_643270100308 (rev1).stp \| 3.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	PackagingTray	Design Kit –
643452100404	4, Male, 5 A	–	Downloads3 files CAD files ZIP 3D 643452100404_3D (rev1).pdf \| 1.1 MB IGS 643452100404 (rev1).igs \| 3.6 MB STP 643452100404 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity4	GenderMale	Rated Current5 A	Working Voltage250 V	Withstanding Voltage1400 V (AC)	–	Design Kit –
643452100405	5, Male, 5 A	–	Downloads3 files CAD files ZIP 3D 643452100405_3D (rev1).pdf \| 1.1 MB IGS 643452100405 (rev1).igs \| 3.6 MB STP 643452100405 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity5	GenderMale	Rated Current5 A	Working Voltage60 V	Withstanding Voltage1000 V (AC)	–	Design Kit –
643452100408	8, Male, 2 A	–	Downloads3 files CAD files ZIP 3D 643452100408_3D (rev1).pdf \| 1.2 MB IGS 643452100408 (rev1).igs \| 3.9 MB STP 643452100408 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity8	GenderMale	Rated Current2 A	Working Voltage30 V	Withstanding Voltage650 V (AC)	–	Design Kit –

Circular Connectors M12

Be Connected. No Matter the Conditions.

Circular Connectors M12

Be Connected. No Matter the Conditions.

Discover high-quality circular connectors designed for demanding environments. With its ingress protection, our connectors ensure reliable connections for applications such as fieldbus, actuators/sensors, and robotics.

With its PCB, cable, and solder variants, along with additional service options, our versatile M12 connectors allow you to tailor your connections to your exact requirements, enabling seamless integration and optimal performance. Ready to Design-In? Take advantage of personal technical support and free samples ex-stock.

Learn more

alttext yt_img_for_code_a3Cu7Y50d6U.jpg 1709210921

Circular Connectors Portfolio

Discover our M12 circular connector portfolio

Panel Connector

The portfolio f manel mouted M12 A-coded circular connectors includes:

THT soldered male & female PCB versions as horizontal and vertical types
Panel Mount Cable solutions with solder buckets or pre-wired solutions
All parts available as metal & plastic types with
panel cuts: PG9, M12 and M16 and
Polarities: 4, 5 and 8
IP68 ingress protection

See products

Cable Assembly

M12 A-coded cable assemblies available as single ended solution:

straight and angled
male & female
metal and plastic coupling nuts
metal coupling with shielding
Polarities: 4, 5 and 8
IP67 ingress protection
2000 mm cable length

Custom cable solutions available on request

See products

Field Attachable Solder

Field attachable solder bucket solutions for highest flexibility in your application.

Field attachable
Flexible use for your application
Male & female
Metal and plastic coupling nuts
Polarities: 4, 5 and 8
IP68 ingress protection

See products

Applications

M12 A-Coded in Ethernet-over-Twisted-Pair Physical Layer

Ethernet over Twisted Pair (EOTP) is one of the most important physical layers for Ethernet and a sizeable amount of industrial protocols work on the Ethernet data link and physical layers standards. However, the M12 are not the native connectors upon which the EOTP interface has been developed, but can be used in different adaptations like:

10BASE-T
100BASE-T
Higher BASE-T

M12 A-Coded in IO-Link Physical Layer

IO-Link is a standardized digital data transfer and power supply protocol between a programmable hub and sensors or actuators peripherals. M12 A-Coded connectors can be used for:

Class A with a 3-wire-cable and
Class B with a 5-wire-cable

M12 A-Coded in USB 2.0 Physical Layer

The Universal Serial Bus is one of the most common connectivity layer on the market. USB in its 2.0 revision can be used as a power supply and high-speed data bus. M12 A-Coded circular connectors can be used to offer a mechanically sturdier ending to a USB 2.0 cable.
