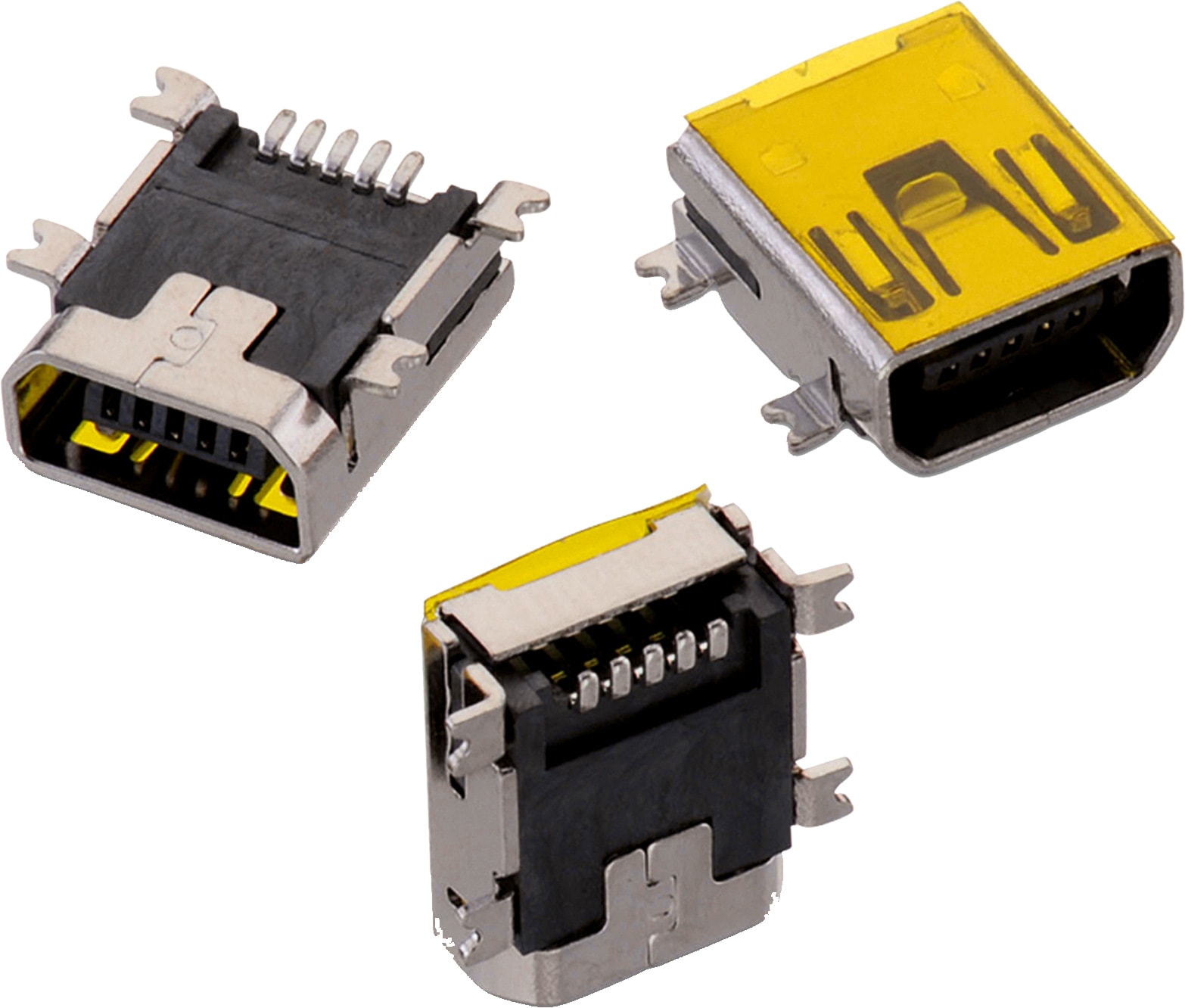

WR-COM Mini USB 2.0 Type AB SMT Horizontal 5 Contacts

Kind Properties
Durability 1 500 Mating cycles
Connector Type Mini USB
Gender Receptacle
Type Horizontal
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Cover Material Brass
Cover Plating Tin
Contact Material Copper Alloy
Contact Plating Selective Gold
Contact Type Stamped
Shielding Material Brass
Shielding Plating Nickel
General Information
Operating Temperature -40 up to +105 °C
Electrical Properties
Working Voltage 30 V (AC)
Withstanding Voltage 750 V (AC)
Contact Resistance 20 mΩ

Products

Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount Working Voltage
(V (AC))
Packaging Design Kit Samples
651305142821
STE 3D ALT EAG IGS CAD Mini USB Type AB Horizontal Receptacle 5 SMT 30 Tape and Reel 614001
Order Code SPEC
651305142821
Samples
Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount Working Voltage
(V (AC))
Packaging Design Kit Samples
