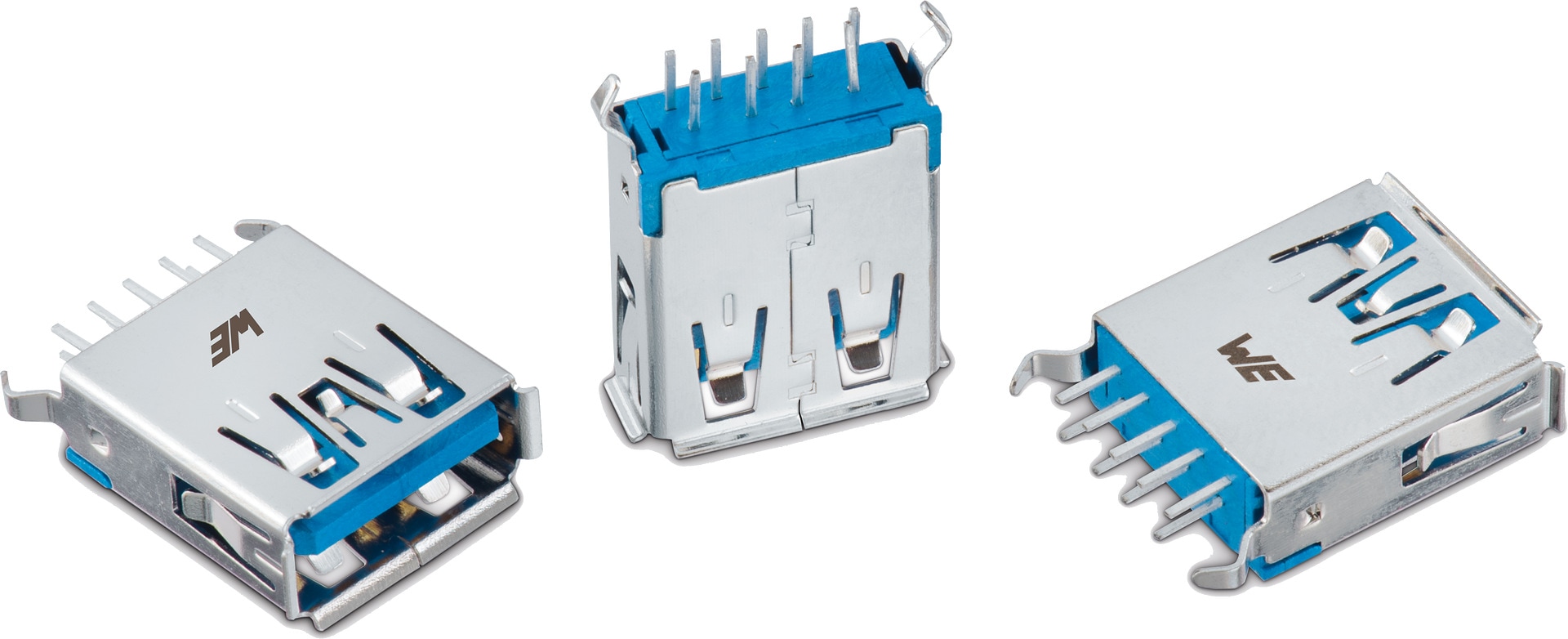

WR-COM USB 3.0 Type A Vertical THT

Kind Properties
Durability 5 000 Mating cycles
Quality Class 5 000 Mating cycles
Connector Type USB
Gender Receptacle
Type Vertical
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Color Blue
Contact Material Copper Alloy
Contact Plating Selective Gold
Contact Type Stamped
Shielding Material INOX Steel
General Information
Operating Temperature -20 up to +85 °C
Compliance RoHS
Electrical Properties
IR 1 1.8 A
Working Voltage 30 V (AC)
Withstanding Voltage 100 V (AC)
Contact Resistance 50 mΩ

Products

Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount IR 1
(A)
Working Voltage
(V (AC))
Packaging Mates with Design Kit Samples
692121430000
STE 3D ALT ALT EAG IGS CAD USB 3.0 Type A Vertical Receptacle 9 THT 1.8 30 Tray 692901100001
692902100001
WR-COM USB 3.0 Cable Assemblies
WR-COM USB 3.0 Type A SMT Plug with Clip
612690
614001
Order Code SPEC
692121430000
Samples
Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount IR 1
(A)
Working Voltage
(V (AC))
Packaging Mates with Design Kit Samples
