WS-ROTV, ROTU, ROSV Segment Wheel / Spindle for 10x10 mm Rotary Switches

General Information
Operating Temperature	-40 °C up to +85 °C
Ingress Protection Code	None

Packaging Properties
Packaging	Bulk

Products

Order Code	Datasheet	Downloads	Status	Fig.	Color	Design Kit
714287050	SPEC	3 files CAD files ZIP 3D 3D_714287050 (rev1).pdf \| 41.6 KB IGS igs_714287050 (rev1).igs \| 424 KB STP stp_714287050 (rev1).stp \| 71.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Blue	499001
714281050	SPEC	3 files CAD files ZIP 3D 3D_714281050 (rev1).pdf \| 41.5 KB IGS igs_714281050 (rev1).igs \| 424 KB STP stp_714281050 (rev1).stp \| 71.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Black	499001
714286050	SPEC	3 files CAD files ZIP 3D 3D_714286050 (rev1).pdf \| 41.6 KB IGS igs_714286050 (rev1).igs \| 424 KB STP stp_714286050 (rev1).stp \| 71.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Red	499001
714284050	SPEC	3 files CAD files ZIP 3D 3D_714284050 (rev1).pdf \| 41.6 KB IGS igs_714284050 (rev1).igs \| 424 KB STP stp_714284050 (rev1).stp \| 71.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Grey	499001
714284060	SPEC	2 files CAD files ZIP IGS 71428x050 (rev1).igs \| 1 MB STP 71428x050 (rev1).stp \| 307.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Grey	499001

	Order Code	Datasheet
	714287050	SPEC
	714281050	SPEC
	714286050	SPEC
	714284050	SPEC
	714284060	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Fig.	Color	Design Kit	Samples

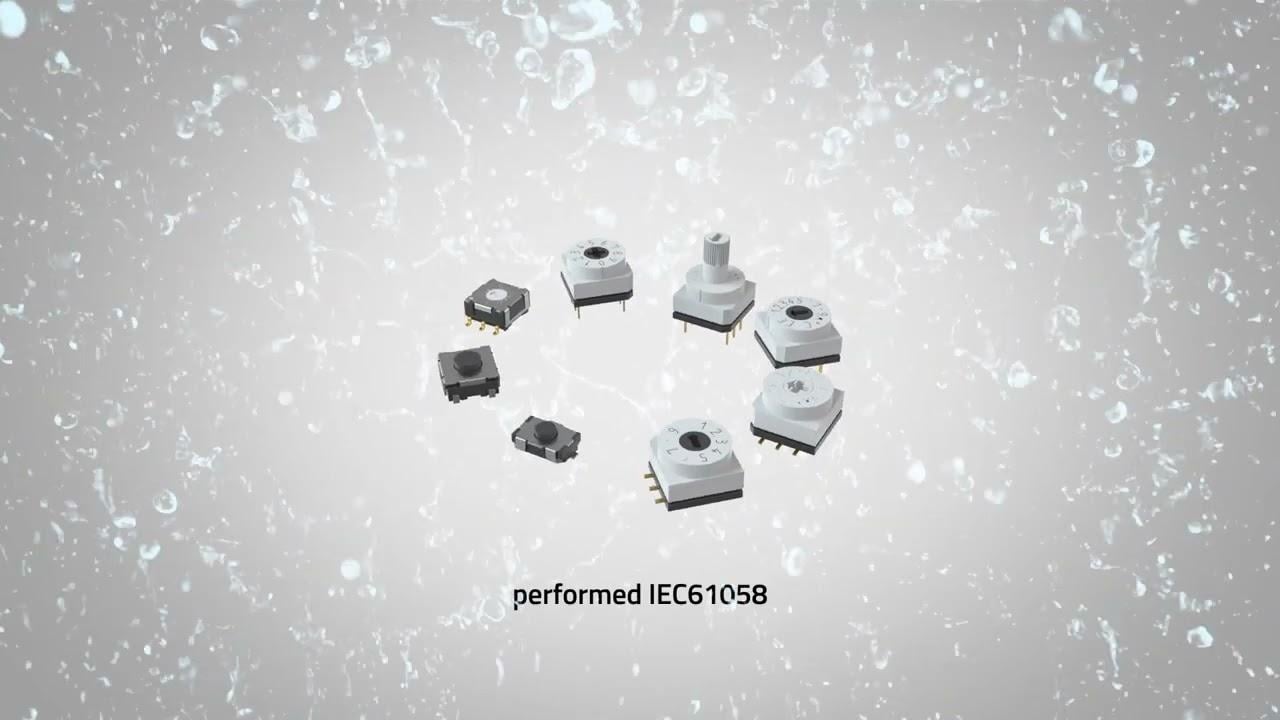

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
