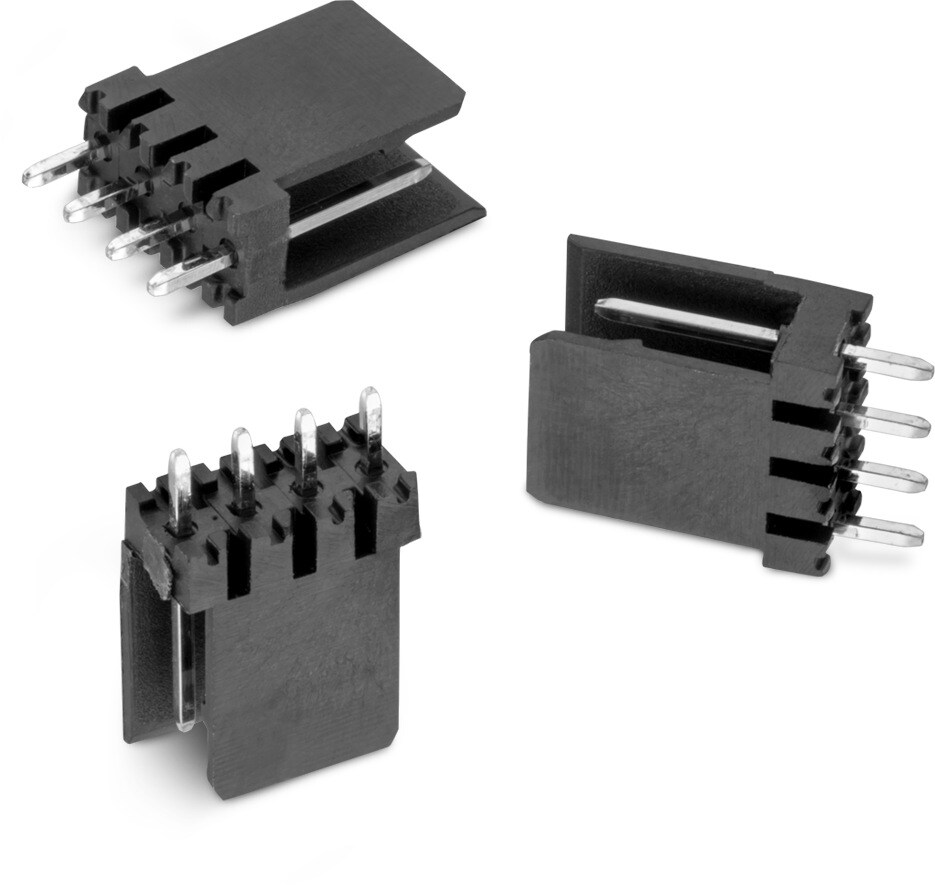

WR-WTB 2.54 mm Male Vertical Shrouded Header

Kind Properties
Pitch2.54 mm
GenderMale
TypeVertical
Material Properties
Insulator MaterialPA46
Insulator Flammability RatingUL94 V-0
ColorBlack
Contact MaterialPhosphor Bronze
Contact PlatingTin
General Information
Operating Temperature-40 up to +125 °C
ComplianceRoHS
IR3 A
Working Voltage50 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
Packaging Samples
66100211622SPEC
6 files 2 2.54 Male Vertical THT 3 50 PCB 20 max. 4.78 Box
66100311622SPEC
6 files 3 2.54 Male Vertical THT 3 50 PCB 20 max. 7.32 Box
66100421622SPEC
3 files 4 2.54 Male 3 20 max. Box
66100411622SPEC
6 files 4 2.54 Male Vertical THT 3 50 PCB 20 max. 9.86 Box
66100511622SPEC
6 files 5 2.54 Male Vertical THT 3 50 PCB 20 max. 12.4 Box
66100621622SPEC
3 files 6 2.54 Male 3 20 max. Box
66100821622SPEC
6 files 8 2.54 Male 3 20 max. Box
66100811622SPEC
6 files 8 2.54 Male Vertical THT 3 50 PCB 20 max. 20.02 Box
66101021622SPEC
6 files 10 2.54 Male 3 20 max. Box
66101011622SPEC
6 files 10 2.54 Male Vertical THT 3 50 PCB 20 max. 25.1 Box
66101221622SPEC
3 files 12 2.54 Male 3 20 max. Box
66101421622SPEC
6 files 14 2.54 Male 3 20 max. Box
66101621622SPEC
6 files 16 2.54 Male 3 20 max. Box
66102021622SPEC
3 files 20 2.54 Male 3 20 max. Box
66100611622SPEC
3 files 2.54 Male 3 20 max. Box
66100711622SPEC
3 files 2.54 Male 3 20 max. Box
66100911622SPEC
3 files 2.54 Male 3 20 max. Box
66101211622SPEC
3 files 2.54 Male 3 20 max. Box
66101411622SPEC
3 files 2.54 Male 3 20 max. Box
66101611622SPEC
3 files 2.54 Male 3 20 max. Box
