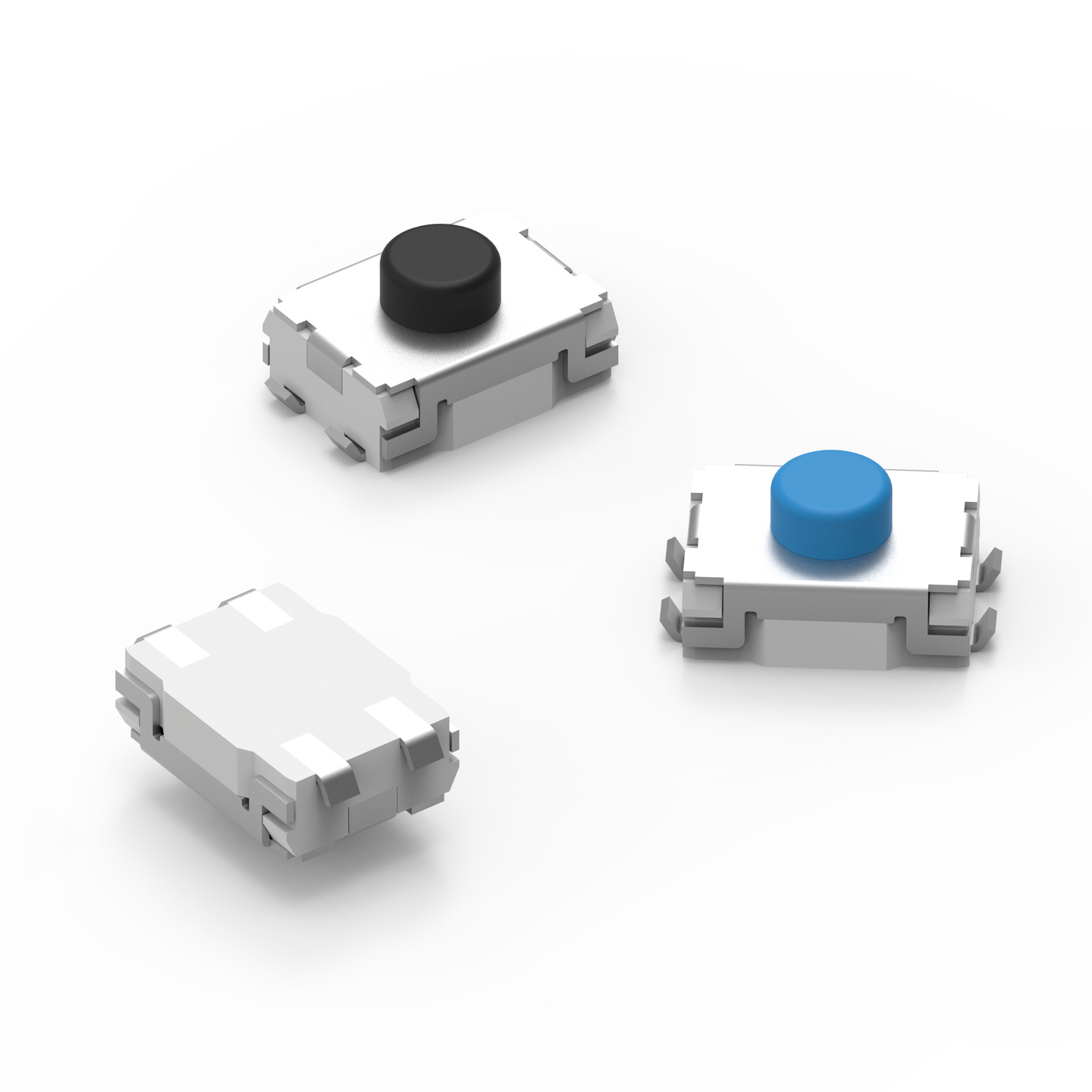

WS-TASV J-Bend SMT Tact Switch 4.7x3.5 mm NEW

Material Properties
Cover Material Stainless Steel
Mechanical Properties
Electrical Life 100000 Times; 300000 Times
Stroke 0.25 mm
Properties
Actuator Material LCP
Actuator Flammability Rating UL94 V-0
Actuator Color Black; Blue
Frame Material LCP
Frame Flammability Rating UL94 V-0
Frame Color White
Contact Material Stainless Steel
Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver
VR 15 V (DC)
Contact Resistance Initial 100 mΩ
Contact Resistance After Life Test 2 Ω
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable No
Qty. 2500
General Information
Operating Temperature -40 up to +85 °C
Washable No
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Samples
434133025826
STE ALT EAG CAD IGS 2.5 260 Blue 2500
434163025816
STE ALT EAG CAD IGS 2.5 160 Black 2500
Order Code Data­sheet
434133025826
434163025816
Samples
Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Samples
