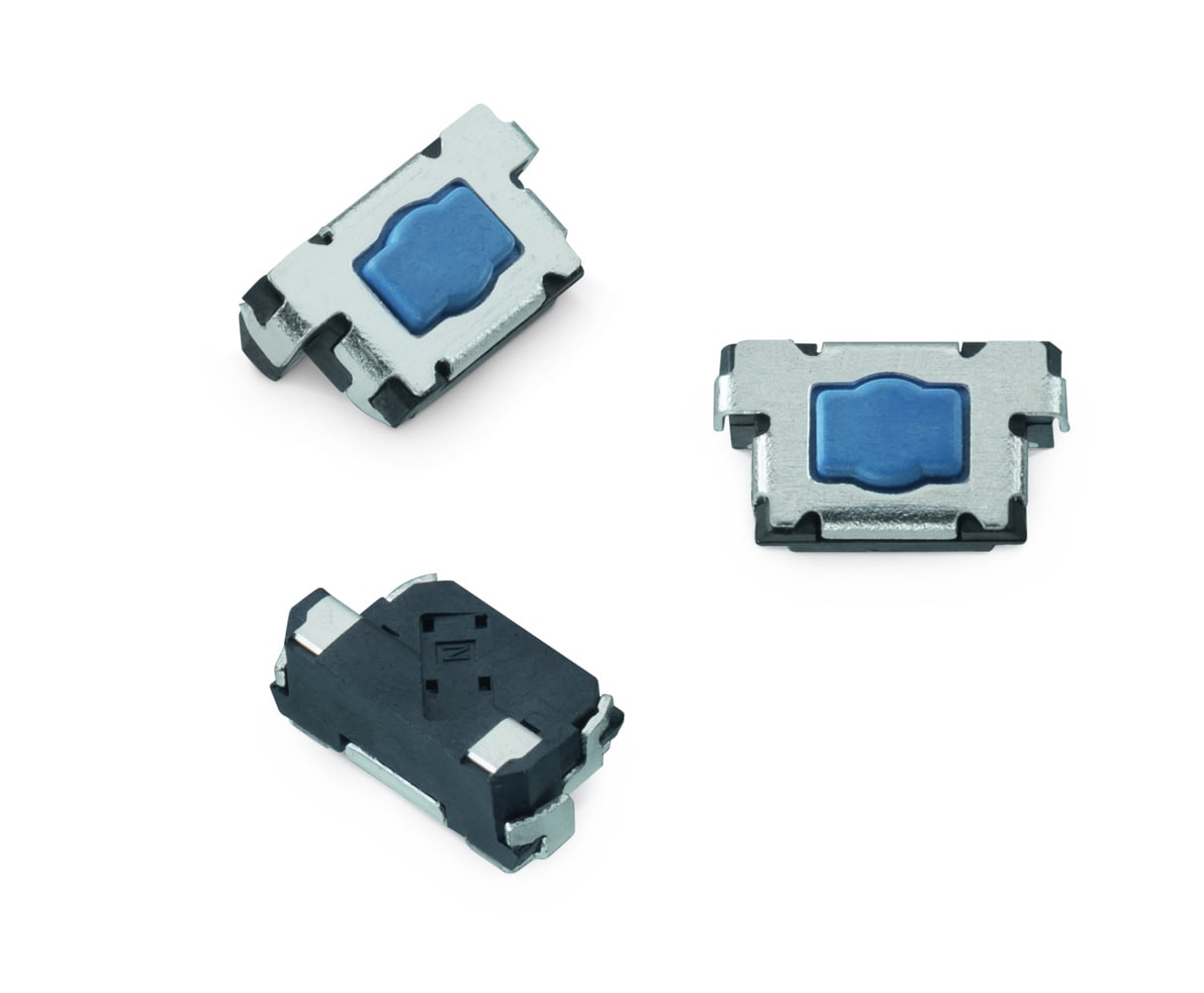

WS-TASU SMT Tact Switch 6.2x3.0 mm Mid-Mount

Material Properties
Actuator MaterialLCP
Actuator Flammability RatingUL94 V-0
Frame MaterialLCP
Frame Flammability RatingUL94 V-0
Contact PlatingSilver
Terminal PlatingSilver
Electrical Properties
IR20 mA
VR15 V (DC)
Contact Resistance Initial100 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Operation Force (Value)160 g
Electrical Life1000000 Cycles
General Information
Operating Temperature-40 up to +85 °C
WashableNo
Ingress Protection CodeNone
Packaging Properties
PackagingTape and Reel

Products

Order Code Data­sheet DownloadsH
(mm)
Operation Force (Value)
(g)
Electrical Life
(Cycles)
Actuator ColorPackaging UnitDesign Kit Samples
434381035816SPEC
5 files 3.5 160 1000000 Blue 2000499001
Order Code Data­sheet
434381035816SPEC
Samples
Order Code Data­sheet DownloadsH
(mm)
Operation Force (Value)
(g)
Electrical Life
(Cycles)
Actuator ColorPackaging UnitDesign Kit Samples

Tact Switches from Würth Elektronik eiSos

#TimetoSwitch

Tact Switches

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test. Polyimide tape or silicone rubber protect the switch even in tough environments. The switch range includes various high quality solutions like dip, rotary, detector, micro, slide, rocker switches and encoder. Available from stock. Samples free of charge.

Product Benefits:

  • IP67
  • Long lifetime
  • High durability
  • Corrosion resistant metal elements
  • Full load life cycle test
  • Tight tolerance due to automated production

The corrosion resistance of all metallic components was tested by a 48-hour salt-spray test.

The snap dome is made of stainless steel to ensure high reliability and reduced friction. The indicated switching cycles have been tested under full load.

Polyimide film provides protection against environmental influences and silicone inserts are used for harsh industrial environments.

The plastic material withstands five times reflow and has been tested for flammability according to UL.

Automated production reduces mechanical deviations and ensures high consistency of mechanical parameters.
