OverviewAll product unitsProduct unitOptoelectronic ComponentsProduct groupLEDsProduct familySignal LEDsTypeTOP LEDProduct seriesWL-SMTD SMT Mono-color TOP LED Diffused Dome

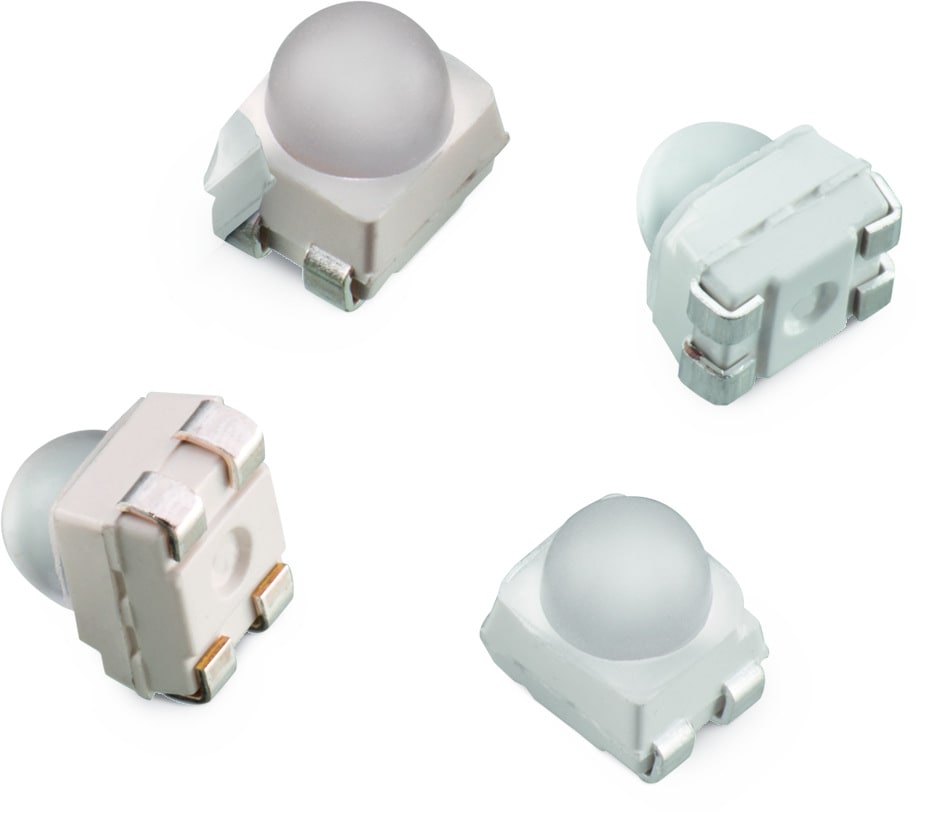

WL-SMTD SMT Mono-color TOP LED Diffused Dome

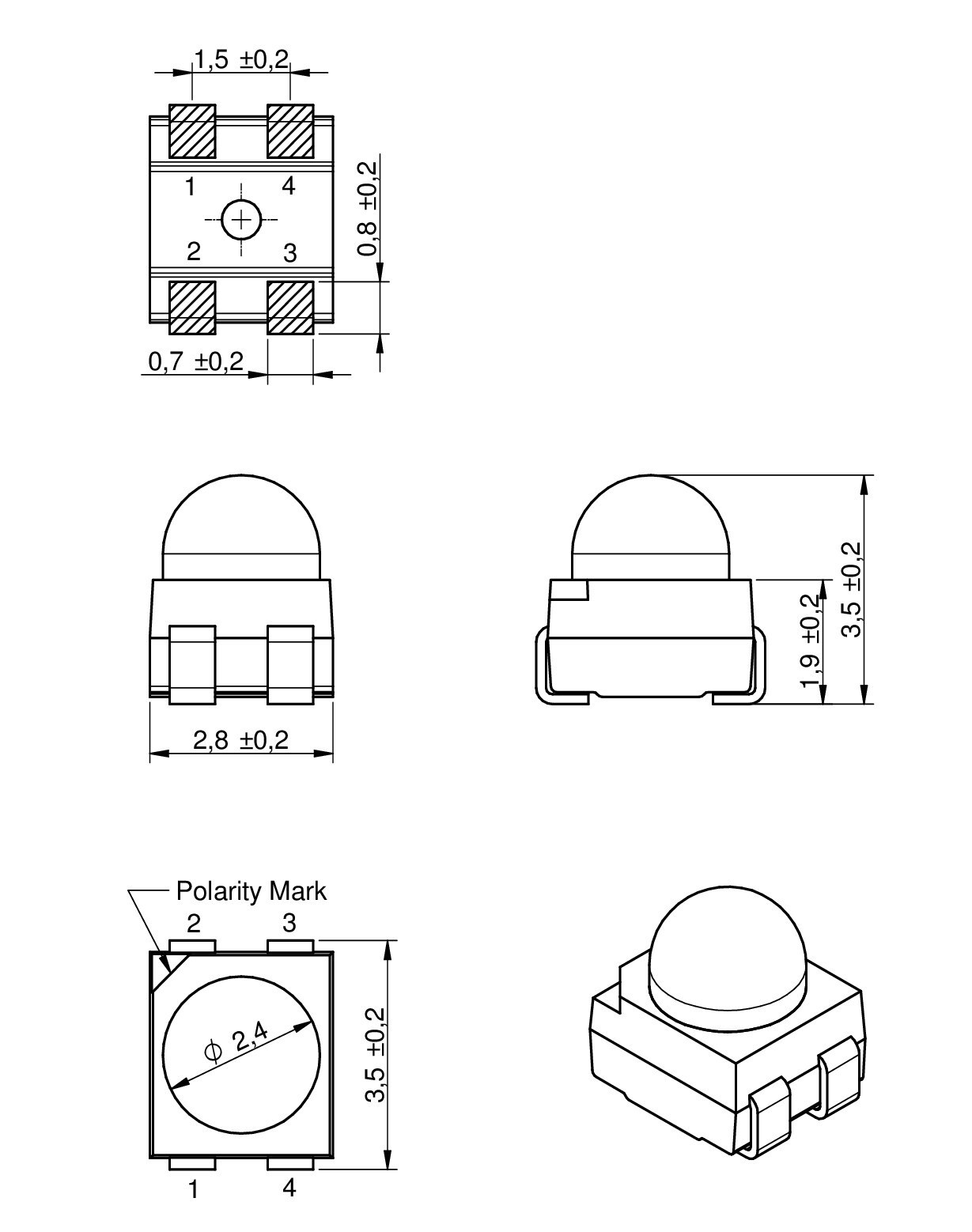

Size Dimen­sions 3DL
(mm)
W
(mm)
H
(mm)
Mount
3528 30° dome 3.5 2.8 3.5 SMT
3528 60° dome 3.5 2.8 3.25 SMT

Characteristics

  • Industry standard PLCC-4
  • High reliability LED package
  • High optical efficiency
  • Narrow viewing angle at 30°
  • Compatible with both IR soldering process

Applications

  • Traffic lights
  • Backlighting
  • For central console, cabin or push button
  • Signal and symbol luminary
  • Instrument panel backlighting
  • Navigation and audio system

Products

All
3528 30° dome
3528 60° dome
Order Code Data­sheet DownloadsλDom typ.
(nm)
Emitting ColorλPeak typ.
(nm)
IV typ.
(mcd)
VF typ.
(V)
Chip Technology50% typ.
(°)
Design Kit Samples
150141BS63140SPEC
6 files 470 Blue 465 6000 3.2 InGaN 30150151
150141BS66140SPEC
6 files 470 Blue 465 3500 3.2 InGaN 60
150141BS66130SPEC
6 files 470 Blue 465 3500 3.2 InGaN 60
150141BS63130SPEC
6 files 470 Blue 465 6000 3.2 InGaN 30
150141GS63140SPEC
6 files 520 Green 515 30000 3.2 InGaN 30150151
150141GS66140SPEC
6 files 520 Green 515 20000 3.2 InGaN 60
150141GS66130SPEC
6 files 520 Green 515 20000 3.2 InGaN 60
150141GS63130SPEC
6 files 520 Green 515 30000 3.2 InGaN 30
150141YS63140SPEC
6 files 590 Yellow 592 15000 2.4 AlInGaP 30150151
150141YS66140SPEC
6 files 590 Yellow 592 5300 2.4 AlInGaP 60
150141YS66130SPEC
6 files 590 Yellow 592 5300 2.4 AlInGaP 60
150141YS63130SPEC
6 files 590 Yellow 592 15000 2.4 AlInGaP 30
150141RS63140SPEC
6 files 620 Red 630 16000 2.4 AlInGaP 30150151
150141RS66140SPEC
6 files 620 Red 630 5500 2.4 AlInGaP 60
150141RS66130SPEC
25 files 620 Red 630 5500 2.4 AlInGaP 60
150141RS63130SPEC
6 files 620 Red 630 16000 2.4 AlInGaP 30
150141SS63140SPEC
6 files 630 Super Red 640 13000 2.4 AlInGaP 30150151
150141SS66140SPEC
6 files 630 Super Red 640 5200 2.4 AlInGaP 60
150141SS66130SPEC
6 files 630 Super Red 640 5200 2.4 AlInGaP 60
150141SS63130SPEC
6 files 630 Super Red 640 13000 2.4 AlInGaP 30
Order Code Data­sheet
150141BS63140SPEC
150141BS66140SPEC
150141BS66130SPEC
150141BS63130SPEC
150141GS63140SPEC
150141GS66140SPEC
150141GS66130SPEC
150141GS63130SPEC
150141YS63140SPEC
150141YS66140SPEC
150141YS66130SPEC
150141YS63130SPEC
150141RS63140SPEC
150141RS66140SPEC
150141RS66130SPEC
150141RS63130SPEC
150141SS63140SPEC
150141SS66140SPEC
150141SS66130SPEC
150141SS63130SPEC
Samples
Order Code Data­sheet DownloadsλDom typ.
(nm)
Emitting ColorλPeak typ.
(nm)
IV typ.
(mcd)
VF typ.
(V)
Chip Technology50% typ.
(°)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
