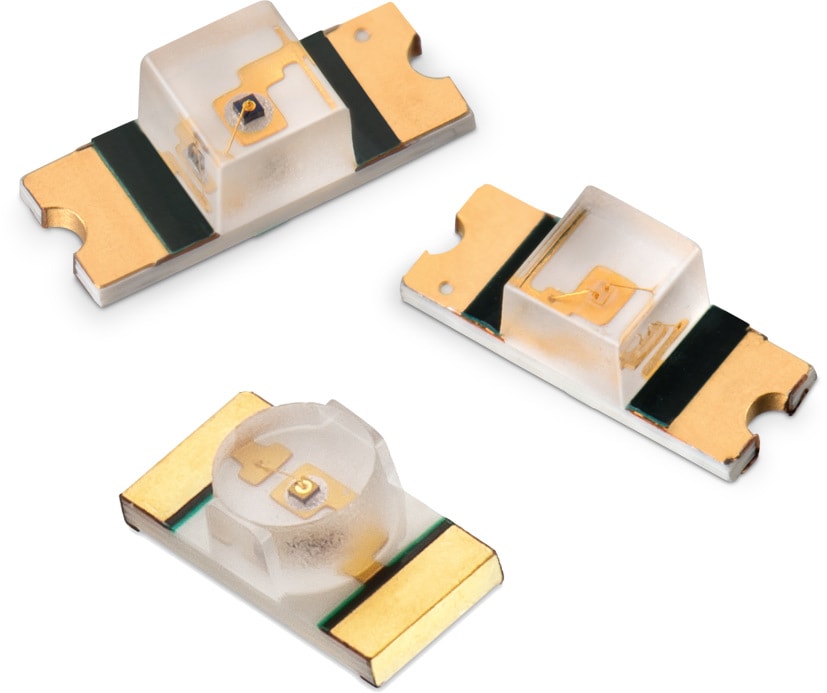

WL-SMRW SMT Mono-color Reverse mount Waterclear

Size L
(mm)
W
(mm)
H
(mm)
Mount

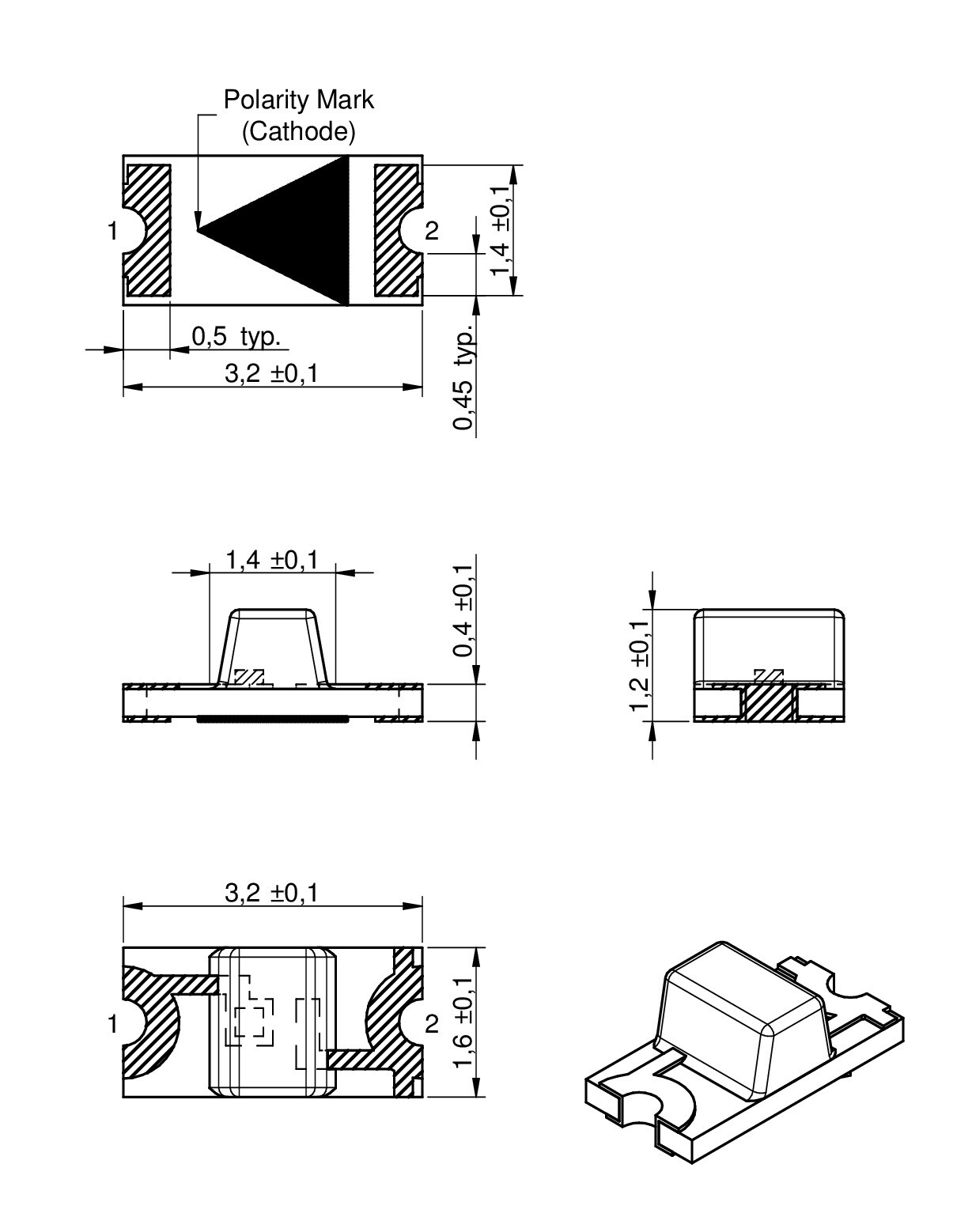

1206 rectangular 3.2 1.6 1.2 SMT

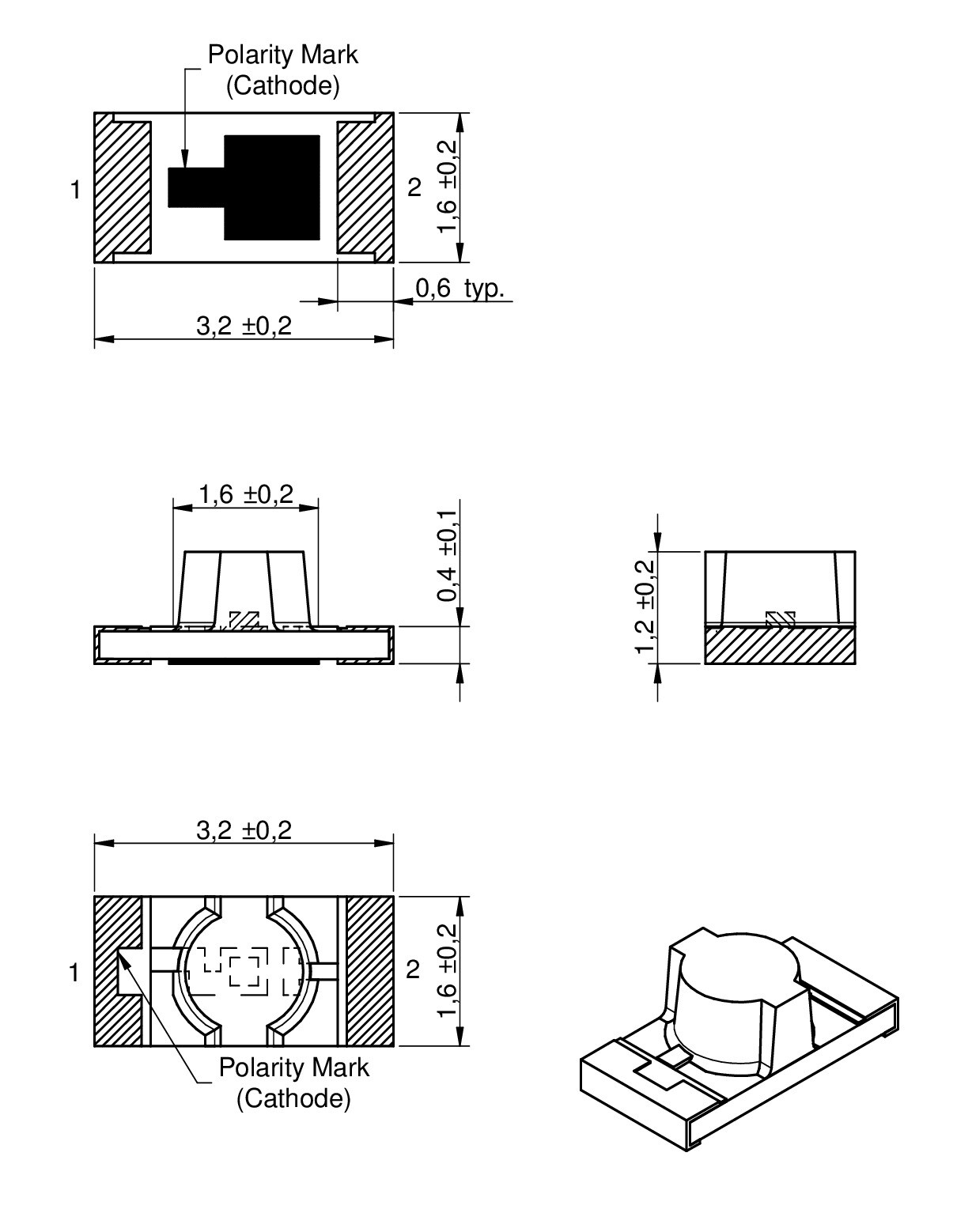

1206 cylindrical 3.2 1.6 1.2 SMT

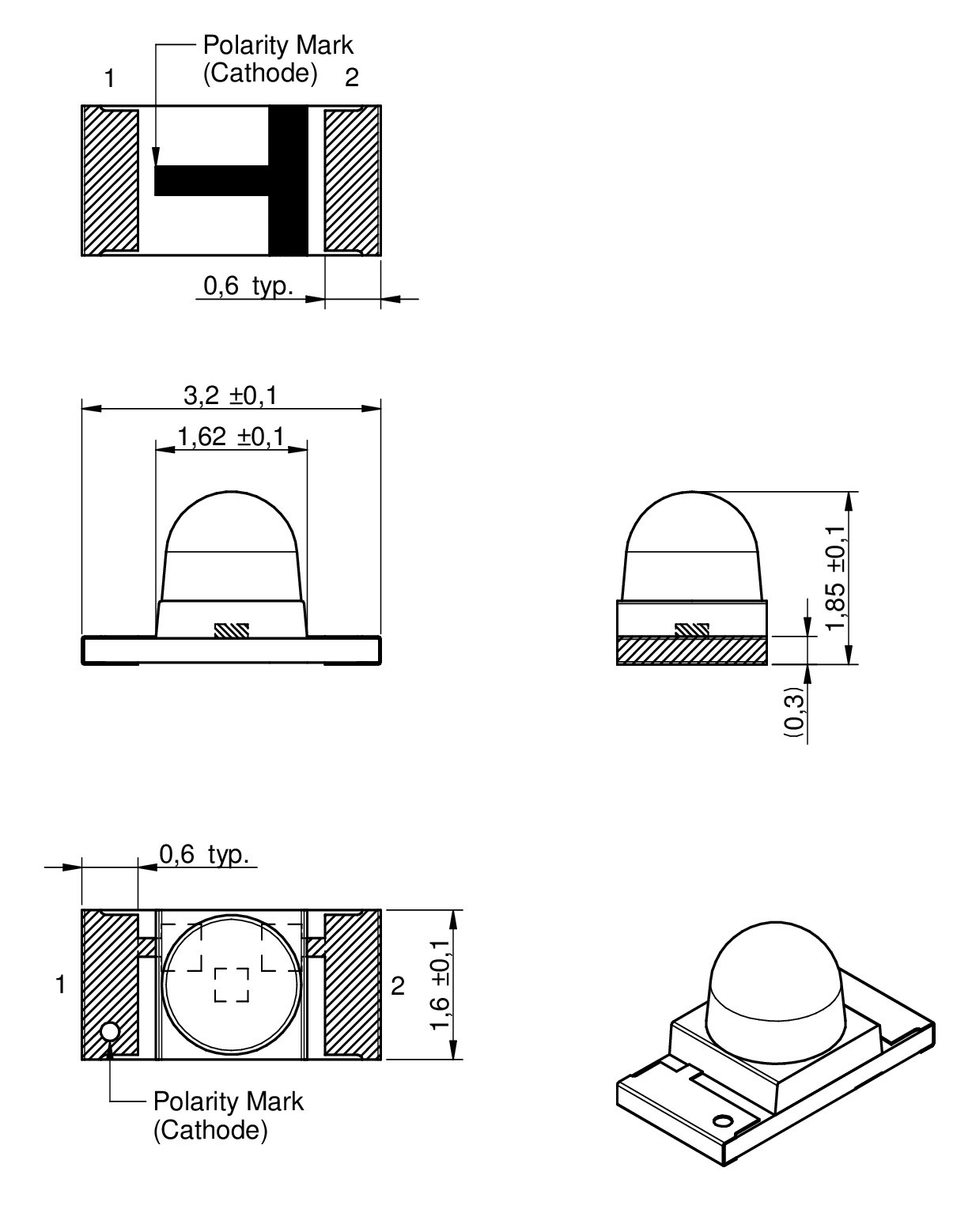

1206 dome 3.2 1.6 1.85 SMT

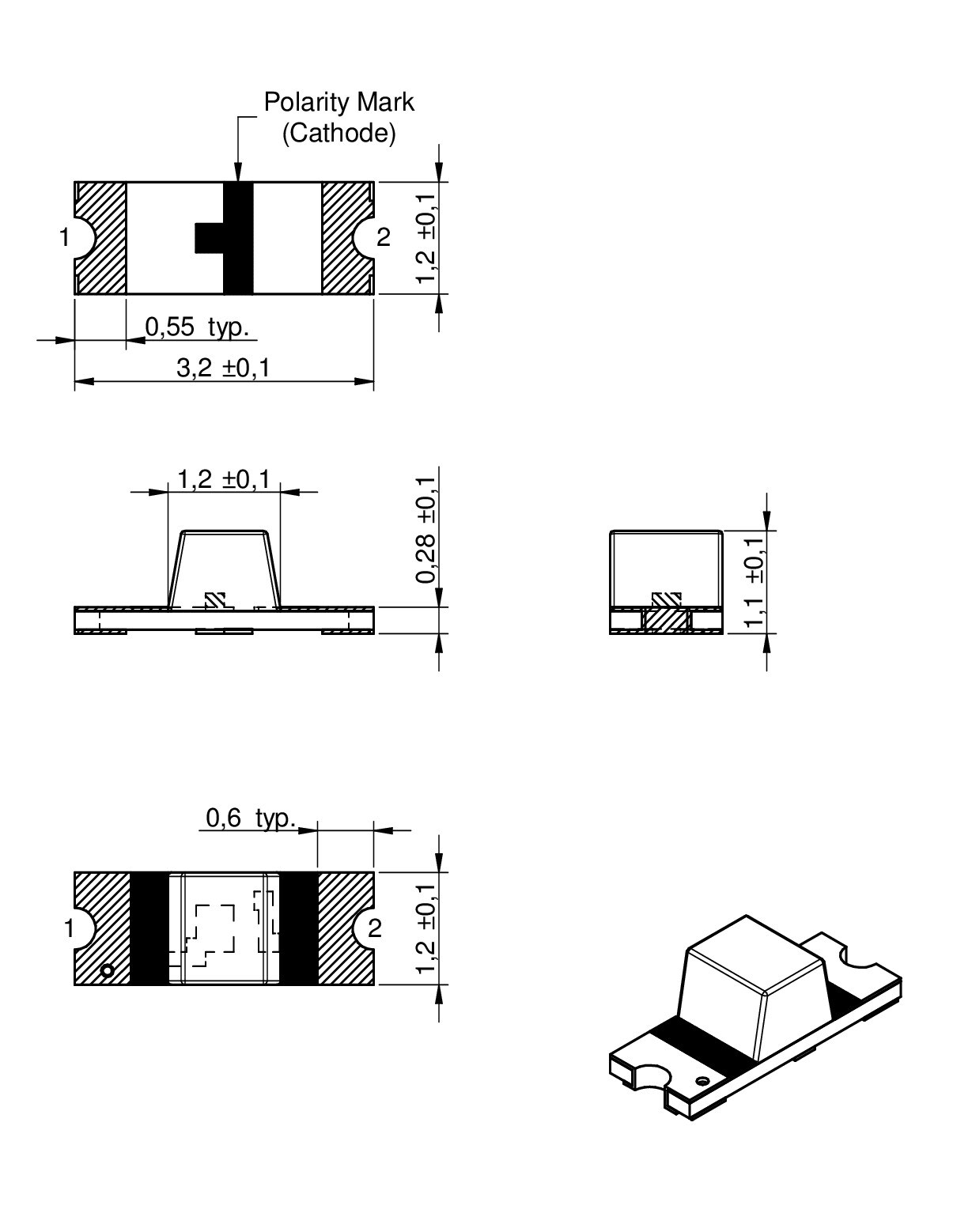

1205 3.2 1.2 1.1 SMT

Characteristics

  • Small size & thin body for space saving
  • Ideal for narrow space applications
  • Wide viewing angle
  • Low power consumption
  • Industry standard footprint
  • Small LED package for exceptional brightness
  • To emit light through a small cut-out hole in PCB
  • Compatible with automatic placement machine

Applications

  • Front panels indicators
  • LCD backlighting
  • Keypad backlighting
  • Push button backlighting
  • Symbol and switch backlighting
  • General LED lighting

Products

All
1206 rectangular
1206 cylindrical
1206 dome
1205
Order Code SPEC Simu­lation Downloads Emitting Color λPeak typ.
(nm)
λDom typ.
(nm)
IV typ.
(mcd)
VF typ.
(V)
Chip Technology 50% typ.
(°)
Design Kit Demoboard Samples
156120AS82500
ALT EAG LTS PSP CAD CAD Amber 609 605 2200 2 AlInGaP 20 150155
150156
9999003
156120BS75000
ALT EAG LTS PSP CAD CAD Blue 465 470 50 3.2 InGaN 140 150155
150156
9999003
156120BS75300
ALT EAG LTS PSP CAD CAD Blue 465 470 50 3.2 InGaN 140 150155
150156
9999003
156120BS82500
ALT EAG LTS PSP CAD CAD Blue 465 470 700 3.2 InGaN 20 150155
150156
9999003
156125BS75000
ALT EAG LTS PSP CAD CAD Blue 465 470 120 3.2 InGaN 140 150156
9999003
156120VS75000
ALT EAG LTS PSP CAD CAD Bright Green 575 573 30 2 AlInGaP 140 150151
150155
150156
9999003
156120VS75300
ALT EAG LTS PSP CAD CAD Bright Green 575 573 30 2 AlInGaP 140 150151
150155
150156
9999003
156120VS82500
ALT EAG LTS PSP CAD CAD Bright Green 575 573 1050 2 AlInGaP 20 150155
150156
9999003
156125VS75000
ALT EAG LTS PSP CAD CAD Bright Green 575 573 45 2 AlInGaP 140 150156
9999003
156120YS75000
ALT EAG LTS PSP CAD CAD Yellow 592 589 80 2 AlInGaP 140 150151
150155
150156
9999003
156120YS75300
ALT EAG LTS PSP CAD CAD Yellow 592 589 80 2 AlInGaP 140 150151
150155
150156
9999003
156120YS82500
ALT EAG LTS PSP CAD CAD Yellow 591 589 1400 2 AlInGaP 20 150155
150156
9999003
156125YS75000
ALT EAG LTS PSP CAD CAD Yellow 591 589 70 2.1 AlInGaP 140 150156
9999003
156120GS75000
ALT EAG LTS PSP CAD CAD Green 520 525 235 3.3 InGaN 140 150151
150155
150156
9999003
156120GS75300
ALT EAG LTS PSP CAD CAD Green 520 525 235 3.3 InGaN 140 150151
150155
150156
9999003
156120GS82500
ALT EAG LTS PSP CAD CAD Green 520 525 1500 3.3 InGaN 20 150155
150156
9999003
156125GS75000
ALT EAG LTS PSP CAD CAD Green 520 525 450 3.3 InGaN 140 150156
9999003
156120RS75000
ALT EAG LTS PSP CAD CAD Red 632 624 60 2 AlInGaP 140 150151
150155
150156
9999003
156120RS75300
ALT EAG LTS PSP CAD CAD Red 632 624 60 2 AlInGaP 140 150151
150155
150156
9999003
156120RS82500
ALT EAG LTS PSP CAD CAD Red 632 624 1100 2 AlInGaP 20 150155
150156
9999003
156125RS75000
ALT EAG LTS PSP CAD CAD Red 632 624 110 2 AlInGaP 140 150156
9999003
156120SS82500
ALT EAG LTS PSP CAD CAD Super Red 645 630 900 2 AlInGaP 20 150155
150156
9999003
