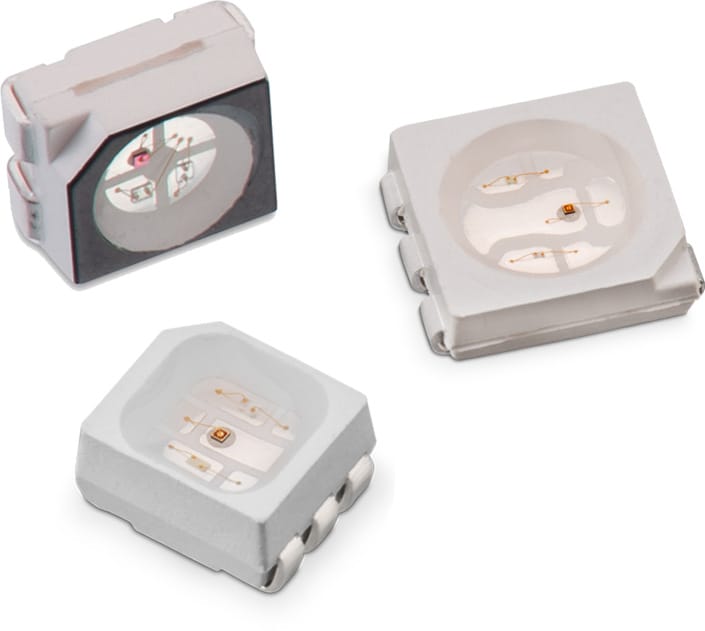

WL-SFTW SMT Full-color TOP LED Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
2121		2.1	2.1	1	SMT

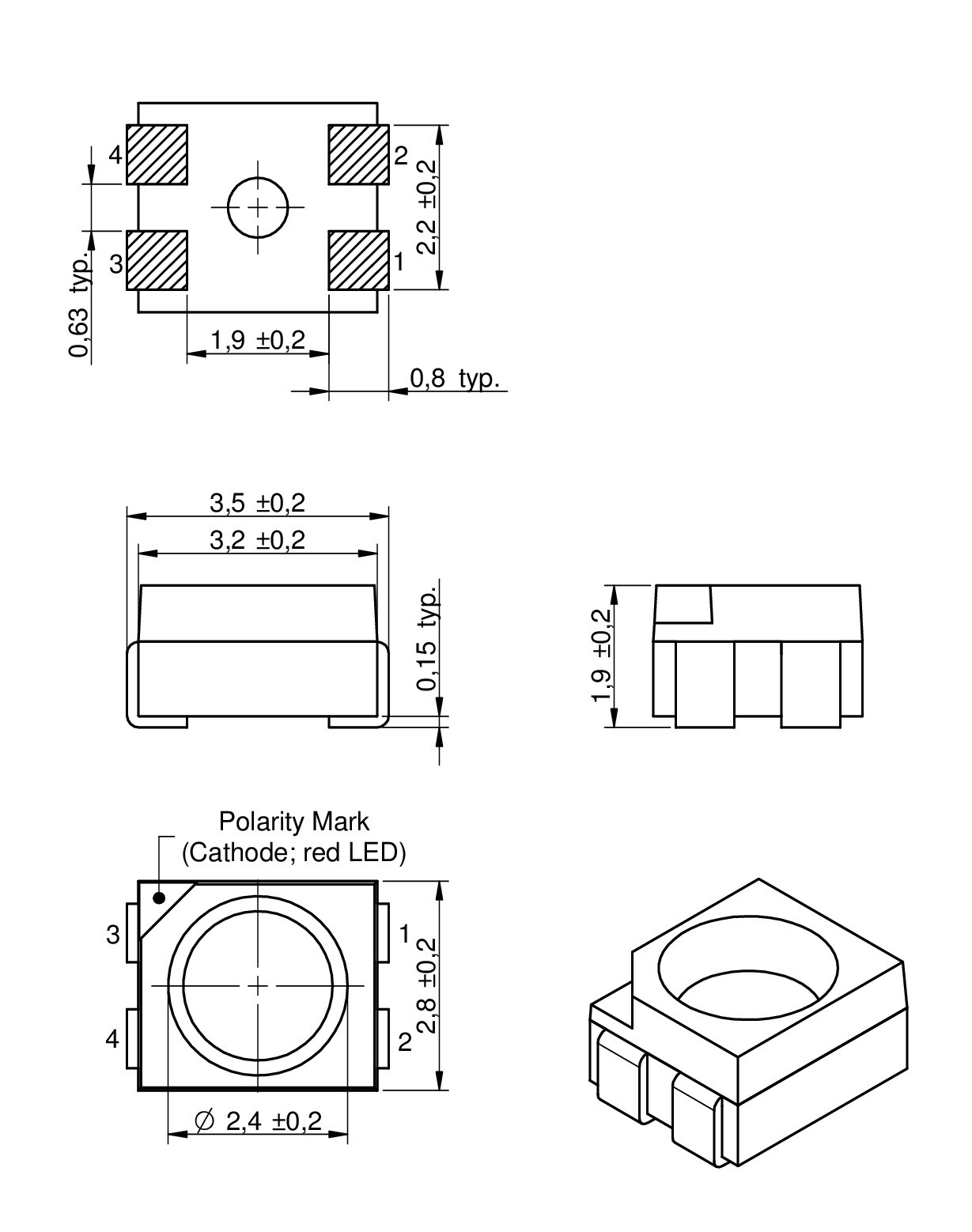

3528		3.5	2.8	1.9	SMT

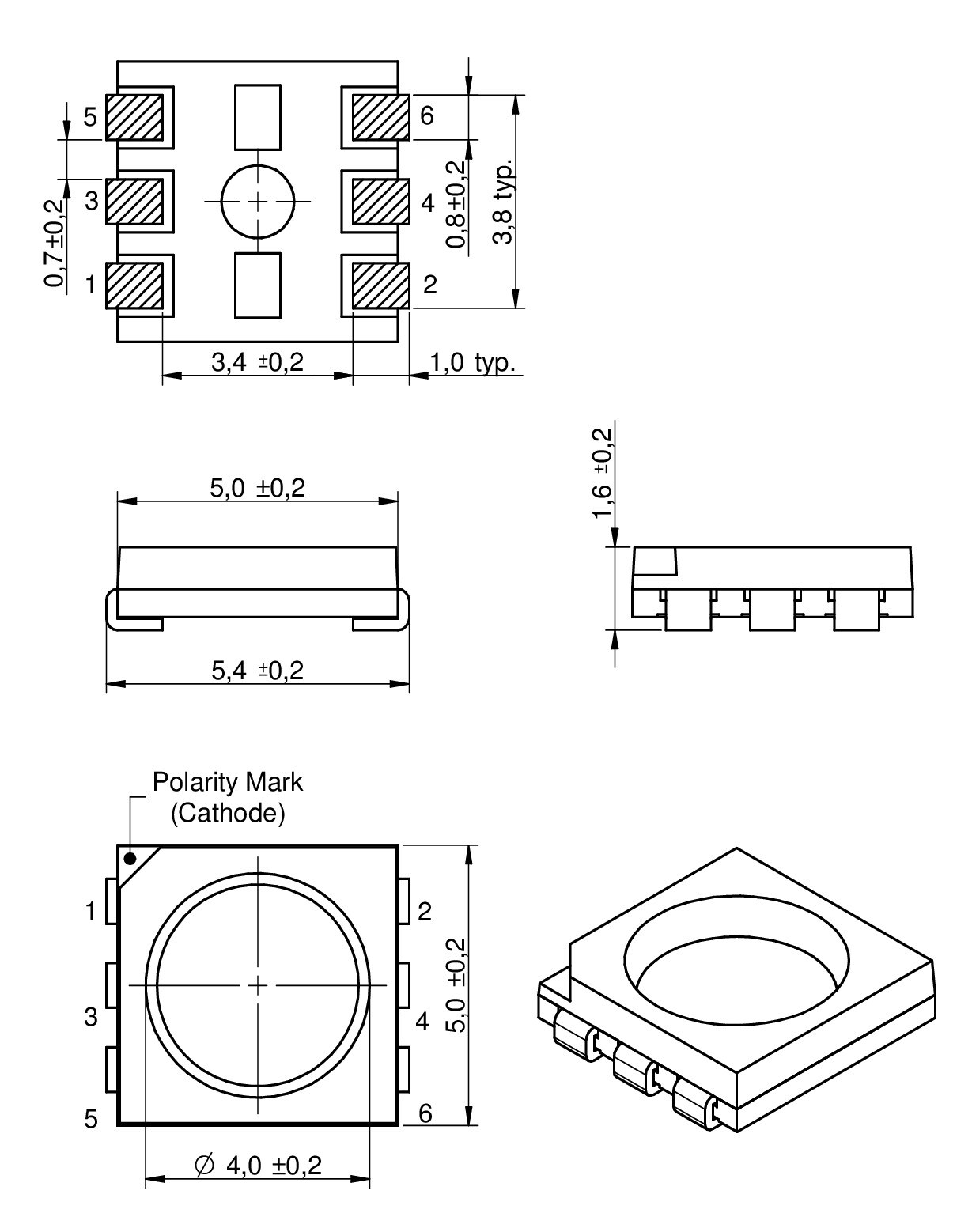

5050		5.4	5	1.5	SMT

LTSpice files

LT
LTSpice_WL-SFTW (rev25a).zip
|
6 KB

Characteristics

Low energy consumption
High reliability
Low current requirement
Fast switching
No UV/IR radiation
High brightness
RGB individual control
Compact package outline
LED with Black surface

Applications

Flash light
Switch indicators
Equipment indicators
Accent and decorative lighting
Electronic signage
Video displays
Backlight for LCDs, PDAs and TVs
Oven, microwave
Street lighting
Ideal for lateral coupling in light guides

Products

All

2121

3528

5050

Filter article data

show articles in 3 product lines

articles in 3 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	I_{V B typ.}(mcd)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	V_{F B typ.}(V)	V_{F G typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	150141M173100	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads27 files ALT Altium_WL-SFTW (rev25b).IntLib \| 252 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25b).lbr \| 62.6 KB KIC KiCad_WL-SFTW (rev26a).zip \| 397.8 KB IGS Download_IGS_WL-SFTW-3528 (rev1).igs \| 391.2 KB STP Download_STEP_150141M173100 (rev1).stp \| 221.7 KB PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB RAY files ASA ASAP-and-APEX_dis_150141M173100_5M (rev1p0).zip \| 361.2 MB COD CodeV_ray_150141M173100_5M (rev1p0).zip \| 342.8 MB FRE Fred_dat_150141M173100_5M (rev1p0).zip \| 361.2 MB FRE Fred_txt_150141M173100_5M (rev1p0).zip \| 565 MB LIG LightTools_ray_150141M173100_5M (rev1p0).zip \| 356.7 MB LIG LightTools_txt_150141M173100_5M (rev1p0).zip \| 564.8 MB LUC LucidShape_ray_150141M173100_5M (rev1p0).zip \| 361.2 MB LUC LucidShape_txt_150141M173100_5M (rev1p0).zip \| 565 MB OPT OpTaliX_txt_150141M173100_5M (rev1p0).zip \| 565 MB OPT OptiCAD_dat_150141M173100_5M (rev1p0).zip \| 361.2 MB OPT OptiCAD_txt_150141M173100_5M (rev1p0).zip \| 565 MB OPT optalix_DIS_150141M173100_5M (rev1p0).zip \| 361.2 MB RIR Photopia_rir_150141M173100_5M (rev1p0).zip \| 361.2 MB SIM Simulux_ray_150141M173100_5M (rev1p0).zip \| 361.2 MB SPE Speos_ray_150141M173100_5M (rev1p0).zip \| 373.4 MB SRC Lucaray-maker_src_150141M173100_5M (rev1p0).zip \| 361.2 MB TRA TracePro_txt_150141M173100_5M (rev1p0).zip \| 564.8 MB ZEM ZemaxBin_dat_150141M173100_5M (rev1p0).zip \| 361.2 MB ZEM Zemax_dat_150141M173100_5M (rev1p0).zip \| 565 MB CER IR_LED_certificate_WL-SFTW-3528 (rev1).pdf \| 1.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]230 mcd	Luminous Intensity (Green) [typ.]950 mcd	Luminous Intensity (Red) [typ.]270 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150151	–Check availability
	150505M173300	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads28 files ALT Altium_WL-SFTW (rev25b).IntLib \| 252 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25b).lbr \| 62.6 KB KIC KiCad_WL-SFTW (rev26a).zip \| 397.8 KB 3D 150505M1xxx_3D (rev1).pdf \| 130 KB IGS Download_IGS-WL-SFTW-150505M173300 (rev1).igs \| 1.4 MB STP Download_STEP_150505M173300 (rev1).stp \| 360.7 KB PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB RAY files ASA ASAP-and-APEX_dis_150505M173300_5M (rev1p0).zip \| 364.5 MB COD CodeV_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB FRE Fred_dat_150505M173300_5M (rev1p0).zip \| 364.5 MB FRE Fred_txt_150505M173300_5M (rev1p0).zip \| 566.1 MB LIG LightTools_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB LIG LightTools_txt_150505M173300_5M (rev1p0).zip \| 566.1 MB LUC LucidShape_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB LUC LucidShape_txt_150505M173300_5M (rev1p0).zip \| 565.8 MB OPT OpTaliX_txt_150505M173300_5M (rev1p0).zip \| 565.5 MB OPT OptiCAD_dat_150505M173300_5M (rev1p0).zip \| 364.5 MB OPT OptiCAD_txt_150505M173300_5M (rev1p0).zip \| 565.5 MB OPT optalix_DIS_150505M173300_5M (rev1p0).zip \| 364.5 MB RIR Photopia_rir_150505M173300_5M (rev1p0).zip \| 364.5 MB SIM Simulux_ray_150505M173300_5M (rev1p0).zip \| 364.5 MB SPE Speos_ray_150505M173300_5M (rev1p0).zip \| 377.1 MB SRC Lucaray-maker_src_150505M173300_5M (rev1p0).zip \| 364.5 MB TRA TracePro_txt_150505M173300_5M (rev1p0).zip \| 566.4 MB ZEM ZemaxBin_dat_150505M173300_5M (rev1p0).zip \| 364.5 MB ZEM Zemax_dat_150505M173300_5M (rev1p0).zip \| 565.5 MB CER IR_LED_certificate_WL-SFTW-5050_150505M173300 (rev1).pdf \| 1.1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]350 mcd	Luminous Intensity (Green) [typ.]1300 mcd	Luminous Intensity (Red) [typ.]800 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150151	–Check availability
	150352M173300	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads27 files ALT Altium_WL-SFTW (rev25b).IntLib \| 252 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25b).lbr \| 62.6 KB KIC KiCad_WL-SFTW (rev26a).zip \| 397.8 KB IGS Download_IGS_WL-SFTW-150352M1xxx (rev1).igs \| 1 MB STP Download_Step_150352M173300 (rev1).stp \| 411.2 KB PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB RAY files ASA ASAP-and-APEX_dis_150352M173300_5M (rev1p0).zip \| 360.8 MB COD CodeV_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB FRE Fred_dat_150352M173300_5M (rev1p0).zip \| 360.8 MB FRE Fred_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB LIG LightTools_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB LIG LightTools_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB LUC LucidShape_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB LUC LucidShape_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB OPT OpTaliX_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB OPT OptiCAD_dat_150352M173300_5M (rev1p0).zip \| 360.8 MB OPT OptiCAD_txt_150352M173300_5M (rev1p0).zip \| 564.2 MB OPT optalix_DIS_150352M173300_5M (rev1p0).zip \| 360.8 MB RIR Photopia_rir_150352M173300_5M (rev1p0).zip \| 360.8 MB SIM Simulux_ray_150352M173300_5M (rev1p0).zip \| 360.8 MB SPE Speos_ray_150352M173300_5M (rev1p0).zip \| 373.5 MB SRC Lucaray-maker_src_150352M173300_5M (rev1p0).zip \| 360.8 MB TRA TracePro_txt_150352M173300_5M (rev1p0).zip \| 564.5 MB ZEM ZemaxBin_dat_150352M173300_5M (rev1p0).zip \| 360.8 MB ZEM Zemax_dat_150352M173300_5M (rev1p0).zip \| 564.2 MB CER IR_LED_WL-SFTW-2121_150352M173300 (rev1).pdf \| 1.1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]400 mcd	Luminous Intensity (Green) [typ.]1700 mcd	Luminous Intensity (Red) [typ.]750 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150151	–Check availability
	150352M173303	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads5 files ALT Altium_WL-SFTW (rev25b).IntLib \| 252 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25b).lbr \| 62.6 KB KIC KiCad_WL-SFTW (rev26a).zip \| 397.8 KB PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]600 mcd	Luminous Intensity (Green) [typ.]1900 mcd	Luminous Intensity (Red) [typ.]500 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit –	–Check availability
	150141M173103	SPECRed & Green & Blue, 470 nm, 525 nm	Availability –	Downloads5 files ALT Altium_WL-SFTW (rev25b).IntLib \| 252 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25b).lbr \| 62.6 KB KIC KiCad_WL-SFTW (rev26a).zip \| 397.8 KB PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]470 nm	Peak Wavelength (Green) [typ.]525 nm	Peak Wavelength (Red) [typ.]625 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]550 mcd	Luminous Intensity (Green) [typ.]2000 mcd	Luminous Intensity (Red) [typ.]900 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2.2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit –	–Check availability
	150212M173123	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads5 files ALT Altium_WL-SFTW (rev25b).IntLib \| 252 KB CDS Cadence_WL-SFTW (rev25a).zip \| 1.3 MB EAG Eagle_WL-SFTW (rev25b).lbr \| 62.6 KB KIC KiCad_WL-SFTW (rev26a).zip \| 397.8 KB PSP PSpice_WL-SFTW (rev25a).zip \| 4.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]630 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]530 nm	Dominant Wavelength (Red) [typ.]620 nm	Luminous Intensity (Blue) [typ.]220 mcd	Luminous Intensity (Green) [typ.]1100 mcd	Luminous Intensity (Red) [typ.]340 mcd	Forward Voltage (Blue) [typ.]2.8 V	Forward Voltage (Green) [typ.]2.8 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit –	–Check availability
