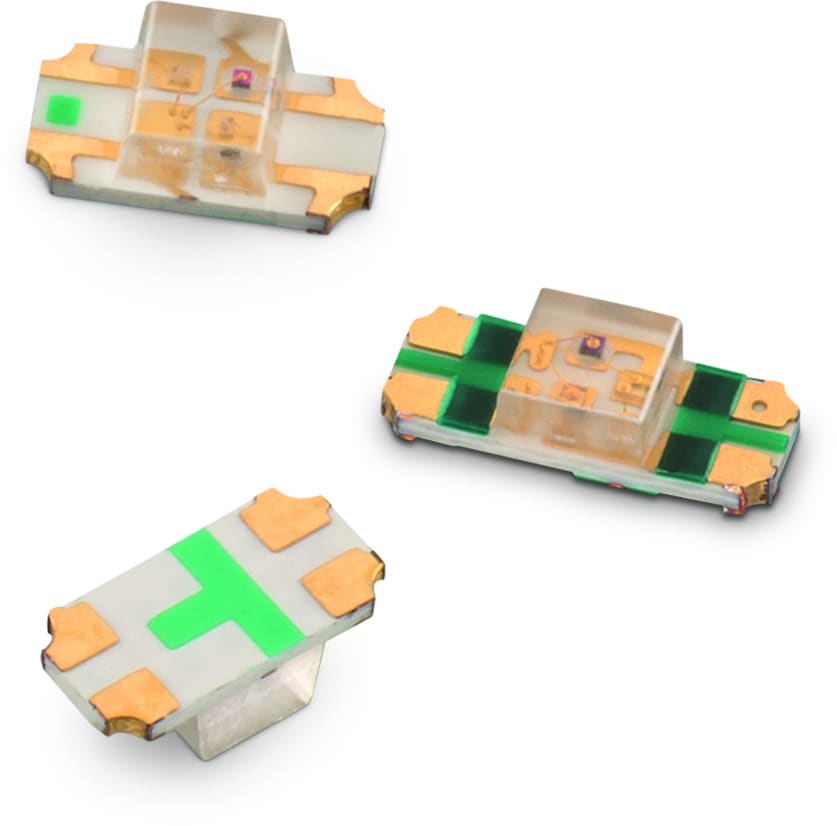

WL-SFRW SMT Full-color Reverse mount Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

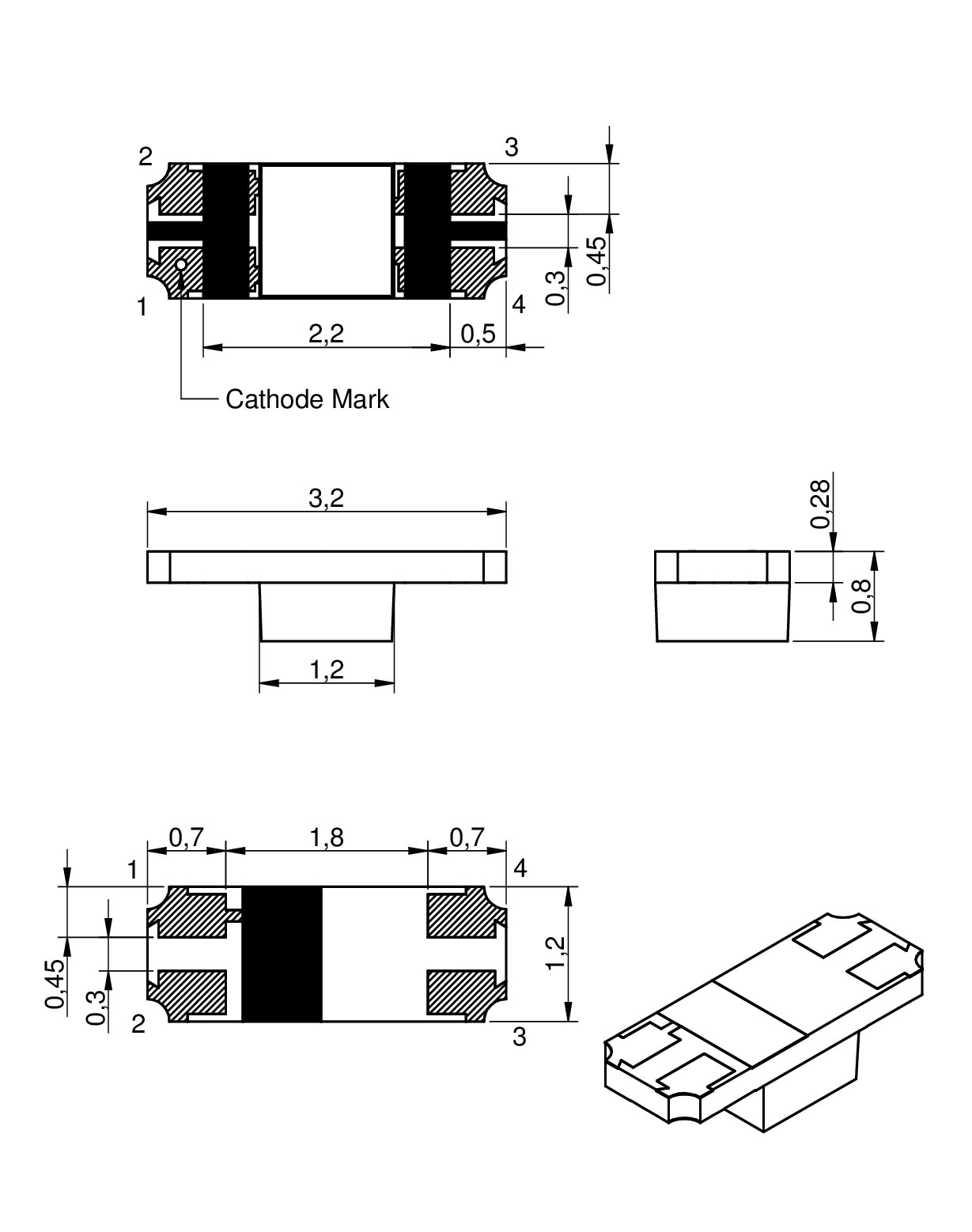

1205 rectangular		3.2	1.2	0.8	SMT

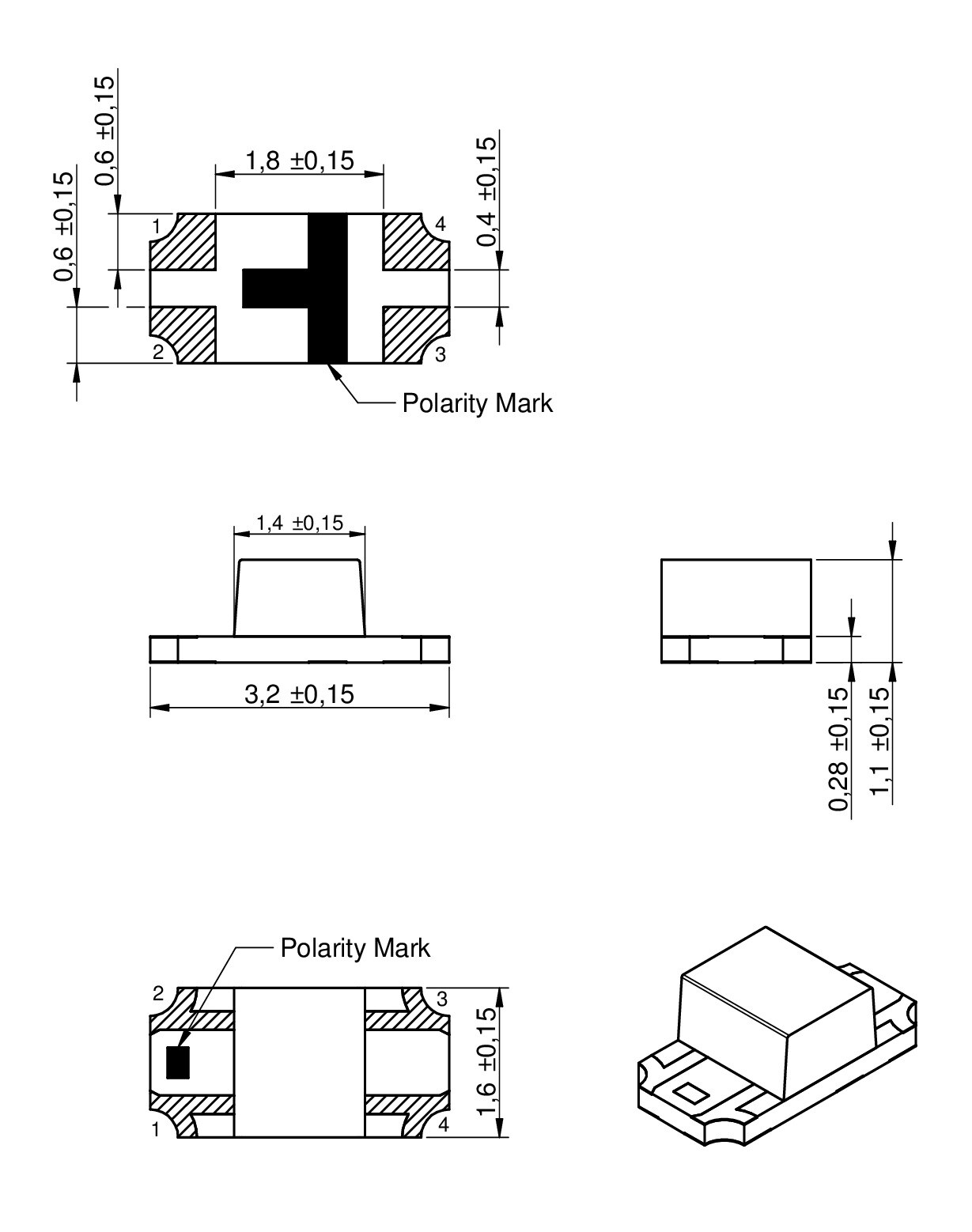

1206 rectangular		3.2	1.6	1.1	SMT

LTSpice files

LT
LTSpice_WL-SFRW (rev22a).zip
|
2.9 KB

Characteristics

RGB LED
Ideal for narrow space applications
Wide viewing angle
Low power consumption
Industry standard footprint
Small package for exceptional brightness
To emit light through a small cut-out hole in PCB
Compatible with automatic placement machine

Applications

LED Front panel indicators
LCD backlighting
Backlighting for keypad, symbol and switch button

Products

All

1205 rectangular

1206 rectangular

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	I_{V B typ.}(mcd)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	V_{F B typ.}(V)	V_{F G typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Design Kit	Demoboard	Samples
	156125M173000	Red & Green & Blue, 468 nm, 520 nm	Downloads7 files EDA models: Components ZIP ALT Altium_WL-SFRW (rev22c).IntLib \| 241.5 KB CDS Cadence_WL-SFRW (rev19a).zip \| 818.1 KB EAG Eagle_WL-SFRW (rev22a).lbr \| 28.4 KB CAD files ZIP IGS Download_IGS_WL-SFRW-1205 (rev1).igs \| 1.6 MB STP Download_STP_WL-SFRW-1205 (rev1).stp \| 731.6 KB Electric models ZIP PSP PSpice_WL-SFRW (rev22a).zip \| 3.4 KB Certificates ZIP CER IR_LED_certificate_WL-SFRW-1205-RECTANGULAR (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]70 mcd	Luminous Intensity (Green) [typ.]280 mcd	Luminous Intensity (Red) [typ.]80 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150156	Demoboard 9999003
	156120M173000	Red & Green & Blue, 468 nm, 520 nm	Downloads26 files EDA models: Components ZIP ALT Altium_WL-SFRW (rev22c).IntLib \| 241.5 KB CDS Cadence_WL-SFRW (rev19a).zip \| 818.1 KB EAG Eagle_WL-SFRW (rev22a).lbr \| 28.4 KB CAD files ZIP IGS Download_IGS_156120M173000 (rev1).igs \| 891.7 KB STP Download_STP_156120M173000 (rev1).stp \| 208.3 KB Electric models ZIP PSP PSpice_WL-SFRW (rev22a).zip \| 3.4 KB RAY files ASA ASAP-and-APEX_dis_156120M173000_5M (rev1p0).zip \| 362.4 MB COD CodeV_ray_156120M173000_5M (rev1p0).zip \| 362.4 MB FRE Fred_dat_156120M173000_5M (rev1p0).zip \| 362.4 MB FRE Fred_txt_156120M173000_5M (rev1p0).zip \| 566.2 MB LIG LightTools_ray_156120M173000_5M (rev1p0).zip \| 362.4 MB LIG LightTools_txt_156120M173000_5M (rev1p0).zip \| 566.2 MB LUC LucidShape_ray_156120M173000_5M (rev1p0).zip \| 362.4 MB LUC LucidShape_txt_156120M173000_5M (rev1p0).zip \| 566.2 MB OPT OpTaliX_txt_156120M173000_5M (rev1p0).zip \| 566.2 MB OPT OptiCAD_dat_156120M173000_5M (rev1p0).zip \| 362.4 MB OPT OptiCAD_txt_156120M173000_5M (rev1p0).zip \| 566.2 MB OPT optalix_DIS_156120M173000_5M (rev1p0).zip \| 362.4 MB RIR Photopia_rir_156120M173000_5M (rev1p0).zip \| 362.4 MB SIM Simulux_ray_156120M173000_5M (rev1p0).zip \| 362.4 MB SPE Speos_ray_156120M173000_5M (rev1p0).zip \| 375.4 MB SRC Lucaray-maker_src_156120M173000_5M (rev1p0).zip \| 361.8 MB TRA TracePro_txt_156120M173000_5M (rev1p0).zip \| 566.3 MB ZEM ZemaxBin_dat_156120M173000_5M (rev1p0).zip \| 362.4 MB ZEM Zemax_dat_156120M173000_5M (rev1p0).zip \| 566.2 MB Certificates ZIP CER IR_LED_certificate_WL-SFRW-1205-RECTANGULAR (rev1).pdf \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]250 mcd	Luminous Intensity (Green) [typ.]700 mcd	Luminous Intensity (Red) [typ.]270 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150156	Demoboard –

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED - Reverse Mount & Side View

Demoboard Visible LEDs
