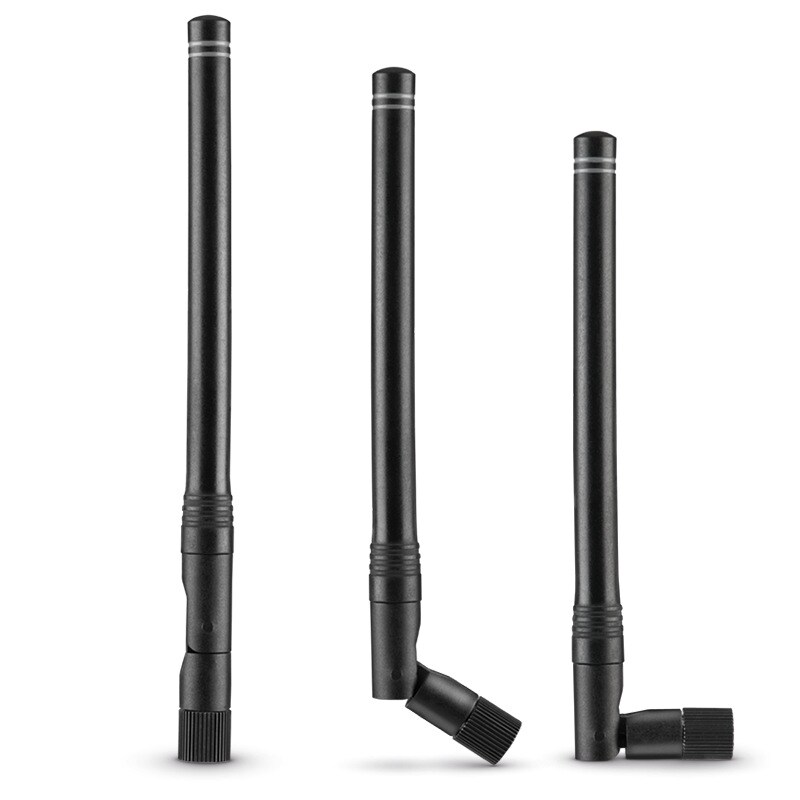

Characteristics
- Ideally suited for applications where no ground plane is available.
- 868 MHz
- Dipole Antenna
- SMA/m connector
- 90 degree tiltable
- Rotatable by 360 degrees
- Robust construction
Applications
- 868 MHz applications
- Industrial applications
- Monitoring applications
- Metering applications
Products
| Order Code | Datasheet | Downloads | Description | f | VSWR | Gpeak (dBi) | H (mm) | Ø D (mm) | m (g) | Operating Temperature | Offer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2600130081 | SPEC | – | Hyperion-I (AMB 1981) | 868 MHz | 2 | -2.3 | 142 | 10 | 14.3 | -30 °C up to +80 °C |
| Order Code | Datasheet |
|---|---|
| 2600130081 | SPEC |
| Offer |
|---|
| Order Code | Datasheet | Downloads | Description | f | VSWR | Gpeak (dBi) | H (mm) | Ø D (mm) | m (g) | Operating Temperature | Offer |
|---|
