Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | ||
---|---|---|---|---|---|---|---|

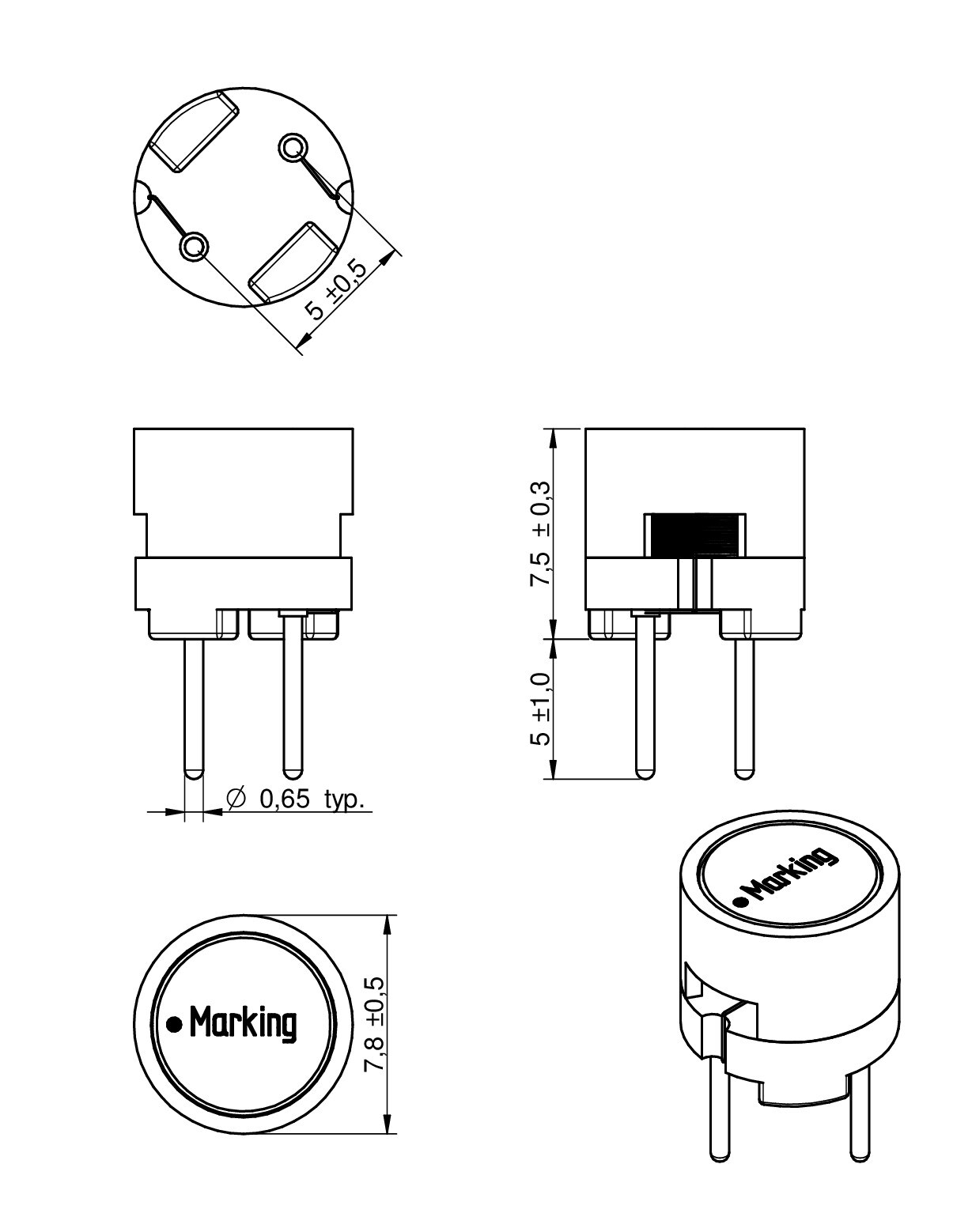

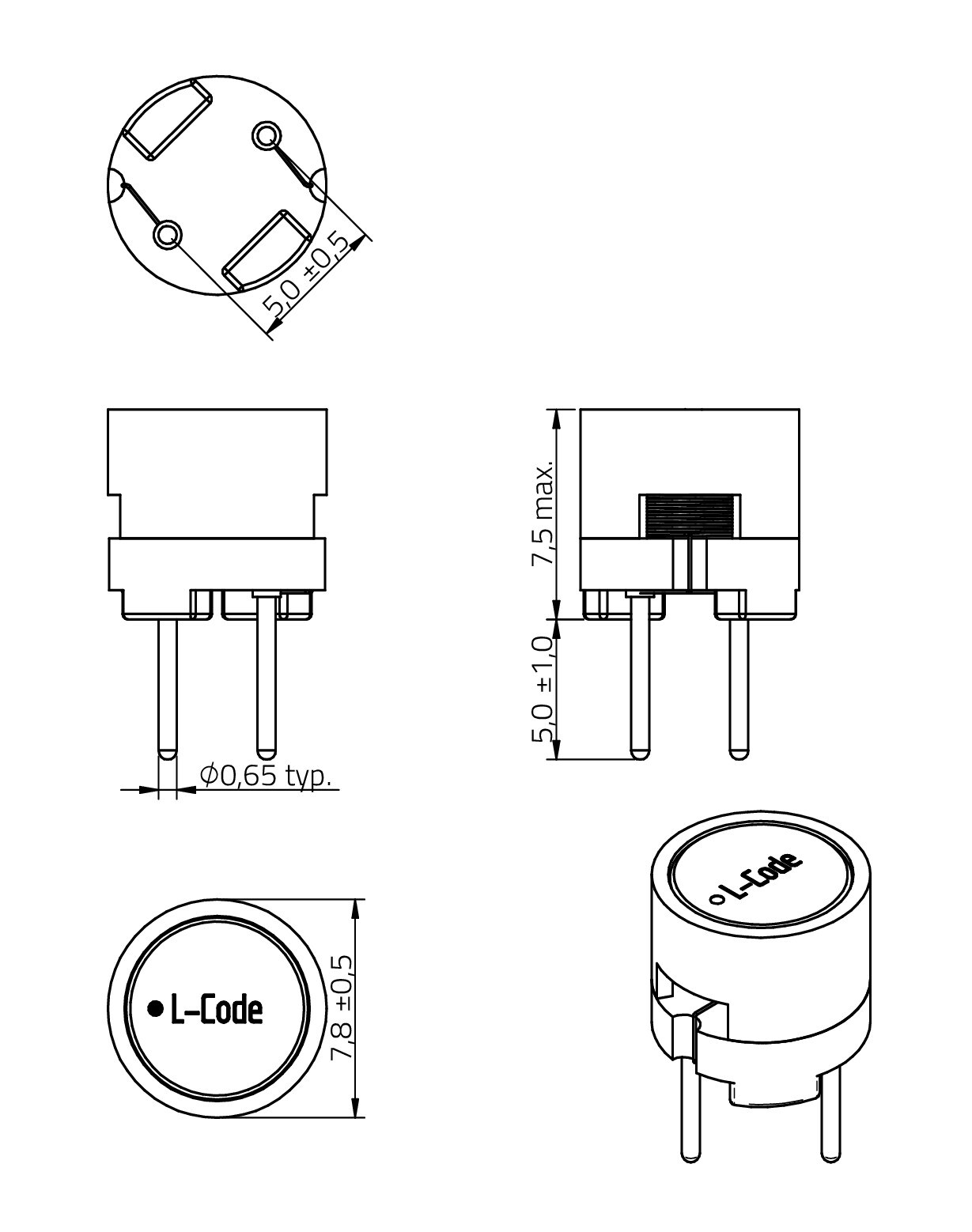

EXT. | 8075 | 7.8 | 7.8 | 7.5 | - | ||

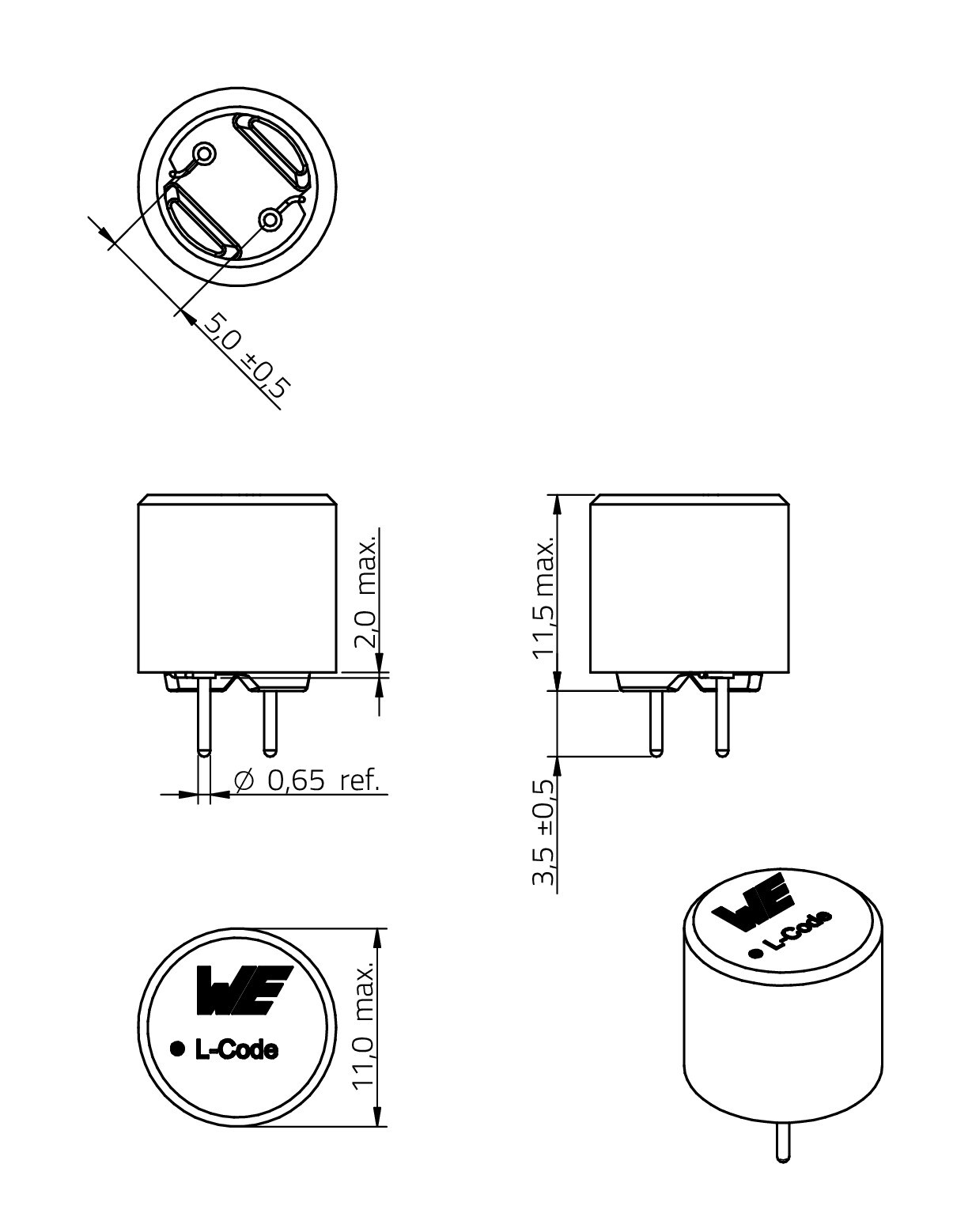

EXT. | 1111 | 11 | 11 | 11.5 | THT |
LTSpice files
Characteristics
- Radial through-hole inductor
- High saturation core material
- High current capacity
- Custom design on request
Applications
- Signal filtering
- Switches, switching power supply for small and medium voltage
- Power supply filter
- EMI filter
Products
Order Code | Datasheet | Simulation | Downloads | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | fres (MHz) | Mount | Design Kit | Samples | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
7447471010 | SPEC | 7 files | 1 | 10.5 | 22 | 8 | 155 | THT | 744731 | |||
7447471027 | SPEC | 7 files | 2.7 | 8.2 | 13 | 11 | 88 | THT | 744731 | |||
7447471039 | SPEC | 7 files | 3.9 | 7.7 | 11 | 13 | 75 | THT | 744731 | |||
NEW | 7447471047 | SPEC | 8 files | 4.7 | 7.1 | 9.9 | 15 | – | – | 744731 | ||
NEW | 7447471068 | SPEC | 8 files | 6.8 | 6 | 8 | 19 | – | – | 744731 | ||
NEW | 7447471100 | SPEC | 8 files | 10 | 5 | 6.6 | 26 | – | – | 744731 | ||
NEW | 7447471220 | SPEC | 8 files | 22 | 3.8 | 4.4 | 40 | – | – | 744731 | ||
NEW | 7447471330 | SPEC | 8 files | 33 | 3 | 3.6 | 65 | – | – | 744731 | ||
NEW | 7447471470 | SPEC | 8 files | 47 | 2.3 | 3 | 100 | – | – | 744731 | ||
NEW | 744731680 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 68 | 1.5 | 1 | 200 | – | – | 744731 | ||
NEW | 7447471101 | SPEC | 8 files | 100 | 1.4 | 2.1 | 240 | – | – | 744731 | ||
NEW | 7447471151 | SPEC | 8 files | 150 | 1.2 | 1.7 | 340 | – | – | – | ||
NEW | 7447471221 | SPEC | 8 files | 220 | 1 | 1.4 | 510 | – | – | 744731 | ||
NEW | 744731331 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 330 | 0.65 | 0.45 | 830 | – | – | 744731 | ||
NEW | 7447471331 | SPEC | 8 files | 330 | 0.8 | 1.1 | 810 | – | – | 744731 | ||
NEW | 744731471 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 470 | 0.6 | 0.4 | 1300 | – | – | 744731 | ||
NEW | 7447471471 | SPEC | 8 files | 470 | 0.68 | 0.98 | 1200 | – | – | 744731 | ||
NEW | 744731681 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 680 | 0.52 | 0.2 | 1820 | – | – | – | ||
NEW | 744731102 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 1000 | 0.35 | 0.25 | 2300 | – | – | 744731 | ||
NEW | 7447471102 | SPEC | 8 files | 1000 | 0.46 | 0.68 | 2500 | – | – | 744731 | ||
NEW | 744731152 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 1500 | 0.4 | 0.2 | 2820 | – | – | – | ||
NEW | 744731222 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 2200 | 0.2 | 0.18 | 4600 | – | – | 744731 | ||
NEW | 7447471222 | SPEC | 8 files | 2200 | 0.31 | 0.46 | 5700 | – | – | 744731 | ||
NEW | 744731332 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 3300 | 0.18 | 0.15 | 8000 | – | – | 744731 | ||
NEW | 7447471332 | SPEC | 8 files | 3300 | 0.25 | 0.38 | 8600 | – | – | 744731 | ||
NEW | 744731472 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 4700 | 0.16 | 0.14 | 11400 | – | – | 744731 | ||
NEW | 7447471472 | SPEC | 8 files | 4700 | 0.21 | 0.32 | 12000 | – | – | 744731 | ||
NEW | 744731562 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 5600 | 0.13 | 0.07 | 15700 | – | – | 744731 | ||
NEW | 7447471682 | SPEC | 8 files | 6800 | 0.18 | 0.27 | 14500 | – | – | 744731 | ||
NEW | 744731822 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 8 files | 8200 | 0.1 | 0.05 | 16000 | – | – | 744731 |
Order Code | Datasheet | Simulation | |
---|---|---|---|
7447471010 | SPEC | ||
7447471027 | SPEC | ||
7447471039 | SPEC | ||
NEW | 7447471047 | SPEC | |
NEW | 7447471068 | SPEC | |
NEW | 7447471100 | SPEC | |
NEW | 7447471220 | SPEC | |
NEW | 7447471330 | SPEC | |
NEW | 7447471470 | SPEC | |
NEW | 744731680 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471101 | SPEC | |
NEW | 7447471151 | SPEC | |
NEW | 7447471221 | SPEC | |
NEW | 744731331 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471331 | SPEC | |
NEW | 744731471 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471471 | SPEC | |
NEW | 744731681 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 744731102 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471102 | SPEC | |
NEW | 744731152 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 744731222 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471222 | SPEC | |
NEW | 744731332 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471332 | SPEC | |
NEW | 744731472 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471472 | SPEC | |
NEW | 744731562 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
NEW | 7447471682 | SPEC | |
NEW | 744731822 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
Samples |
---|
Order Code | Datasheet | Simulation | Downloads | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | fres (MHz) | Mount | Design Kit | Samples |
---|
Assortments
Articles from this product series can be found in the following assortments:
