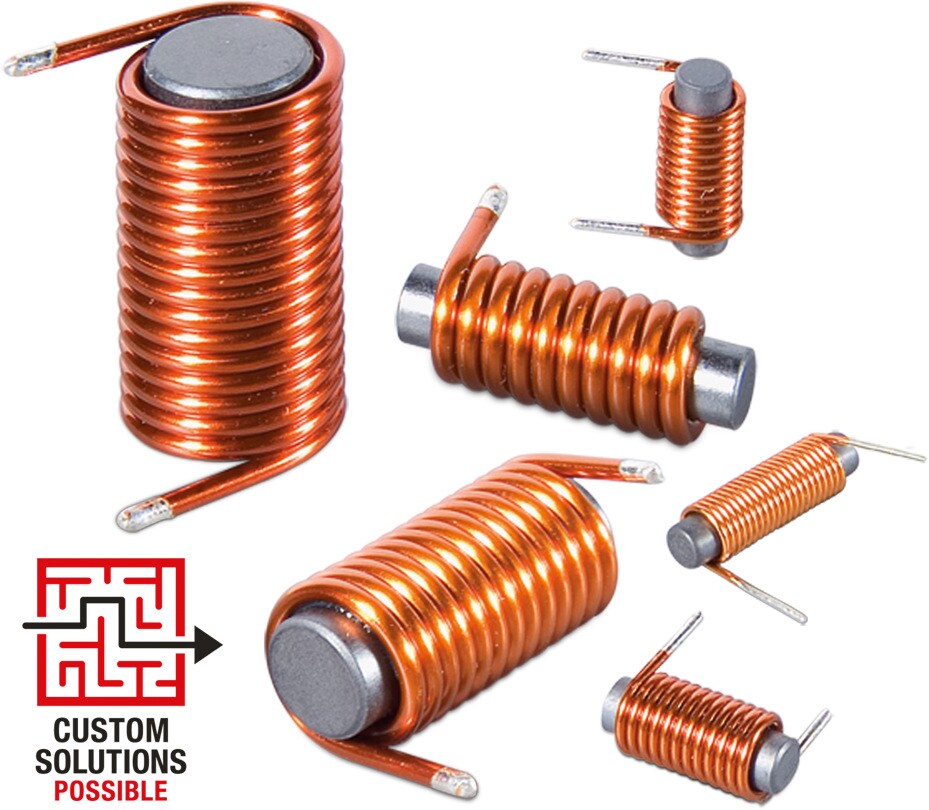

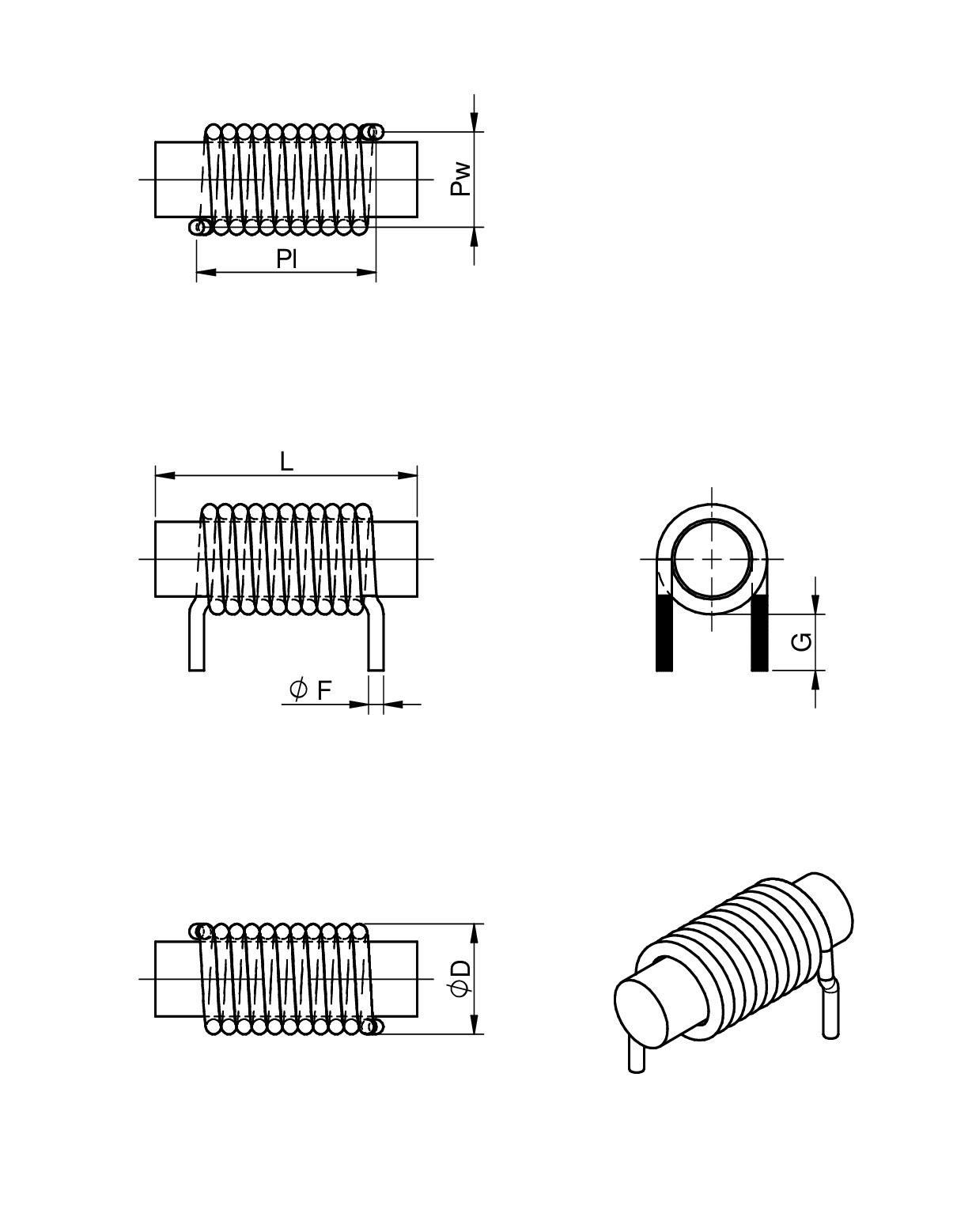

WE-SD Rod Core Choke

LTSpice files

LT
LTSpice_WE-SD (rev22a).zip
|
1.9 KB

Characteristics

Rated current up to 15 A
Inductance is independent from rated DC current
High mechanical stability
High saturation currents
Operating temperature: –40 ºC to +150 ºC
Custom designs on request

Applications

Switching regulators, motors, power amplifiers, power supplies
Broadband filtering
Typical in VHF

Application Notes

ANP015 Line filter – The last barrier in the switch mode power supply
PDF

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Simulation	Downloads	Status	L(µH)	I_R(A)	R_DC(mΩ)	L(mm)	W(mm)	H(mm)	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	744710203	SPEC2 µH, 2.5 A, 11 mΩ	Simulation	Availability –	Downloads8 files ALT WE-SD (rev22b).IntLib \| 1 MB ANS ANSYS_744710203 (rev22a).a3dcomp \| 581.5 KB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710203 (rev1).igs \| 427.7 KB STP 744710203 (rev1).stp \| 173.3 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current2.5 A	DC Resistance11 mΩ	Length12.3 mm	–	–	Design Kit 744713	–Check availability
	744710205	SPEC2 µH, 5 A, 6.5 mΩ PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 04/01/2027 SPEC Datasheet valid from 05/01/2027	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710205 (rev1).igs \| 376.8 KB STP 744710205 (rev1).stp \| 142.5 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current5 A	DC Resistance6.5 mΩ	Length13.7 mm	–	–	Design Kit 744713	–Check availability
	744710210	SPEC2 µH, 10 A, 3.8 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710210 (rev1).igs \| 365.4 KB STP 744710210 (rev1).stp \| 132.7 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current10 A	DC Resistance3.8 mΩ	Length15.4 mm	–	–	Design Kit 744713	–Check availability
	744710215	SPEC2 µH, 15 A, 1.7 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710215 (rev1).igs \| 353.6 KB STP 744710215 (rev1).stp \| 122.7 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current15 A	DC Resistance1.7 mΩ	Length25.7 mm	–	–	Design Kit 744713	–Check availability
	744710603	SPEC6 µH, 3.5 A, 22 mΩ PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 04/01/2027 SPEC Datasheet valid from 05/01/2027	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710603 (rev1).igs \| 565.1 KB STP 744710603 (rev1).stp \| 241.9 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current3.5 A	DC Resistance22 mΩ	Length15.4 mm	–	–	Design Kit 744713	–Check availability
	744710605	SPEC6 µH, 5 A, 11.7 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710605 (rev1).igs \| 496.4 KB STP 744710605 (rev1).stp \| 201.6 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current5 A	DC Resistance11.7 mΩ	Length20.5 mm	–	–	Design Kit 744713	–Check availability
	744710610	SPEC6 µH, 10 A, 6.5 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710610 (rev1).igs \| 458.4 KB STP 744710610 (rev1).stp \| 181.9 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current10 A	DC Resistance6.5 mΩ	Length25.7 mm	–	–	Design Kit 744713	–Check availability
	744710615	SPEC6 µH, 15 A, 3.5 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744710615 (rev1).igs \| 430.4 KB STP 744710615 (rev1).stp \| 162.1 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current15 A	DC Resistance3.5 mΩ	Length30 mm	–	–	Design Kit 744713	–Check availability
	744711003	SPEC10 µH, 2.5 A, 33 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744711003 (rev1).igs \| 612 KB STP 744711003 (rev1).stp \| 280.6 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current2.5 A	DC Resistance33 mΩ	Length18.5 mm	–	–	Design Kit 744713	–Check availability
	744711005	SPEC10 µH, 5 A, 15.1 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744711005 (rev1).igs \| 586.1 KB STP 744711005 (rev1).stp \| 250.9 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current5 A	DC Resistance15.1 mΩ	Length22.5 mm	–	–	Design Kit 744713	–Check availability
	744711010	SPEC10 µH, 10 A, 8.8 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744711010 (rev1).igs \| 567.5 KB STP 744711010 (rev1).stp \| 241 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current10 A	DC Resistance8.8 mΩ	Length30.9 mm	–	–	Design Kit 744713	–Check availability
	744711015	SPEC10 µH, 15 A, 5.7 mΩ	Simulation	Availability –	Downloads7 files ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB IGS 744711015 (rev1).igs \| 471.9 KB STP 744711015 (rev1).stp \| 185.2 KB PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current15 A	DC Resistance5.7 mΩ	Length30.8 mm	Width29.2 mm	Height12 mm	Design Kit 744713	–Check availability
