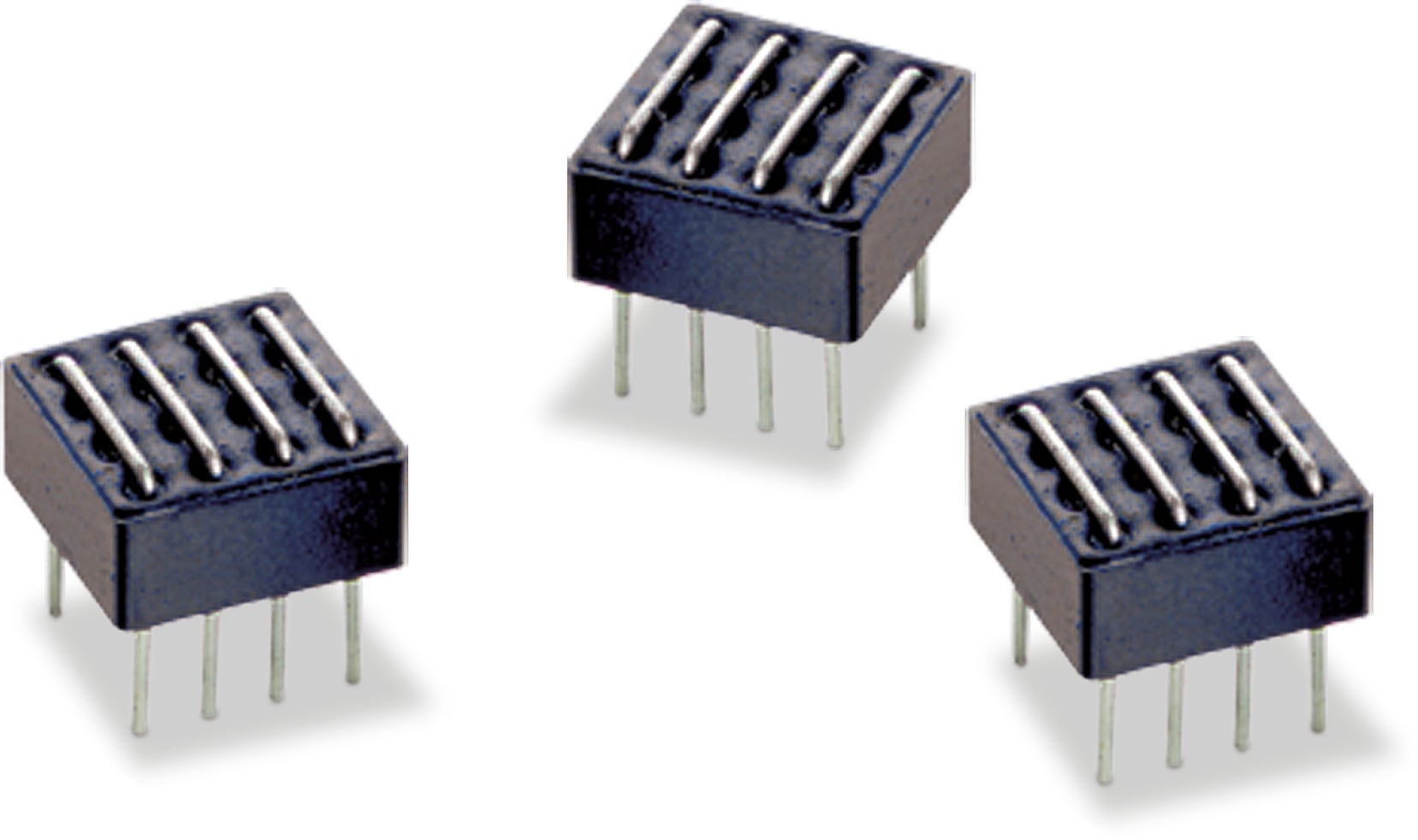

WE-MLS Multiline EMI Suppression Ferrite
Multiline Ferrite with High Impedance
LTSpice files
Characteristics
- High impedance common mode inductor with 2x2 windings made by PCB line connection
- High rated current with typ. 4 A
- Broadband filtering because of the NiZn-ferrite core
- RF common mode inductor for 2, 3 or 4 lines in one component
- Compact size
- Operating temperature: –25 ºC to +125 ºC
- With the appropriate layout the impedance (i.e. 4 windings) respectively the current (parallel circuit) could be increased
Applications
- Perfect suitable for absorption of common or differential mode interferences in the field of EMC
- With one turn the component performes like a 3 or 4 times common mode choke for the signal
- Multi-conductor systems and power electronics
- Filtering components of low voltage power supplies
- 4-line sensor application
Products
Filter by
show in
article in 0 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | Z @ 100 MHz(Ω) | Z @ 25 MHz(Ω) | IR(A) | RDC max.(mΩ) | Version | G1(mm) | L(mm) | W(mm) | H(mm) | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
742730321 | 150 Ω, 115 Ω, 4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz150 Ω | Impedance @ 25 MHz115 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length3 mm | Length11.2 mm | Width11.2 mm | Height5 mm | |||
742730021 | 170 Ω, 136 Ω, 4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz170 Ω | Impedance @ 25 MHz136 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length4.25 mm | Length11.2 mm | Width11.2 mm | Height5 mm | |||
742730022 | 248 Ω, 208 Ω, 4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz248 Ω | Impedance @ 25 MHz208 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length2.75 mm | Length11.2 mm | Width11.2 mm | Height8 mm | |||
74273002 | 249 Ω, 209 Ω, 4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz249 Ω | Impedance @ 25 MHz209 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length3.19 mm | Length10.88 mm | Width5.49 mm | Height10 mm | |||
74273012 | 249 Ω, 209 Ω, 4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz249 Ω | Impedance @ 25 MHz209 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length4.5 mm | Length10.88 mm | Width5.49 mm | Height10 mm | |||
74273001 | 264 Ω, 212 Ω, 4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz264 Ω | Impedance @ 25 MHz212 Ω | Rated Current4 A | DC Resistance2 mΩ | Version3 Lines | Pin length5.8 mm | Length7.62 mm | Width5.08 mm | Height10 mm | |||
74273031 | 264 Ω, 212 Ω, 4 A | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz264 Ω | Impedance @ 25 MHz212 Ω | Rated Current4 A | DC Resistance2 mΩ | Version3 Lines | Pin length3.5 mm | Length7.87 mm | Width5.33 mm | Height10 mm | ||
742730023 | 334 Ω, 292 Ω, 4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz334 Ω | Impedance @ 25 MHz292 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length4.25 mm | Length11.2 mm | Width11.2 mm | Height11 mm | |||
742730123 | 334 Ω, 292 Ω, 4 A | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz334 Ω | Impedance @ 25 MHz292 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length2.45 mm | Length11.2 mm | Width11.2 mm | Height11 mm | ||
742730223 | 334 Ω, 292 Ω, 4 A | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz334 Ω | Impedance @ 25 MHz292 Ω | Rated Current4 A | DC Resistance2 mΩ | Version4 Lines | Pin length3.2 mm | Length11.2 mm | Width11.2 mm | Height11 mm |
