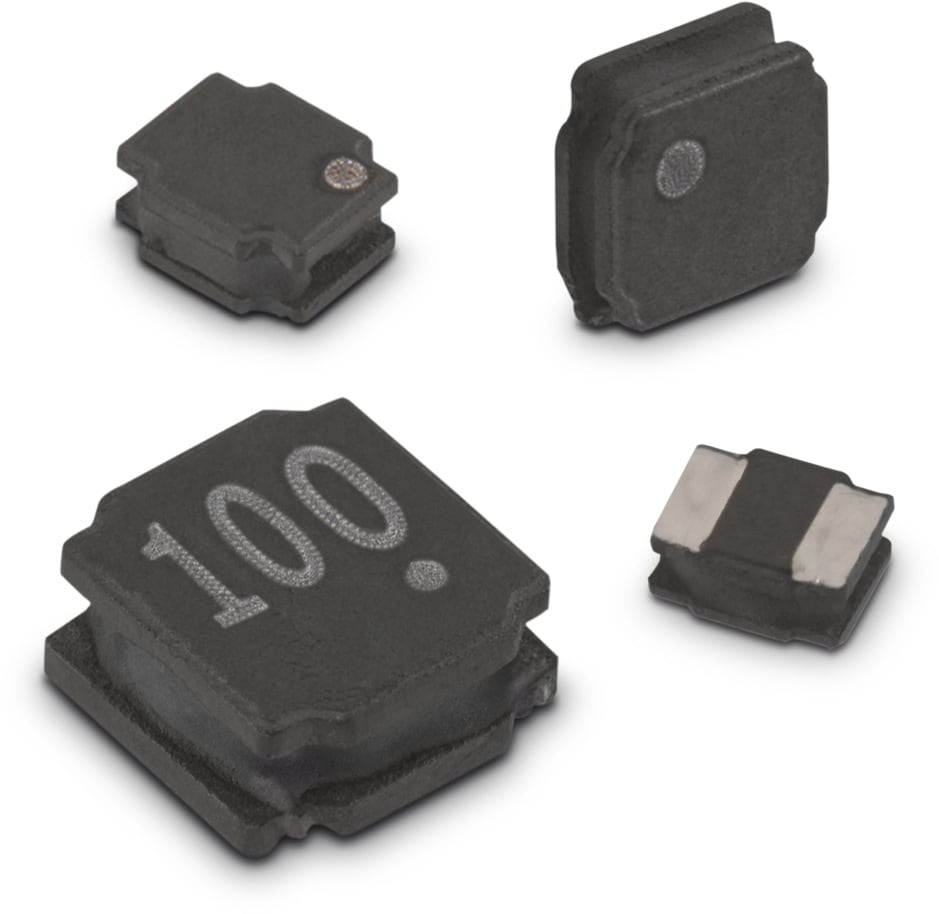

WE-LQSH SMT High Saturation Power Inductor

Semi Shielded

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
2010 2 1.6 1 SMT
2512 2.5 2 1.2 SMT
3012 3 3 1.2 SMT
4020 4 4 2 SMT

Characteristics

  • High Current semi-shielded power Inductor
  • 70% higher saturation current than WE-LQS series
  • Soft Saturation Current
  • Magnetically shielded through magnetic glue
  • 25 V maximum Peak Voltage
  • Operating Temperature: -40°C to +125°C

Applications

  • Integrated DC/DC Converters with high ripple currents
  • Switching controllers requiring high efficiency
  • Portable devices (Smartphone, Digital cameras, Tablet, etc.)
  • Embedded laptops and PCs

Products

All
2010
2512
3012
4020
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IR
(A)
ISAT
(A)
RDC max.
(mΩ)
fres
(MHz)
Design Kit Samples
744050420047SPEC
8 files 0.47 4.5 15.5 22 897440502
744050240047SPEC
9 files 0.47 2.9 5.6 35 1297440502
744050310047SPEC
8 files 0.47 3.15 8 34 1217440502
744050200047SPEC
8 files 0.47 2.2 4.7 49 1597440502
74405042010SPEC
8 files 1 4 9.5 26 557440502
74405031010SPEC
8 files 1 2.4 5.4 54 667440502
74405024010SPEC
9 files 1 2.35 4.2 58 877440502
74405020010SPEC
8 files 1 1.65 3.85 90 847440502
74405042015SPEC
8 files 1.5 3.2 8.7 36 457440502
74405024015SPEC
9 files 1.5 2.1 3.5 72 687440502
74405031015SPEC
8 files 1.5 2.2 4.1 77 607440502
74405020015SPEC
8 files 1.5 1.4 2.3 132 747440502
74405042022SPEC
8 files 2.2 2.6 7.6 48 337440502
74405024022SPEC
9 files 2.2 1.6 3 120 467440502
74405031022SPEC
8 files 2.2 1.75 3.35 108 467440502
74405020022SPEC
8 files 2.2 1.25 2.15 170 537440502
74405042033SPEC
8 files 3.3 2.3 5.9 72 277440502
74405024033SPEC
9 files 3.3 1.3 2.1 163 37
74405031033SPEC
8 files 3.3 1.55 2.6 155 39
74405042047SPEC
8 files 4.7 2.1 4.9 108 257440502
74405024047SPEC
9 files 4.7 1 1.9 270 307440502
74405031047SPEC
8 files 4.7 1.2 2.5 235 307440502
74405020047SPEC
8 files 4.7 0.8 1.5 444 357440502
74405042068SPEC
8 files 6.8 1.9 4.2 156 197440502
74405042100SPEC
8 files 10 1.7 3.5 216 167440502
74405024100SPEC
9 files 10 0.8 1.2 522 207440502
74405031100SPEC
8 files 10 0.85 1.45 474 217440502
74405020100SPEC
8 files 10 0.58 0.95 816 227440502
Order Code Data­sheet Simu­lation
744050420047SPEC
744050240047SPEC
744050310047SPEC
744050200047SPEC
74405042010SPEC
74405031010SPEC
74405024010SPEC
74405020010SPEC
74405042015SPEC
74405024015SPEC
74405031015SPEC
74405020015SPEC
74405042022SPEC
74405024022SPEC
74405031022SPEC
74405020022SPEC
74405042033SPEC
74405024033SPEC
74405031033SPEC
74405042047SPEC
74405024047SPEC
74405031047SPEC
74405020047SPEC
74405042068SPEC
74405042100SPEC
74405024100SPEC
74405031100SPEC
74405020100SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IR
(A)
ISAT
(A)
RDC max.
(mΩ)
fres
(MHz)
Design Kit Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.
