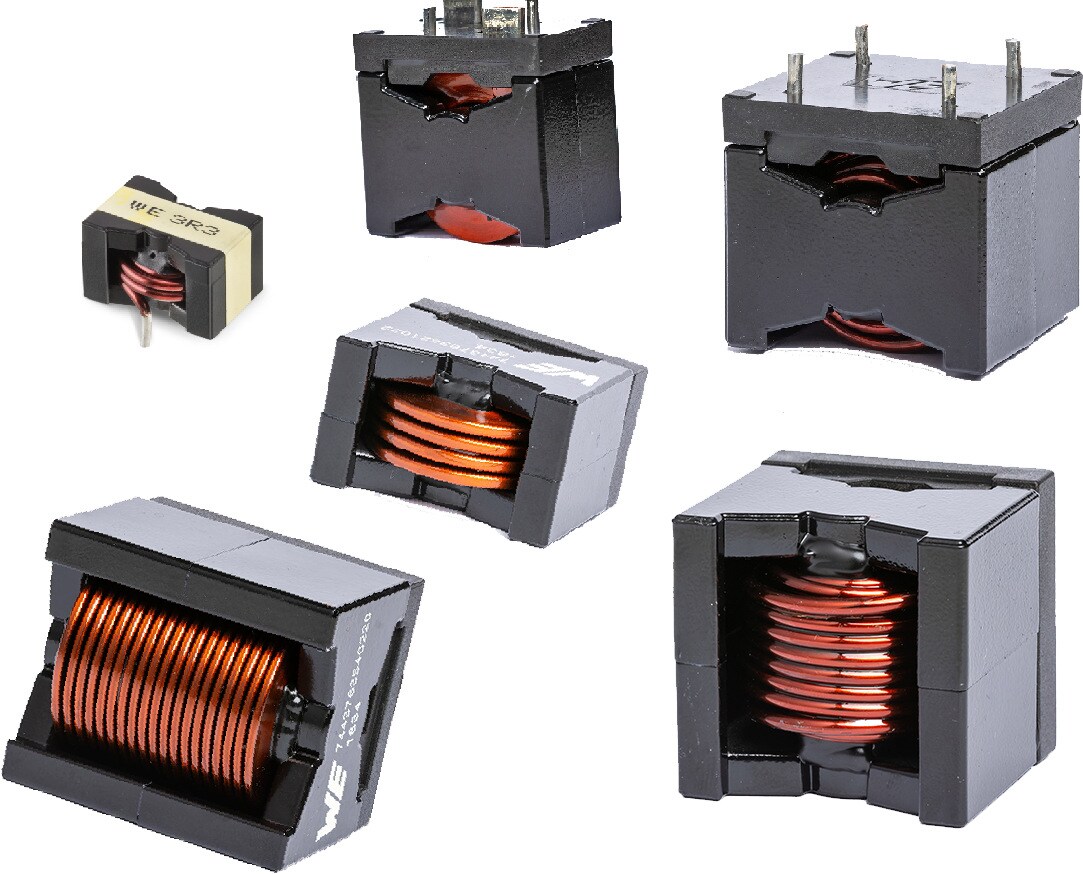

WE-HCFT THT High Current Inductor EXTENDED

Shielded

 SizeL
(mm)
W
(mm)
H
(mm)
MaterialMount

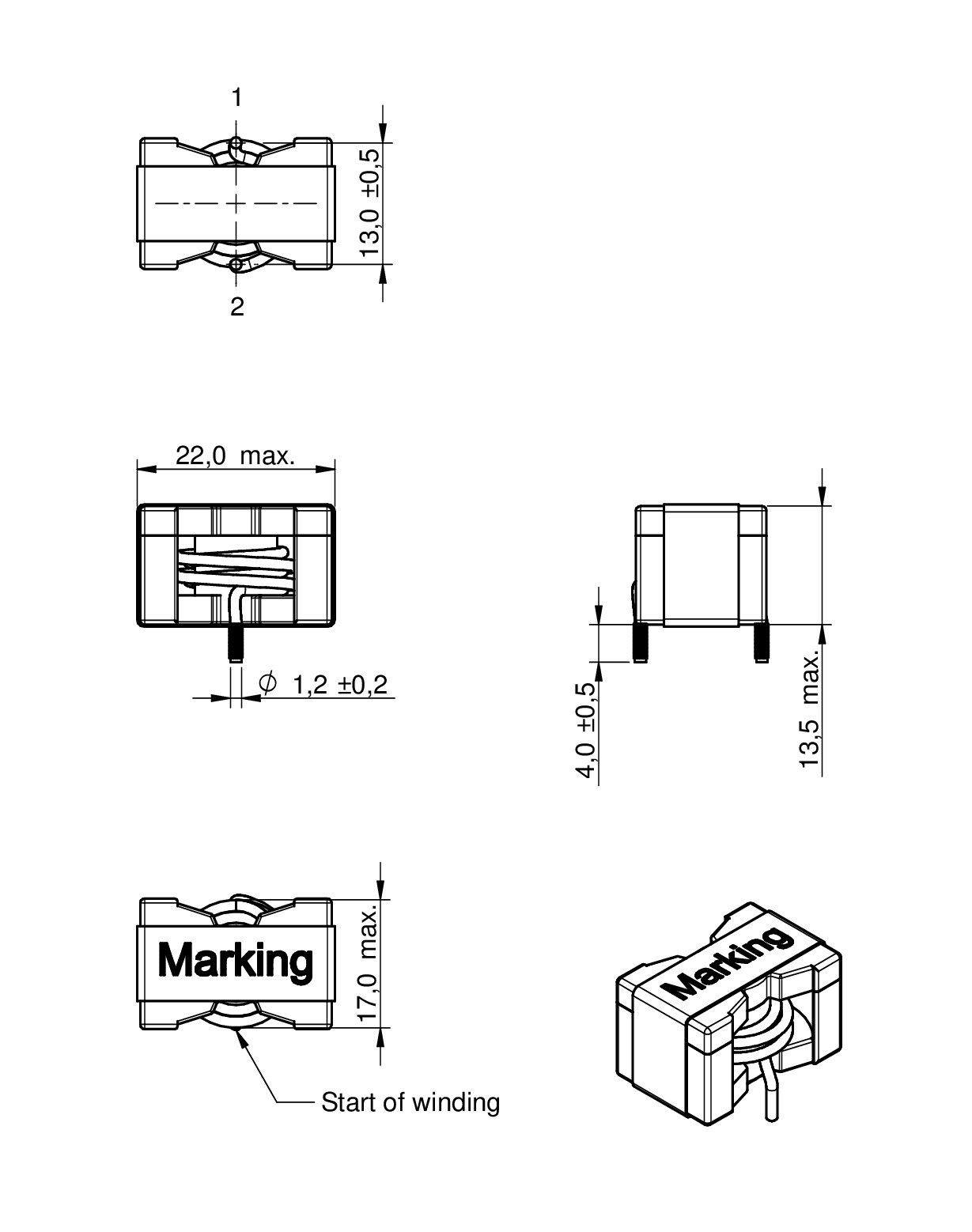

2012 17 22 13.5 - THT

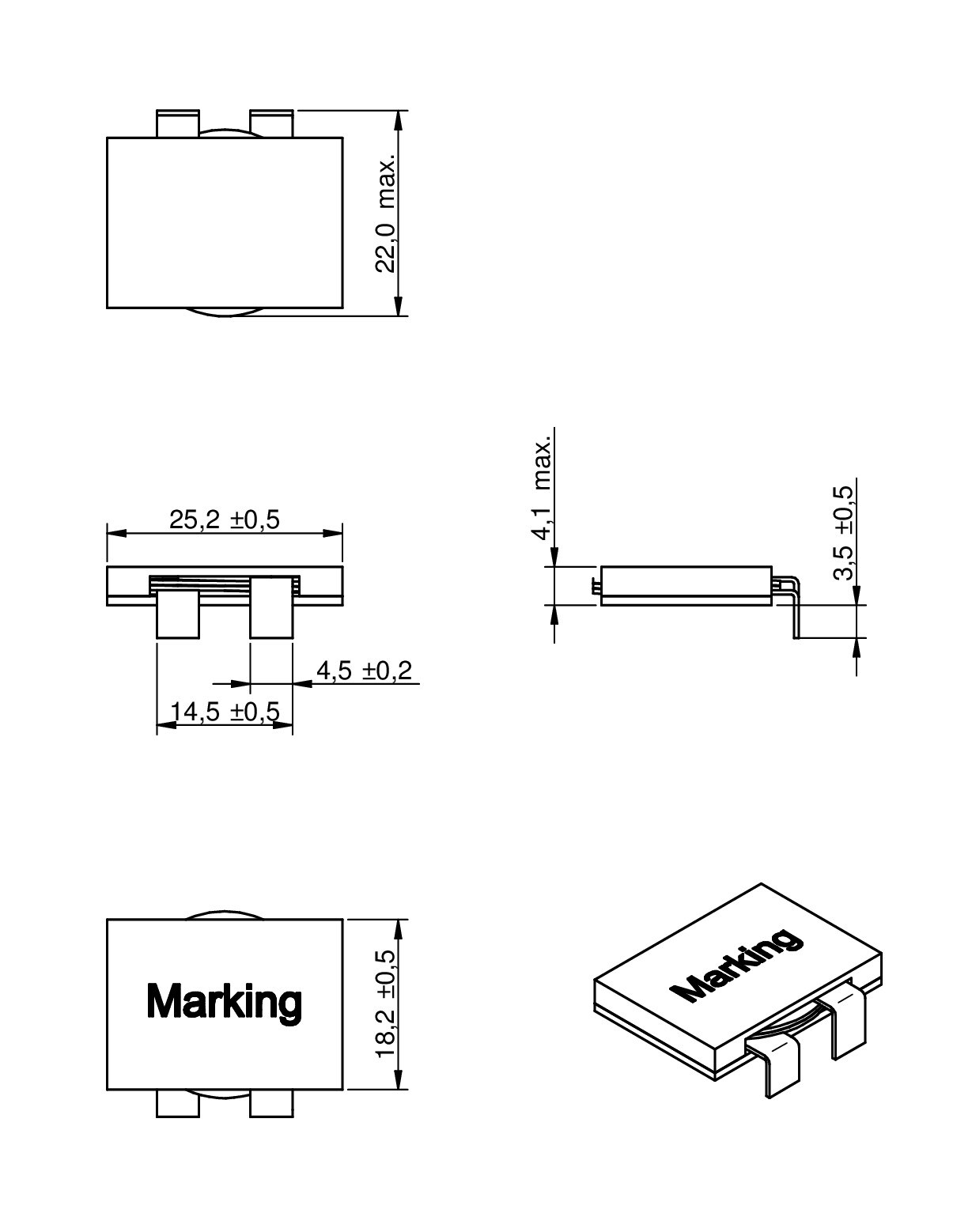

NEW 2504 22 25.7 4.1 Flat Wire THT

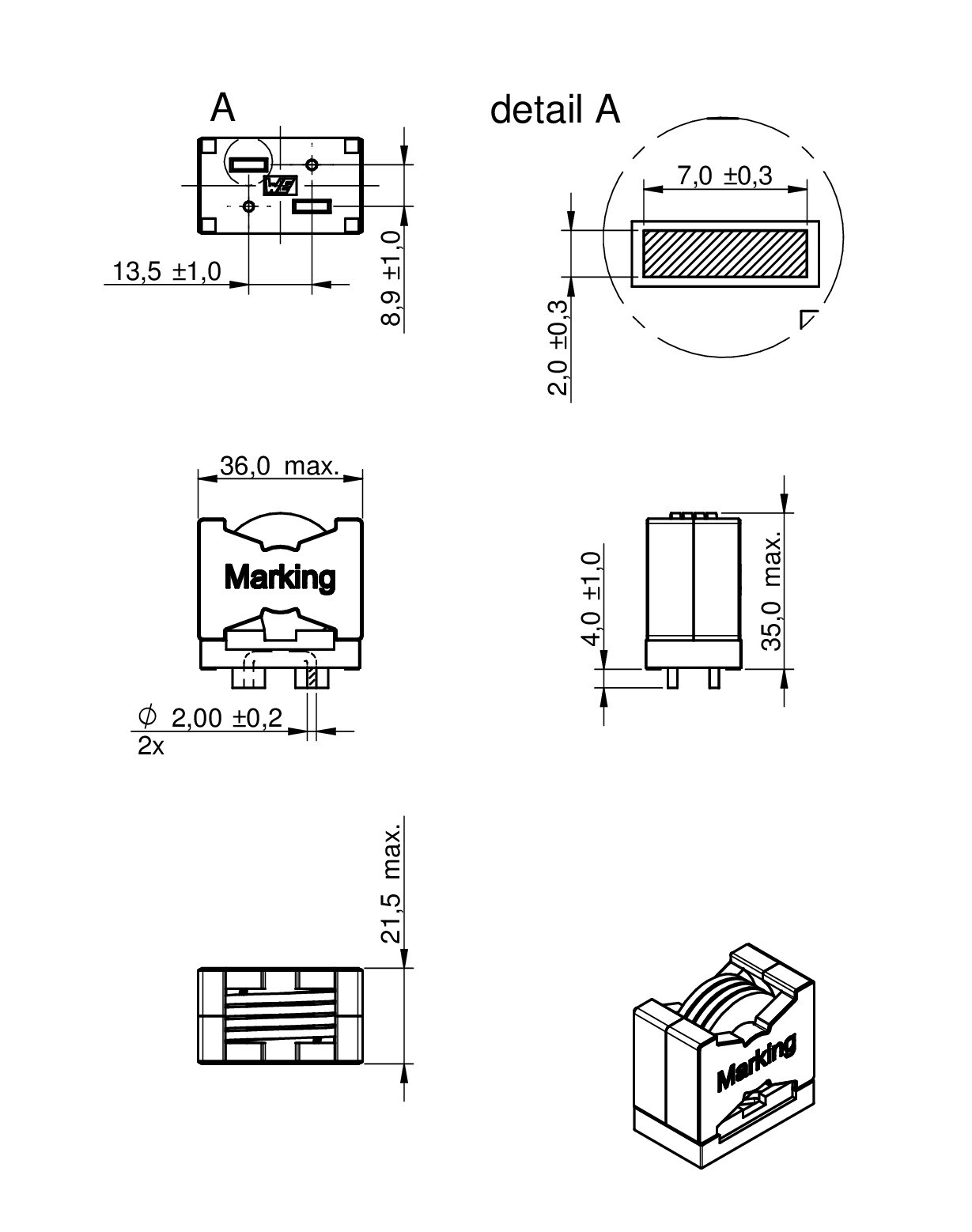

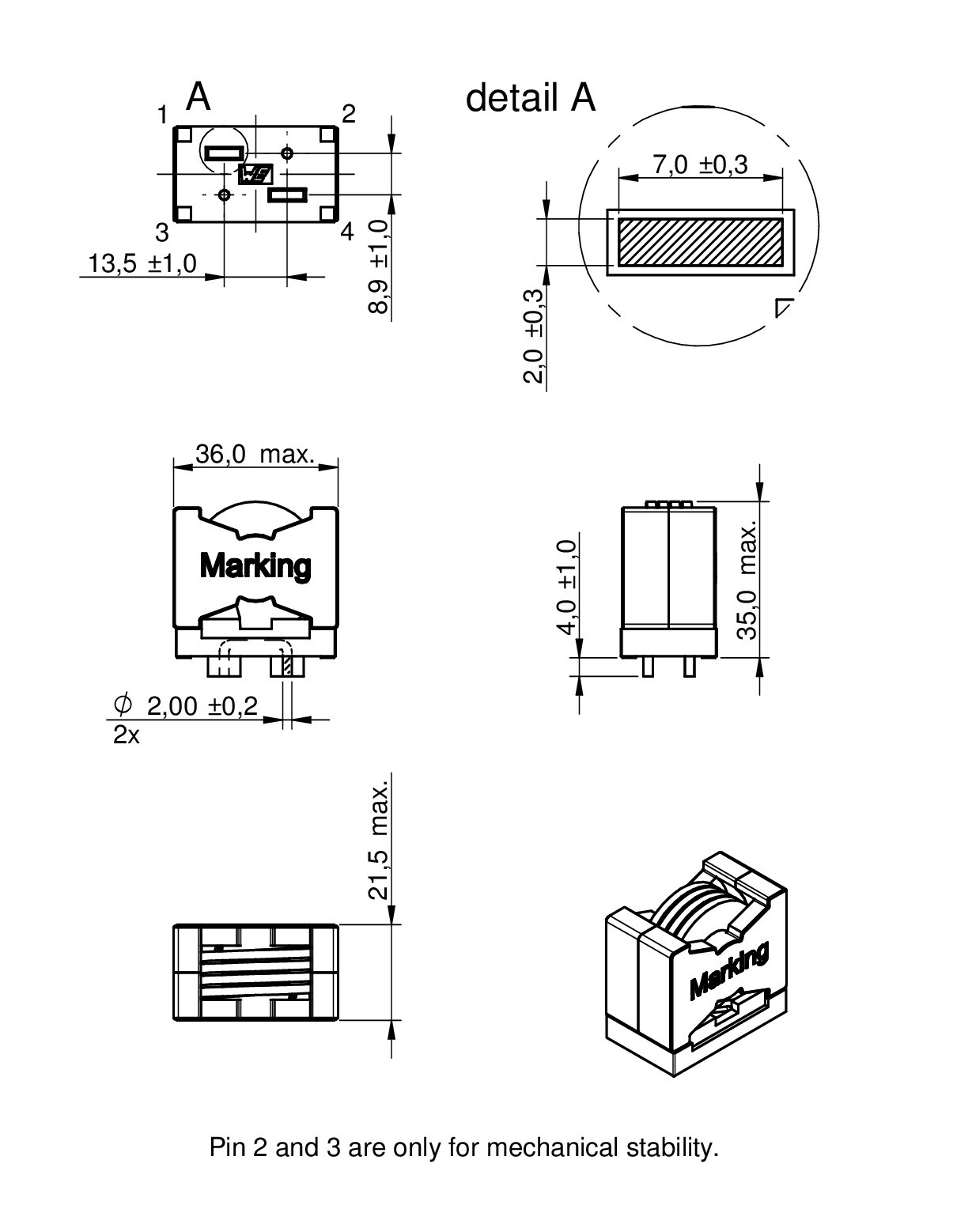

3521 21.5 36 35 - THT

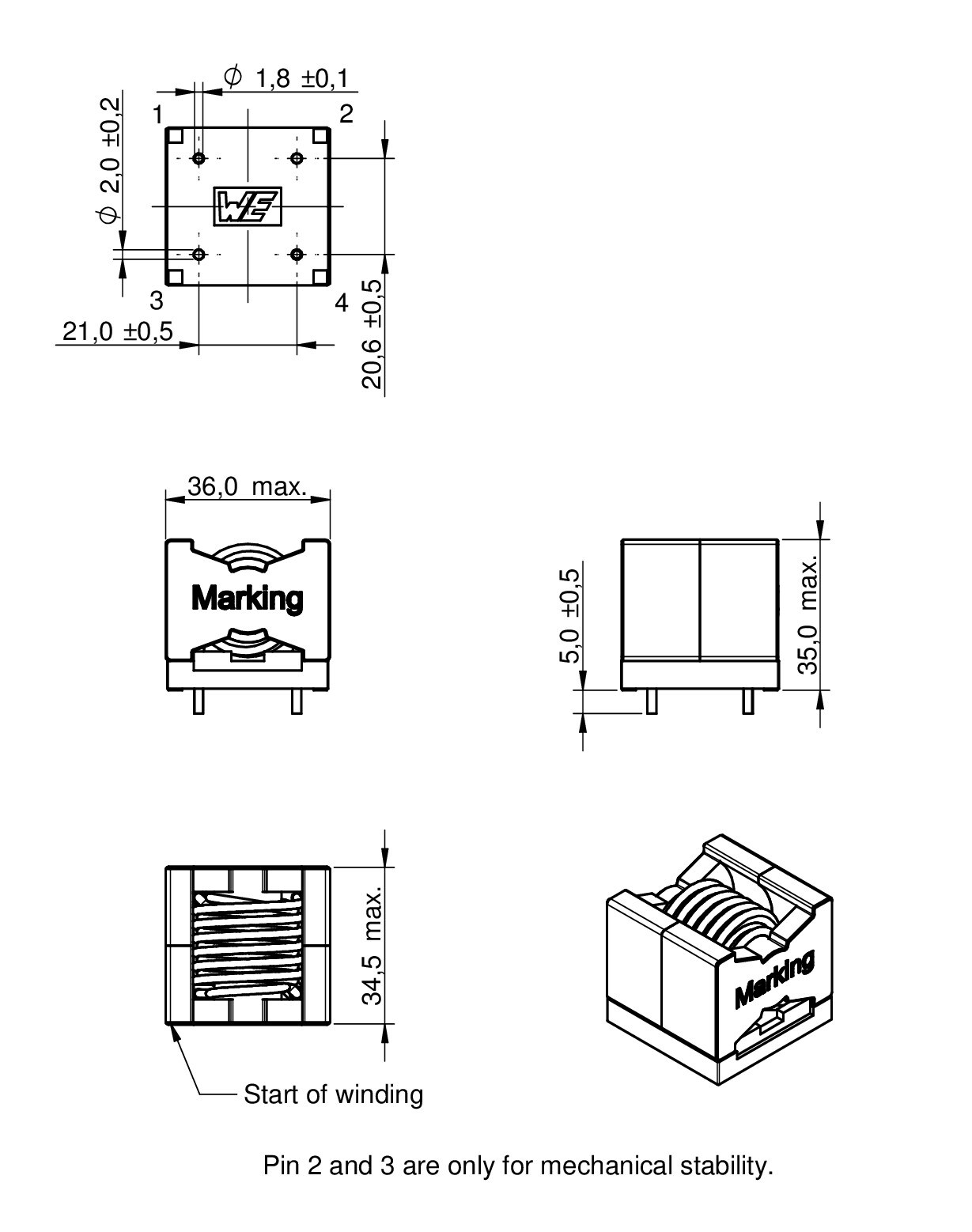

3533 34.5 36 35 - THT

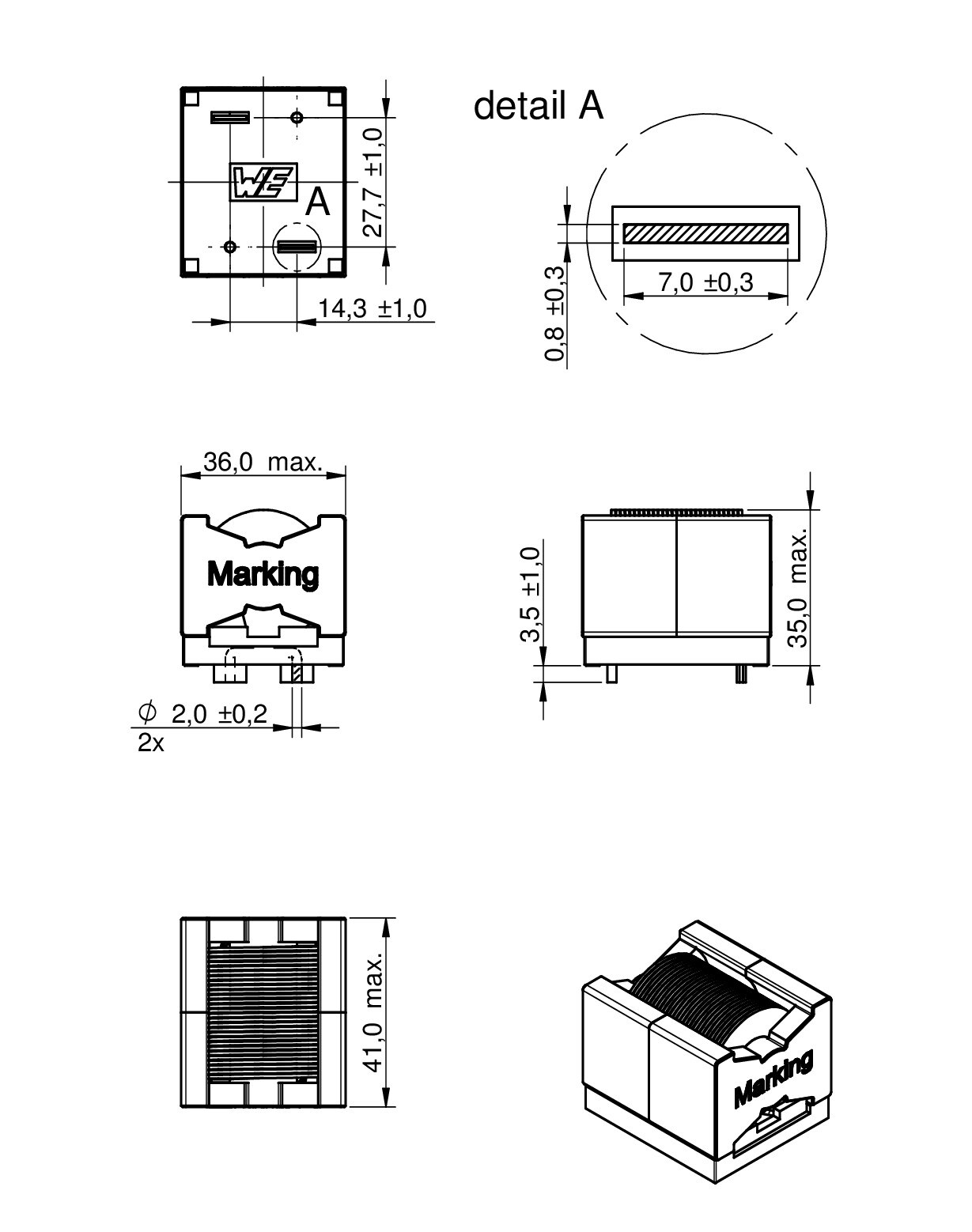

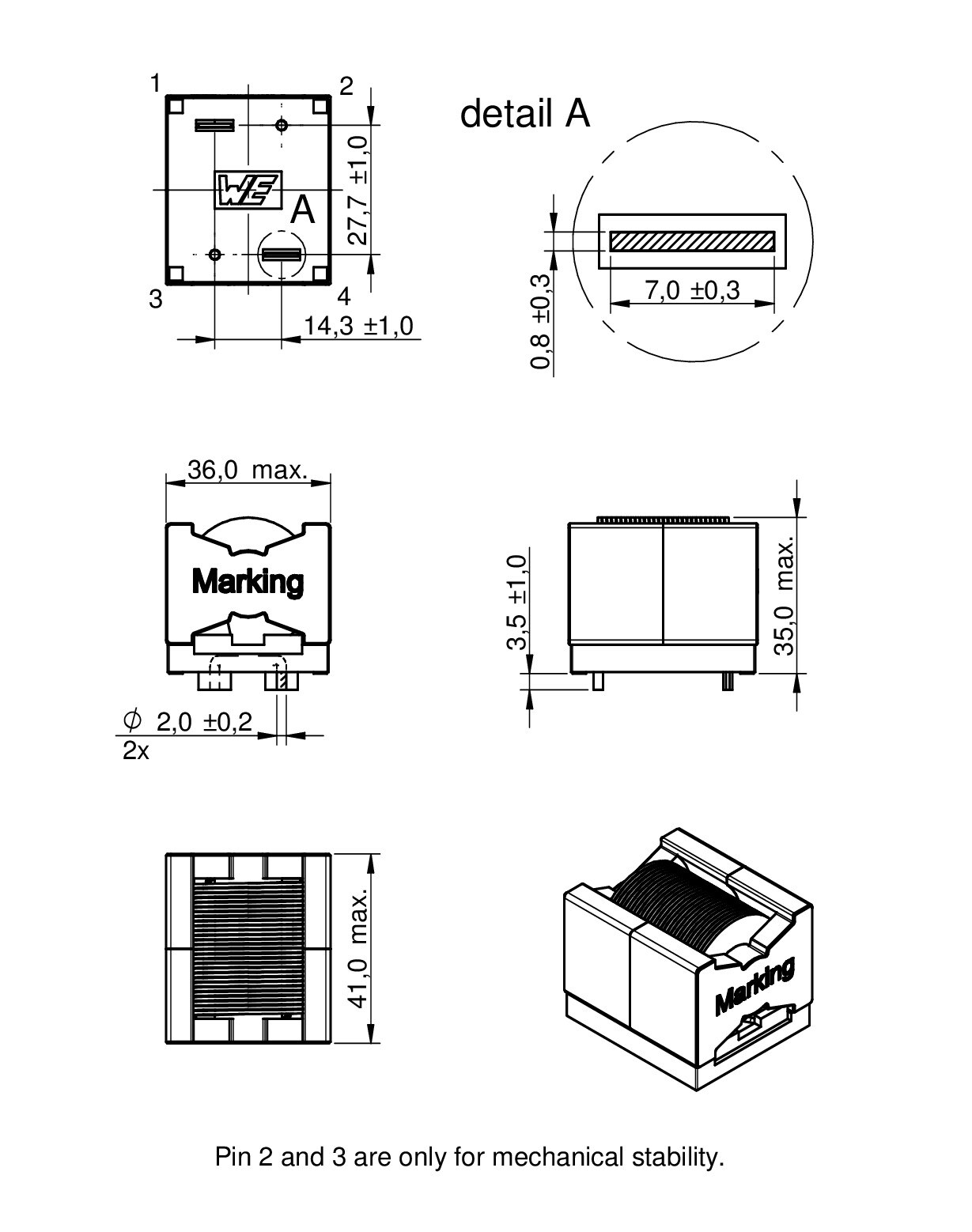

3540 41 36 35 - THT

Characteristics

  • THT version to assure the mechanical stability
  • Inductance ranging from 1.5 µH up to 65 µH
  • Current capability up to 75 A (Saturation >125 A)
  • Extremely low DCR
  • Low core losses (MnZn)
  • Magnetically shielded
  • Operating temperature -40 °C to +125 °C

Applications

  • Storage inductor for high efficiency DC/DC converters
  • High current Power Supplies
  • Battery chargers
  • Solar inverter

Products

All
2012
2504
3521
3533
3540
Order Code Data­sheet Simu­lation DownloadsL
(µH)
Tol. LIR
(A)
ISAT
(A)
RDC typ.
(mΩ)
RDC max.
(mΩ)
fres
(MHz)
Samples
NEW7443762504010SPEC
9 files 1 ±20% 39 33 0.86 0.95 38
7443763521015SPEC
9 files 1.5 ±20% 75 125 0.34 0.4 37
7443763521022SPEC
9 files 2.2 ±20% 75 120 0.34 0.4 30
NEW7443762504022SPEC
9 files 2.2 ±20% 30 23.8 1.78 1.96 23
7443782012033SPEC
9 files 3.3 ±20% 28.7 43 2.2 2.4 40
7443763521033SPEC
9 files 3.3 ±20% 75 91 0.34 0.4 25
7443782012047SPEC
9 files 4.7 ±20% 28.7 29.8 2.2 2.4 28
NEW7443762504047SPEC
9 files 4.7 ±20% 24 14 2.77 3.05 14.5
7443782012068SPEC
9 files 6.8 ±20% 20.6 30.6 4.55 5 21
7443763540068SPEC
8 files 6.8 ±20% 56.7 76.5 1.01 1.2 16
NEW7443762504068SPEC
9 files 6.8 ±20% 20 12.6 4.21 4.63 11
7443782012082SPEC
9 files 8.2 ±20% 20.6 25.6 4.55 5 18
7443782012100SPEC
9 files 10 ±20% 20.6 20.6 4.55 5 17
7443763540100SPEC
8 files 10 ±20% 56.7 62 1.01 1.2 14
NEW7443762504100SPEC
9 files 10 ±20% 20 8.8 4.21 4.63 8.4
7443782012150SPEC
9 files 15 ±20% 20.6 12.9 4.55 5 13
7443763540150SPEC
9 files 15 ±20% 45.3 51.6 1.77 2.16 12
7443783533220SPEC
9 files 22 ±20% 23.2 49.4 8 8.8 8.15
7443763540220SPEC
9 files 22 ±20% 40.6 42 2.63 3.2 9
7443783533330SPEC
9 files 33 ±20% 22 39.2 9 9.9 6.08
7443763540330SPEC
9 files 33 ±20% 32 38.9 5.67 6.38 7
7443783533470SPEC
9 files 47 ±20% 19.3 32.3 11.8 12.98 5.1
7443763540470SPEC
9 files 47 ±20% 32 31 5.67 6.38 6
7443783533650SPEC
9 files 65 ±20% 17.2 26.6 13.13 14.44 4.28
Order Code Data­sheet Simu­lation
NEW7443762504010SPEC
7443763521015SPEC
7443763521022SPEC
NEW7443762504022SPEC
7443782012033SPEC
7443763521033SPEC
7443782012047SPEC
NEW7443762504047SPEC
7443782012068SPEC
7443763540068SPEC
NEW7443762504068SPEC
7443782012082SPEC
7443782012100SPEC
7443763540100SPEC
NEW7443762504100SPEC
7443782012150SPEC
7443763540150SPEC
7443783533220SPEC
7443763540220SPEC
7443783533330SPEC
7443763540330SPEC
7443783533470SPEC
7443763540470SPEC
7443783533650SPEC
