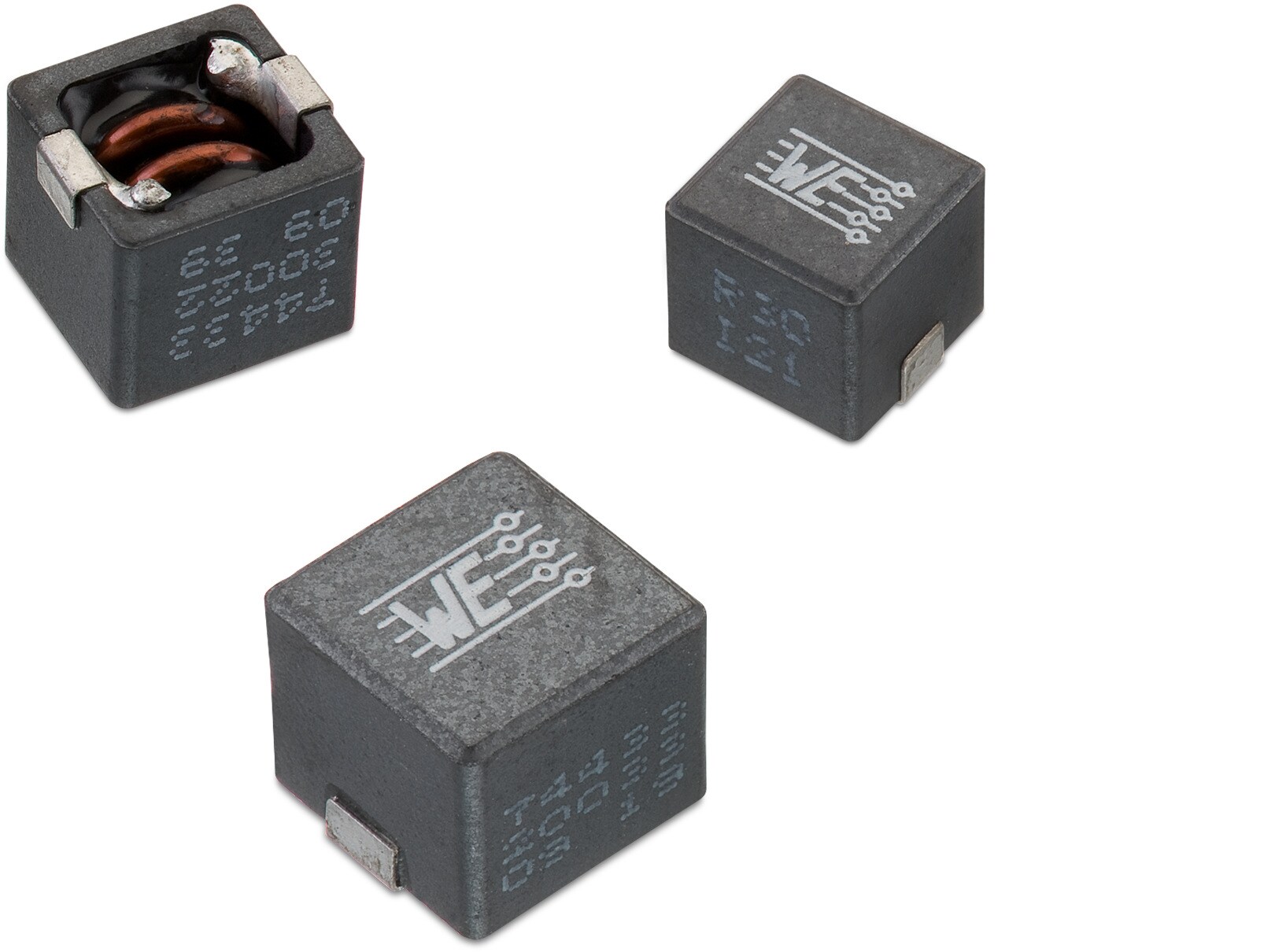

WE-HCC SMT High Current Cube Inductor

Size	L (mm)	W (mm)	H (mm)	Material	Mount
8070	8.4	7.9	7.2	Ferrite	SMT
1090	10.9	10	9.3	Ferrite	SMT
1210 ferrite	12.1	11.4	9.5	Ferrite	SMT
1210 iron powder	12.1	11.4	9.5	Iron Powder	SMT

LTSpice files

LT
LTSpice_WE-HCC (rev22a).zip
|
2.9 KB

Characteristics

Magnetically shielded
Operating temperature: –40 °C to +125 °C
Recommended solder profile: Reflow
Current capability up to 27 A
Excellent saturation characteristics

Applications

Filter choke for DC/DC converter
Single and polyphase buck converter
Filter choke for motor electronics
Input filter inductor for DC/DC converter

Application Notes

Products

All

8070

1090

1210 ferrite

1210 iron powder

Order Code	Datasheet	Downloads	Status	L (µH)	I_RP,40K (A)	I_SAT,10% (A)	I_SAT,30% (A)	R_{DC max.} (mΩ)	Material	L_R (µH)	f_res (MHz)	Design Kit
7443330022	SPEC	9 files EDA models: Components ZIP ALT WE-HCC (rev25a).IntLib \| 322.5 KB CDS Cadence_WE-HCC (rev25a).zip \| 3.8 MB EAG Eagle_WE-HCC (rev24b).lbr \| 55.5 KB KIC KiCad_WE-HCC (rev25a).zip \| 1.2 MB CAD files ZIP 3D 3D_WE-HCC-1090_7443330xxx_3D (rev1).pdf \| 843.7 KB IGS WE-HCC-1090 (rev1).igs \| 6.5 MB STP WE-HCC-1090 (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WE-HCC (rev22a).zip \| 9.6 KB SCS Spectre_WE-HCC (rev24a).mod \| 11.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.22	35.2	90.5	96	1.6	Ferrite	0.22	300	744332
