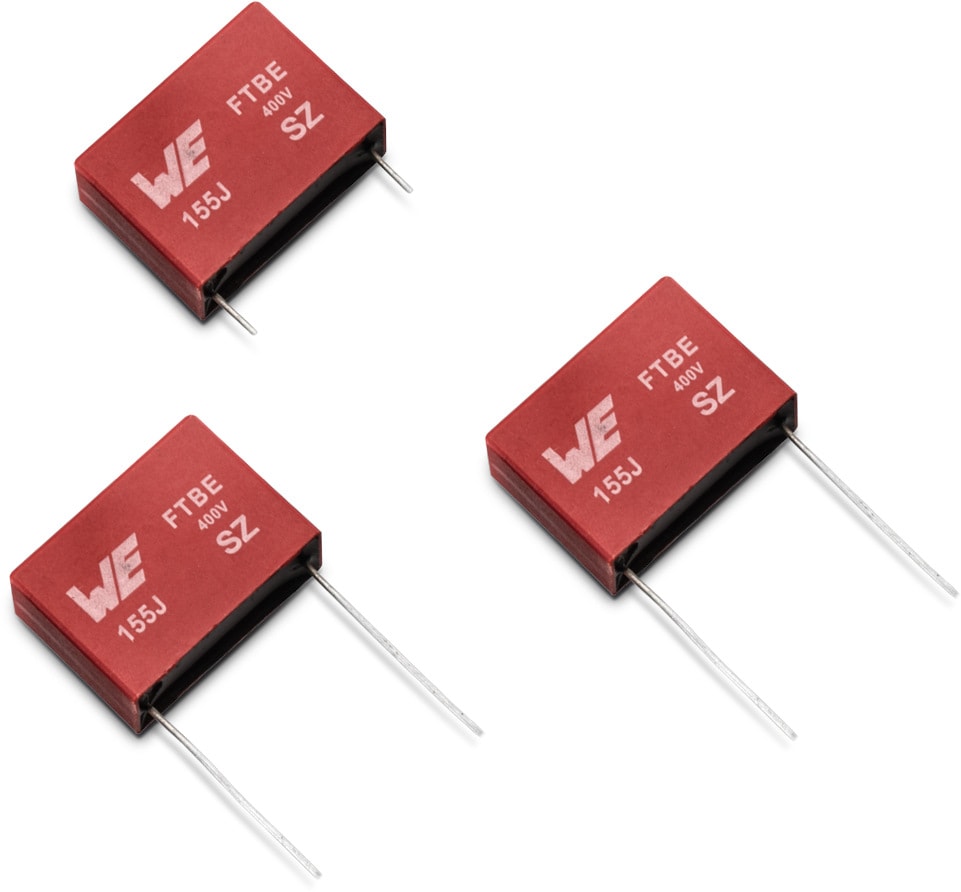

WCAP-FTBE Film Capacitors

Boxed Type Metallized Polyester

Characteristics

  • General purpose product series with max. operating temperature of +85 °C
  • Self-healing properties
  • High voltage and volumetric capacity possible
  • Mounting style: Boxed THT
  • Dielectric: Polyester
  • Capacitance range: 10 nF ‒ 6.8 µF
  • Capacitance tolerance: ±10 %
  • Voltage range (UR): 100 V(DC) ‒ 1 kV(DC)
  • Operating temperature: -40 °C up to + 85 °C
  • Pitch: 7.5 / 10.0 / 15.0 / 22.5 / 27.5 / 37.5 mm
  • Recommended soldering: Wave soldering

Applications

  • Filtering
  • Smoothing
  • e.g. Monitor, electrical ballast

Products

All
7.5 mm
10 mm
15 mm
22.5 mm
27.5 mm
37.5 mm
Order Code Data­sheet Simu­lation Downloads C VR
(V (DC))
dV/dt
(V/µs)
DF @ 1 kHz
(%)

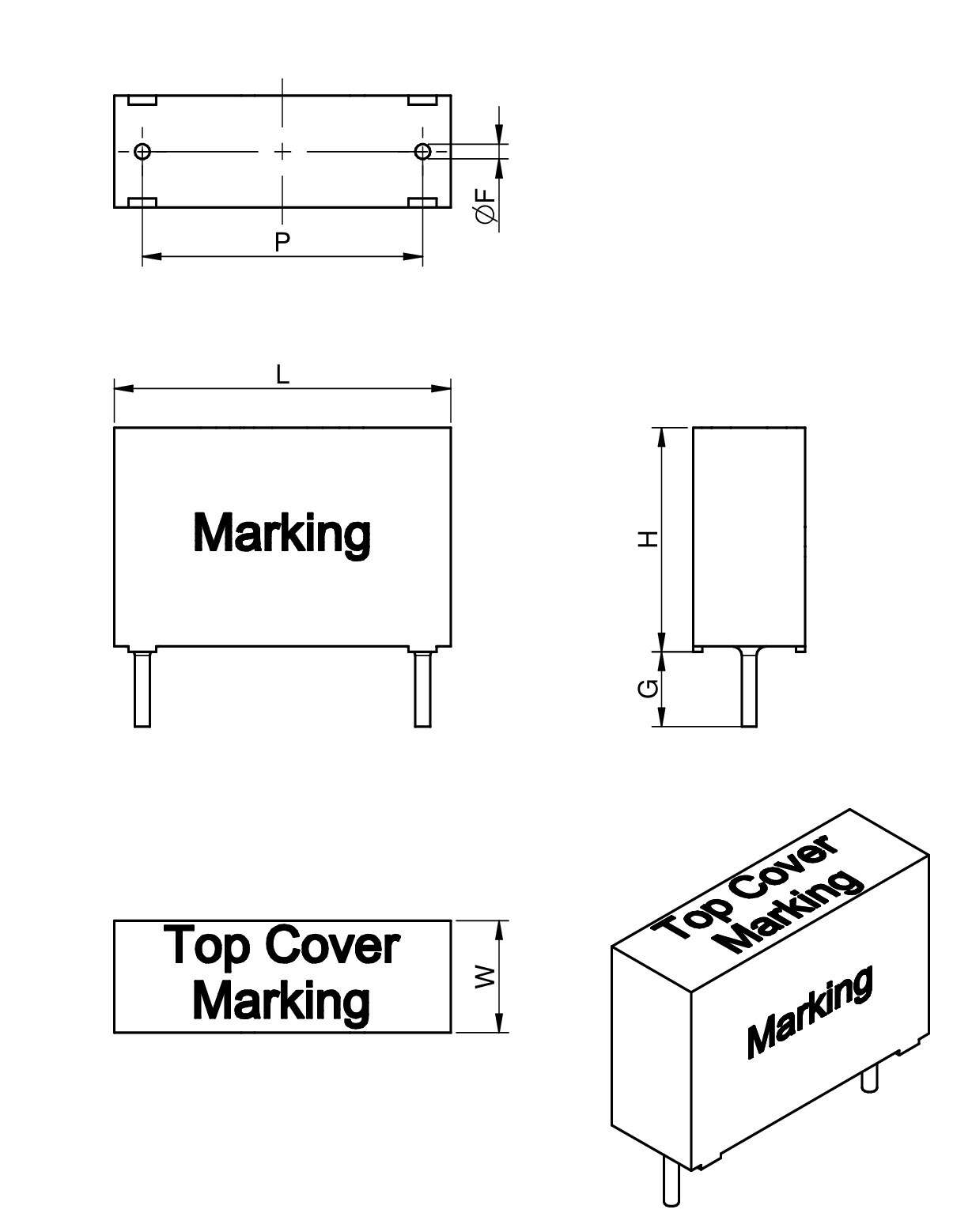

RISO Operating Temperature Pitch
(mm)
L
(mm)
W
(mm)
H
(mm)
Technical Reference Design Kit Samples
890493422002CS
ALT EAG CAD LTS PSP CAD 10  nF 1000 160 1 9000  MΩ -40 °C up to +85 °C 7.5 10.5 6 12 MPSP075103KA00DCPP45004 890020
890493423001CS
ALT EAG CAD LTS PSP CAD 15  nF 1000 83 1 9000  MΩ -40 °C up to +85 °C 10 13 5 11 MPSP010153KA00DCPP55004
890493425001CS
ALT EAG CAD LTS PSP CAD 22  nF 1000 27 1 9000  MΩ -40 °C up to +85 °C 15 18 5 11 MPSP015223KA00DCPP45004
890303422005CS
ALT EAG CAD LTS PSP CAD 47  nF 630 100 1 9000  MΩ -40 °C up to +85 °C 7.5 10.5 6 12 MPSP075473K630DCPP45004
890283422001CS
ALT EAG CAD LTS PSP CAD 68  nF 400 44 1 9000  MΩ -40 °C up to +85 °C 7.5 10.5 5 11 MPSP075683K400DCPP45004
890303423005CS
ALT EAG CAD LTS PSP CAD 68  nF 630 52 1 9000  MΩ -40 °C up to +85 °C 10 13 5.5 11 MPSP010683K630DCPP55004 890020
890283423001CS
ALT EAG CAD LTS PSP CAD 100  nF 400 34 1 9000  MΩ -40 °C up to +85 °C 10 13 5 11 MPSP010104K400DCPP55004 890020
890303425004CS
ALT EAG CAD LTS PSP CAD 100  nF 630 28 1 9000  MΩ -40 °C up to +85 °C 15 18 6 12 MPSP015104K630DCPP45004
890493425009CS
ALT EAG CAD LTS PSP CAD 100  nF 1000 44 1 9000  MΩ -40 °C up to +85 °C 15 18 8.5 15 MPSP015104KA00DCPP45004 890020
890283422005CS
ALT EAG CAD LTS PSP CAD 150  nF 400 46 1 9000  MΩ -40 °C up to +85 °C 7.5 10.5 6 12 MPSP075154K400DCPP45004 890020
890273422002CS
ALT EAG CAD LTS PSP CAD 220  nF 250 38 1 9000  MΩ -40 °C up to +85 °C 7.5 10.5 6 12 MPSP075224K250DCPP45004 890020
890273423002CS
ALT EAG CAD LTS PSP CAD 220  nF 250 23 1 9000  MΩ -40 °C up to +85 °C 10 13 5 11 MPSP010224K250DCPP55004
890283425002CS
ALT EAG CAD LTS PSP CAD 220  nF 400 12 1 9000  MΩ -40 °C up to +85 °C 15 18 5 11 MPSP015224K400DCPP45004
890493426011CS
ALT EAG CAD LTS PSP CAD 220  nF 1000 27 1 9000  MΩ -40 °C up to +85 °C 22.5 26 9 18 MPSP225224KA00DCPP35004 890020
890273425001CS
ALT EAG CAD LTS PSP CAD 330  nF 250 8 1 9000  MΩ -40 °C up to +85 °C 15 18 5 11 MPSP015334K250DCPP45004
890283426004CS
ALT EAG CAD LTS PSP CAD 470  nF 400 11 1 3000  Ω x F -40 °C up to +85 °C 22.5 26 6 15 MPSP225474K400DCPP45004
890303426008CS
ALT EAG CAD LTS PSP CAD 470  nF 630 20 1 3000  Ω x F -40 °C up to +85 °C 22.5 26 9 18 MPSP225474K630DCPP35004
890493427007CS
ALT EAG CAD LTS PSP CAD 470  nF 1000 22 1 3000  Ω x F -40 °C up to +85 °C 27.5 31 11 20 MPSP275474KA00DCPP35004 890020
890283425008CS
ALT EAG CAD LTS PSP CAD 680  nF 400 18 1 3000  Ω x F -40 °C up to +85 °C 15 18 8.5 15 MPSP015684K400DCPP45004 890020
890273425007CS
ALT EAG CAD LTS PSP CAD 1  µF 250 11 1 3000  Ω x F -40 °C up to +85 °C 15 18 7 13 MPSP015105K250DCPP45004 890020
890283426008CS
ALT EAG CAD LTS PSP CAD 1  µF 400 13 1 3000  Ω x F -40 °C up to +85 °C 22.5 26 9 18 MPSP225105K400DCPP35004 890020
890303427009CS
ALT EAG CAD LTS PSP CAD 1.5  µF 630 17 1 3000  Ω x F -40 °C up to +85 °C 27.5 31 15 24.5 MPSP275155K630DCPP25004 890020
890263425004CS
ALT EAG CAD LTS PSP CAD 2.2  µF 100 9 1 3000  Ω x F -40 °C up to +85 °C 15 18 8.5 15 MPSP015225K100DCPP45004 890020
890263426001CS
ALT EAG CAD LTS PSP CAD 2.2  µF 100 5 1 3000  Ω x F -40 °C up to +85 °C 22.5 26 6 15 MPSP225225K100DCPP45004
890263426003CS
ALT EAG CAD LTS PSP CAD 3.3  µF 100 5 1 3000  Ω x F -40 °C up to +85 °C 22.5 26 7 16.5 MPSP225335K100DCPP35004 890020
890283427007CS
ALT EAG CAD LTS PSP CAD 3.3  µF 400 11 1 3000  Ω x F -40 °C up to +85 °C 27.5 31 15 24.5 MPSP275335K400DCPP25004
890303428008CS
ALT EAG CAD LTS PSP CAD 3.3  µF 630 12 1 3000  Ω x F -40 °C up to +85 °C 37.5 42 17 30 MPSP375335K630DCPP25004
890273427005CS
ALT EAG CAD LTS PSP CAD 4.7  µF 250 6 1 3000  Ω x F -40 °C up to +85 °C 27.5 31 11 20 MPSP275475K250DCPP35004
890493428013CS
ALT EAG CAD LTS PSP CAD 4.7  µF 1000 16 1 3000  Ω x F -40 °C up to +85 °C 37.5 42 31 43 MPSP375475KA00DCPP25004
890283428007CS
ALT EAG CAD LTS PSP CAD 6.8  µF 400 9 1 3000  Ω x F -40 °C up to +85 °C 37.5 42 20.5 34 MPSP375685K400DCPP25004 890020
Order Code Data­sheet Simu­lation
890493422002CS
890493423001CS
890493425001CS
890303422005CS
890283422001CS
890303423005CS
890283423001CS
890303425004CS
890493425009CS
890283422005CS
890273422002CS
890273423002CS
890283425002CS
890493426011CS
890273425001CS
890283426004CS
890303426008CS
890493427007CS
890283425008CS
890273425007CS
890283426008CS
890303427009CS
890263425004CS
890263426001CS
890263426003CS
890283427007CS
890303428008CS
890273427005CS
890493428013CS
890283428007CS
Samples
Order Code Data­sheet Simu­lation Downloads C VR
(V (DC))
dV/dt
(V/µs)
DF @ 1 kHz
(%)
RISO Operating Temperature Pitch
(mm)
L
(mm)
W
(mm)
H
(mm)
Technical Reference Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
