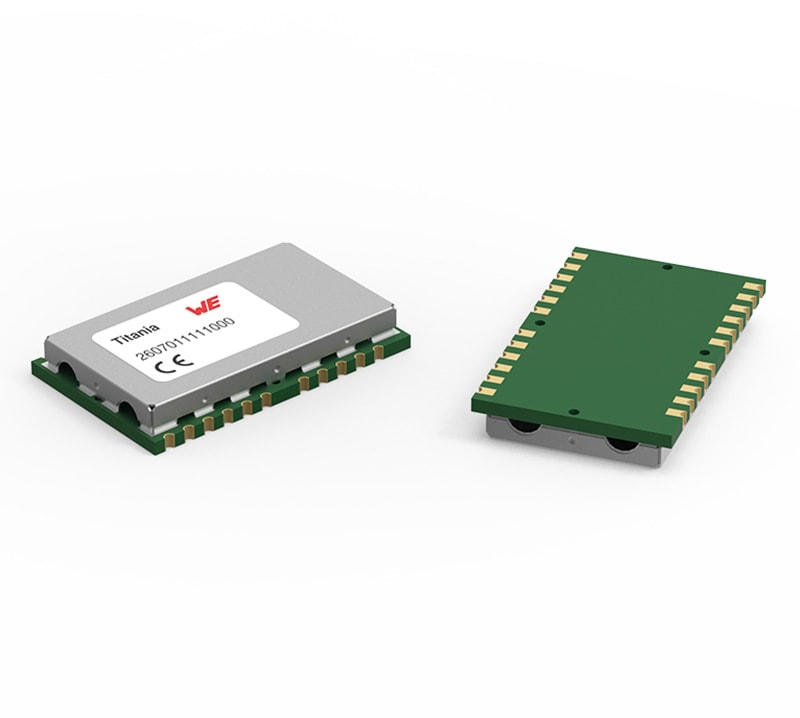

Titania - Radio Module 169 MHz (AMB3626)

Characteristics

  • High Performance OEM radio module
  • 169 MHz SRD frequency band
  • Range up to 3000 m line of sight
  • RF output power up to 15 dBm
  • Small form factor: 27 x 17 x 4.0 mm
  • Software stack with comprehensive functions
  • Addressing: max. 255 nodes in 255 networks
  • Configuration via UART interface
  • Tape & Reel packing (optional) for SMT mounting
  • ACC Software - PC Tool to configure and evaluate the module
  • Wireless Connectivity SDK

Application Notes

See what the firmware developed by Würth Elektronik can do - the WE-ProWare

Products

Order Code Data­sheet Simu­lation Man­ual Downloads Name f
(MHz)
dLoS
(m)
PTx, 50 Ω
(dBm)
Rxsens, 50 Ω
(dBm)
VDD min.
(V)
VDD max.
(V)
Rb max.
(kbps)
L
(mm)
W
(mm)
H
(mm)
Antenna USB Radio Stick Evaluation Board Offer
2607011111000
STE ALT EAG IGS Titania 169.4125 - 169.475 3000 15 -120 2 3.6 25 17 27 3.8 Helike - 169 MHz
2607046211001
2607019211001
Order Code Data­sheet Simu­lation
2607011111000
Offer
