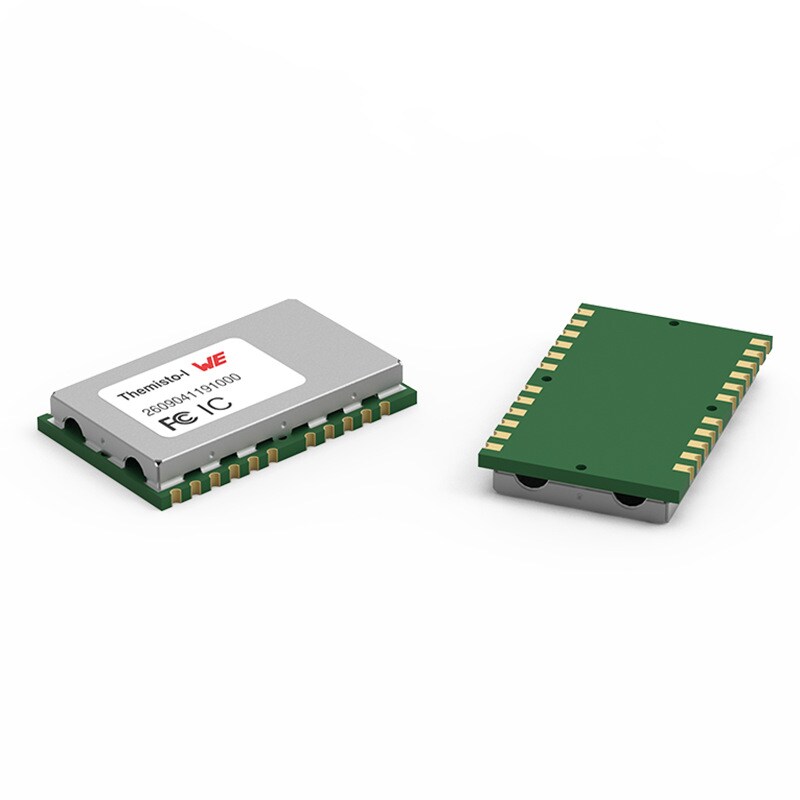

Themisto - Radio Module 915 MHz NEW

Characteristics

  • 915 MHz radio module
  • Range up to 10.5 km line of sight
  • RF output power up to 25 dBm
  • Small size: 17 x 27 x 3.8 mm
  • Integrated software stack with extensive functions
  • Flexible addressing (max. 255 nodes per network)
  • FCC 15.247 (wideband)
  • Configuration via UART interface
  • Available on Tape & Reel for SMT mounting
  • ACC Software - PC Tool to configure and evaluate the modul
  • Wireless Connectivity SDK

Application Notes

See what the firmware developed by Würth Elektronik can do - the WE-ProWare

Products

Order Code Data­sheet Simu­lation Man­ual Downloads Name f
(MHz)
dLoS
(m)
PTx, 50 Ω
(dBm)
Rxsens, 50 Ω
(dBm)
VDD min.
(V)
VDD max.
(V)
Rb max.
(kbps)
ANTConn L
(mm)
W
(mm)
H
(mm)
Antenna Evaluation Board Samples
2609041191000
ALT EAG Themisto-I 902.5 - 927.5 10500 25 -111 2.2 3.7 400 RF pad 17 27 3.8 Hydra-I - 915 MHz
2609049291001
Order Code Data­sheet Simu­lation
2609041191000
Samples
