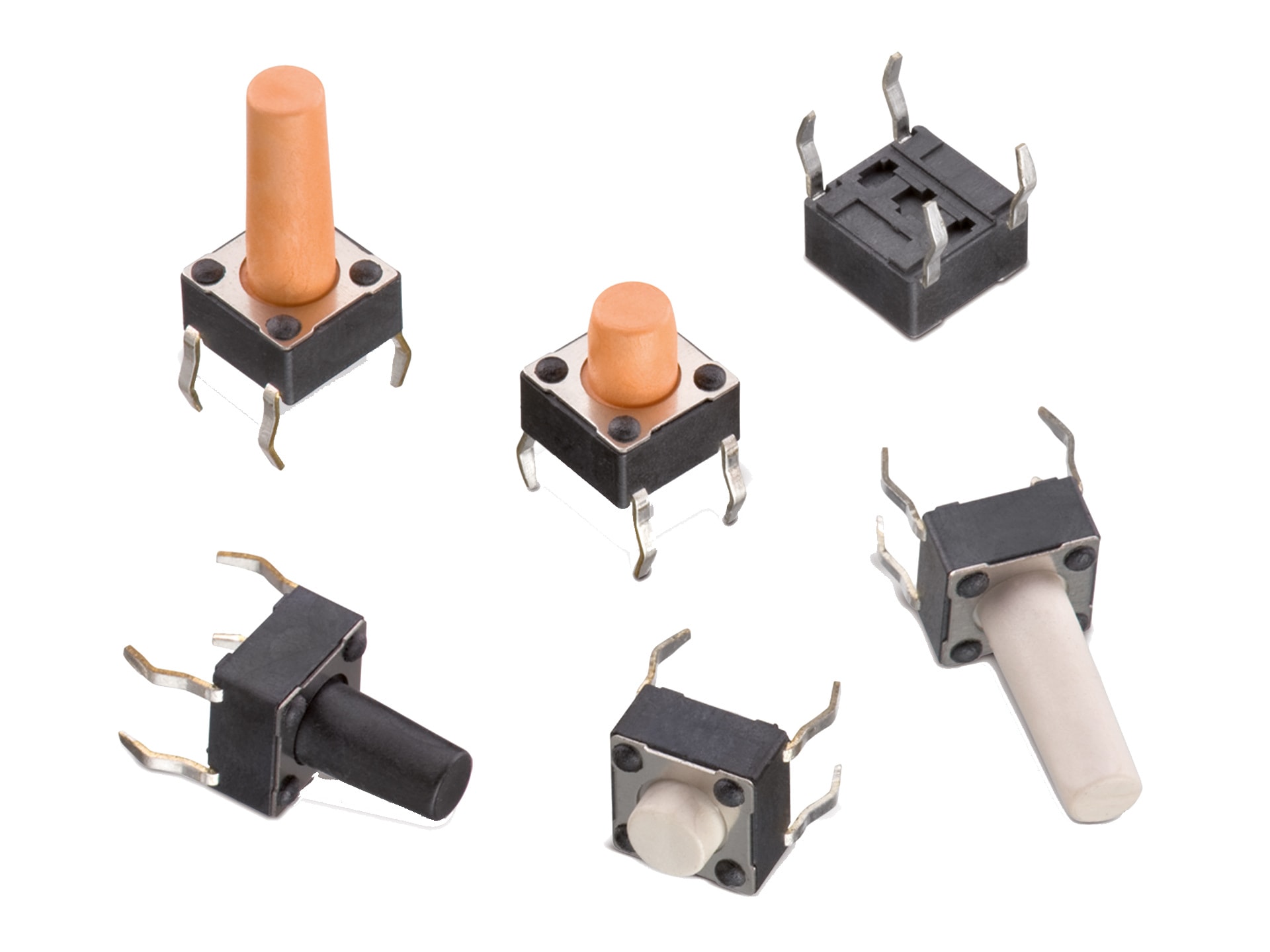

WS-TATV THT Tact Switch 6x6 mm

Electrical Properties
IR50 mA
VR12 V (DC)
Contact Resistance Initial100 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Operation Force160 g; 260 g; 360 g
Electrical Life200000 Cycles; 1000000 Cycles
Material Properties
Actuator MaterialLCP
Actuator Flammability RatingUL94 V-0
Frame MaterialPPA
Frame Flammability RatingUL94 V-0
Contact PlatingSilver
Terminal PlatingSilver
General Information
Operating Temperature-40 up to +85 °C
WashableNo
Ingress Protection CodeNone
Packaging Properties
PackagingBulk

Time to Switch.

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test.

Video and more

Products

Order Code Data­sheet DownloadsH
(mm)
Operation Force
(g)
Electrical Life
(Cycles)
Actuator ColorPackaging Unit Samples
430186043716SPEC
5 files 4.3 160 1000000 Black 200
430156043726SPEC
5 files 4.3 260 200000 White 200
430156043736SPEC
5 files 4.3 360 200000 Salmon 200
430186050716SPEC
5 files 5 160 1000000 Black 200
430156050726SPEC
5 files 5 260 200000 White 200
430156050736SPEC
5 files 5 360 200000 Salmon 200
430186070716SPEC
5 files 7 160 1000000 Black 200
430156070726SPEC
5 files 7 260 200000 White 200
430156070736SPEC
5 files 7 360 200000 Salmon 200
430186095716SPEC
5 files 9.5 160 1000000 Black 200
430156095726SPEC
5 files 9.5 260 200000 White 200
430156095736SPEC
5 files 9.5 360 200000 Salmon 200
Order Code Data­sheet
430186043716SPEC
430156043726SPEC
430156043736SPEC
430186050716SPEC
430156050726SPEC
430156050736SPEC
430186070716SPEC
430156070726SPEC
430156070736SPEC
430186095716SPEC
430156095726SPEC
430156095736SPEC
