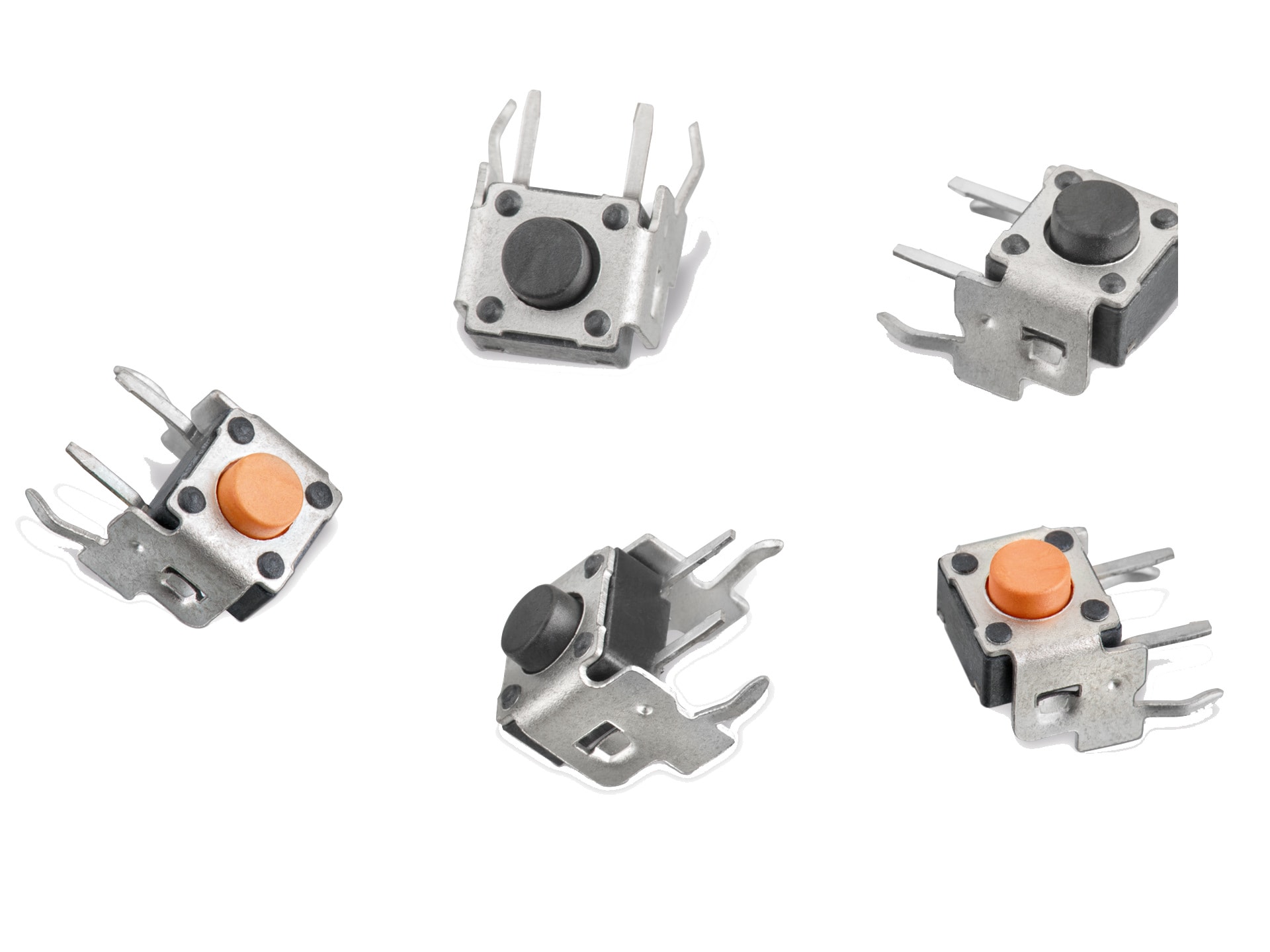

WS-TATU THT Tact Switch 6x6 mm Right Angled Type with ground terminal

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	No
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	PPA
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 g; 260 g; 360 g
Electrical Life	200000 Cycles

Packaging Properties
Packaging	Bulk

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	H(mm)	Operation Force(g)	Electrical Life(Cycles)	Actuator Color	Washable	Vaporphase process
431256031716	3.15 mm, 160 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560317x6 (rev1).igs \| 1.8 MB STP STP_4312560317x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.15 mm	Operation Force160 g	Electrical Life200000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
431256031726	3.15 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560317x6 (rev1).igs \| 1.8 MB STP STP_4312560317x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.15 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
431256031736	3.15 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560317x6 (rev1).igs \| 1.8 MB STP STP_4312560317x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.15 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
431256038716	3.85 mm, 160 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560387x6 (rev1).igs \| 1.8 MB STP STP_4312560387x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.85 mm	Operation Force160 g	Electrical Life200000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
431256038726	3.85 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560387x6 (rev1).igs \| 1.8 MB STP STP_4312560387x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.85 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
431256038736	3.85 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560387x6 (rev1).igs \| 1.8 MB STP STP_4312560387x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.85 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
431256058716	5.85 mm, 160 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560587x6 (rev1).igs \| 1.8 MB STP STP_4312560587x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5.85 mm	Operation Force160 g	Electrical Life200000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
431256058726	5.85 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560587x6 (rev1).igs \| 1.8 MB STP STP_4312560587x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5.85 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
431256058736	5.85 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560587x6 (rev1).igs \| 1.8 MB STP STP_4312560587x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5.85 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
431256083716	8.35 mm, 160 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560837x6 (rev1).igs \| 1.8 MB STP STP_4312560837x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height8.35 mm	Operation Force160 g	Electrical Life200000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
431256083726	8.35 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560837x6 (rev1).igs \| 1.8 MB STP STP_4312560837x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height8.35 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
431256083736	8.35 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATU (rev22a).IntLib \| 393.5 KB CDS Cadence_WS-TATU (rev18a).zip \| 3 MB EAG Eagle_WS-TATU (rev20a).lbr \| 49.9 KB CAD files ZIP IGS IGS_4312560837x6 (rev1).igs \| 1.8 MB STP STP_4312560837x6 (rev1).stp \| 670.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height8.35 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
