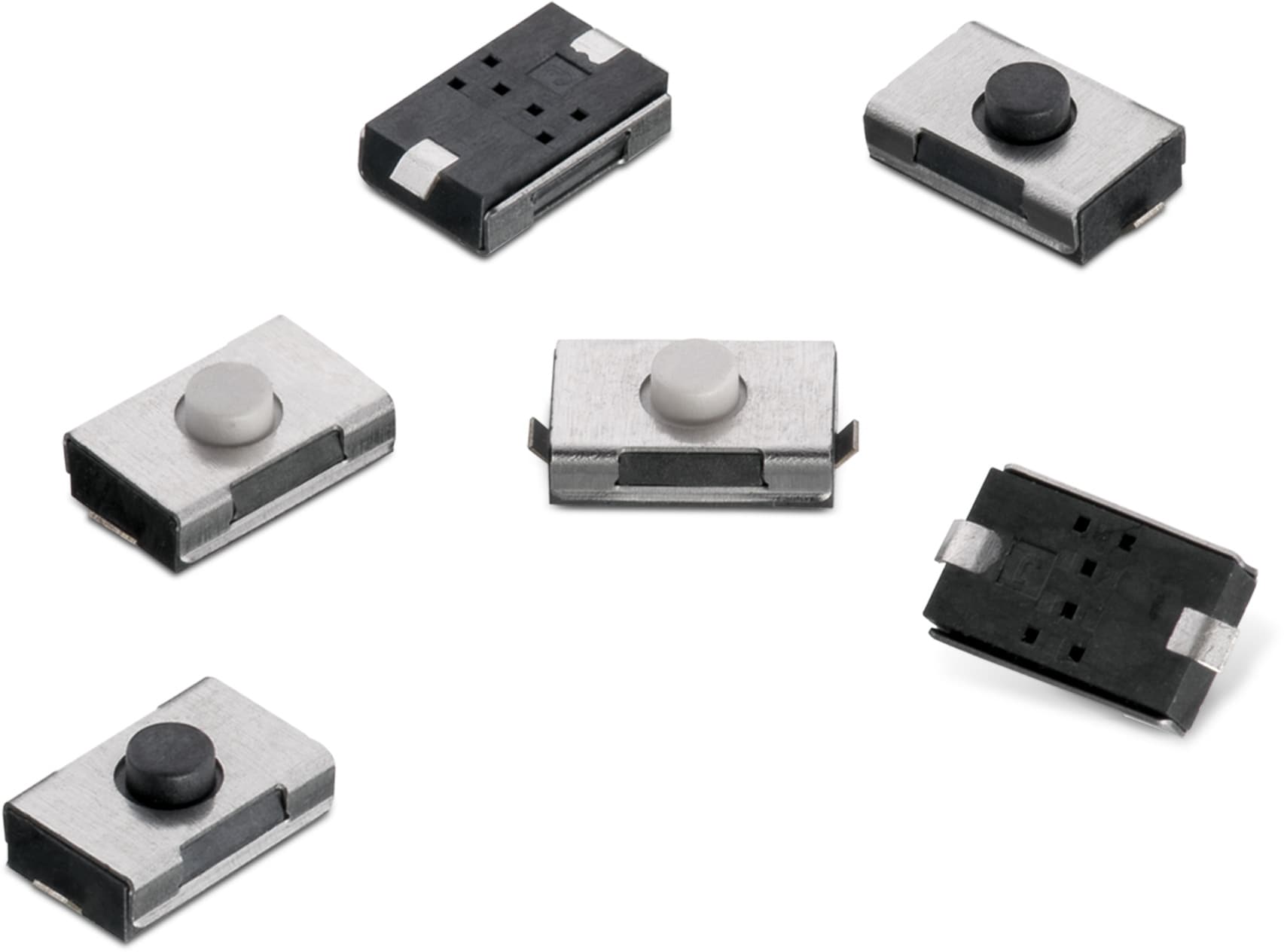

WS-TASV J-Bend SMT Tact Switch 6.0x3.8 mm

Material Properties
Cover Material Stainless Steel
Mechanical Properties
Stroke 0.25 mm
Properties
Actuator Material LCP
Actuator Flammability Rating UL94 V-0
Actuator Color Black; White
Frame Material LCP
Frame Flammability Rating UL94 V-0
Frame Color Black
Contact Material Stainless Steel
Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver
VR 12 V (DC)
Contact Resistance Initial 100 mΩ
Contact Resistance After Life Test 1 Ω
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable No
Qty. 3000
General Information
Operating Temperature -40 up to +85 °C
Washable No
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Samples
434123025816
STE ALT EAG IGS CAD 2.5 160 Black 3000
434113025826
STE ALT EAG IGS CAD 2.5 260 White 3000
Order Code Data­sheet
434123025816
434113025826
