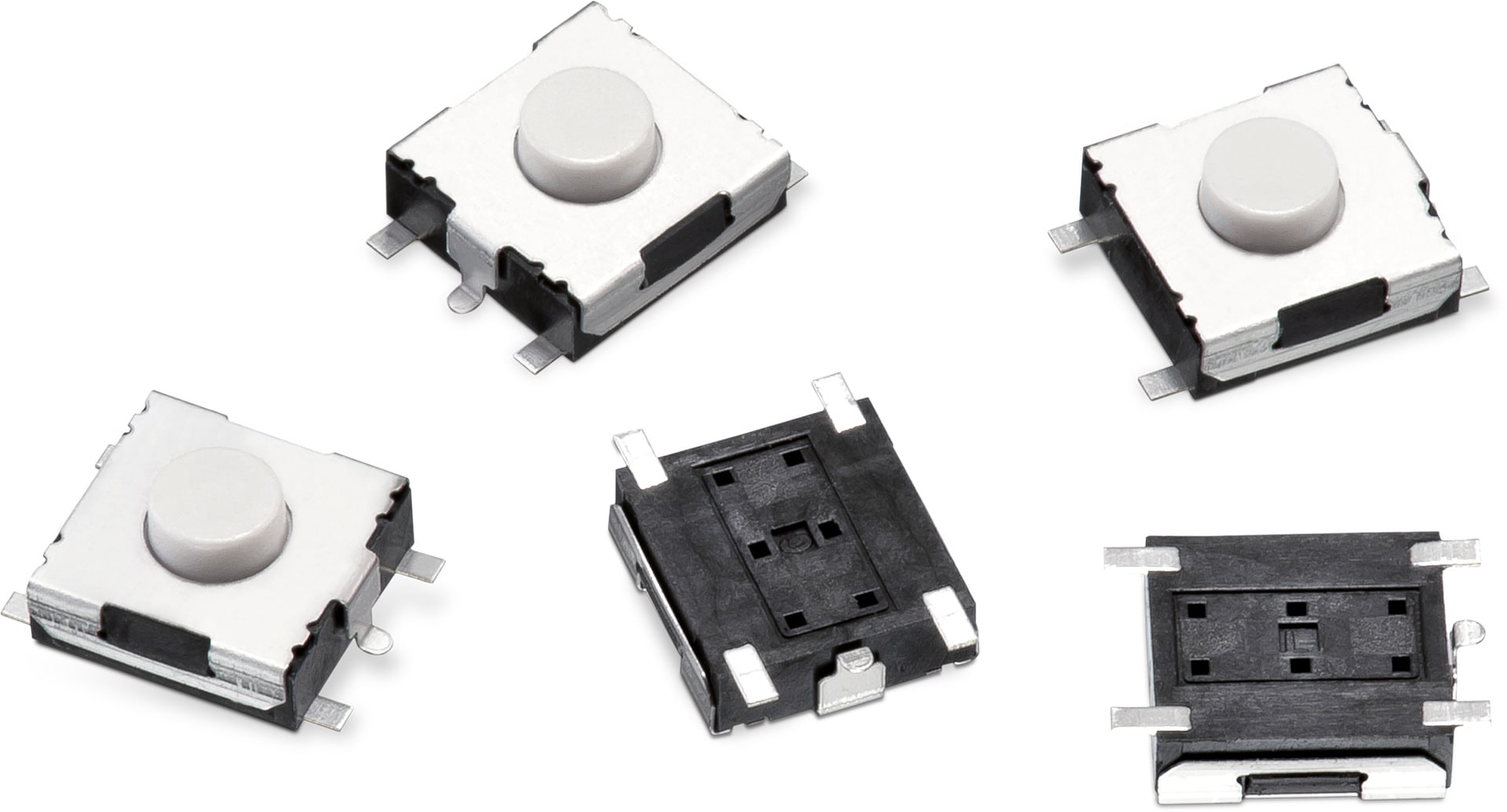

WS-TASV SMT Tact Switch 6x6 mm with ground terminal

Material Properties
Cover Material Stainless Steel
Mechanical Properties
Stroke 0.25 mm
Properties
Actuator Material LCP
Actuator Flammability Rating UL94 V-0
Actuator Color Black; Salmon; White
Frame Material LCP
Frame Flammability Rating UL94 V-0
Frame Color Black
Contact Material Stainless Steel
Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver
VR 12 V (DC)
Contact Resistance Initial 100 mΩ
Contact Resistance After Life Test 2 Ω
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable Yes
Qty. 1500
General Information
Operating Temperature -40 up to +85 °C
Washable Yes
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Design Kit Samples
431481031816
STE ALT EAG IGS CAD 3.1 160 Black 1500 499001
431471031826
STE ALT EAG IGS CAD 3.1 260 White 1500 499001
431471031836
STE ALT EAG IGS CAD 3.1 360 Salmon 1500 499001
Order Code Data­sheet
431481031816
431471031826
431471031836
Samples
Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Design Kit Samples
