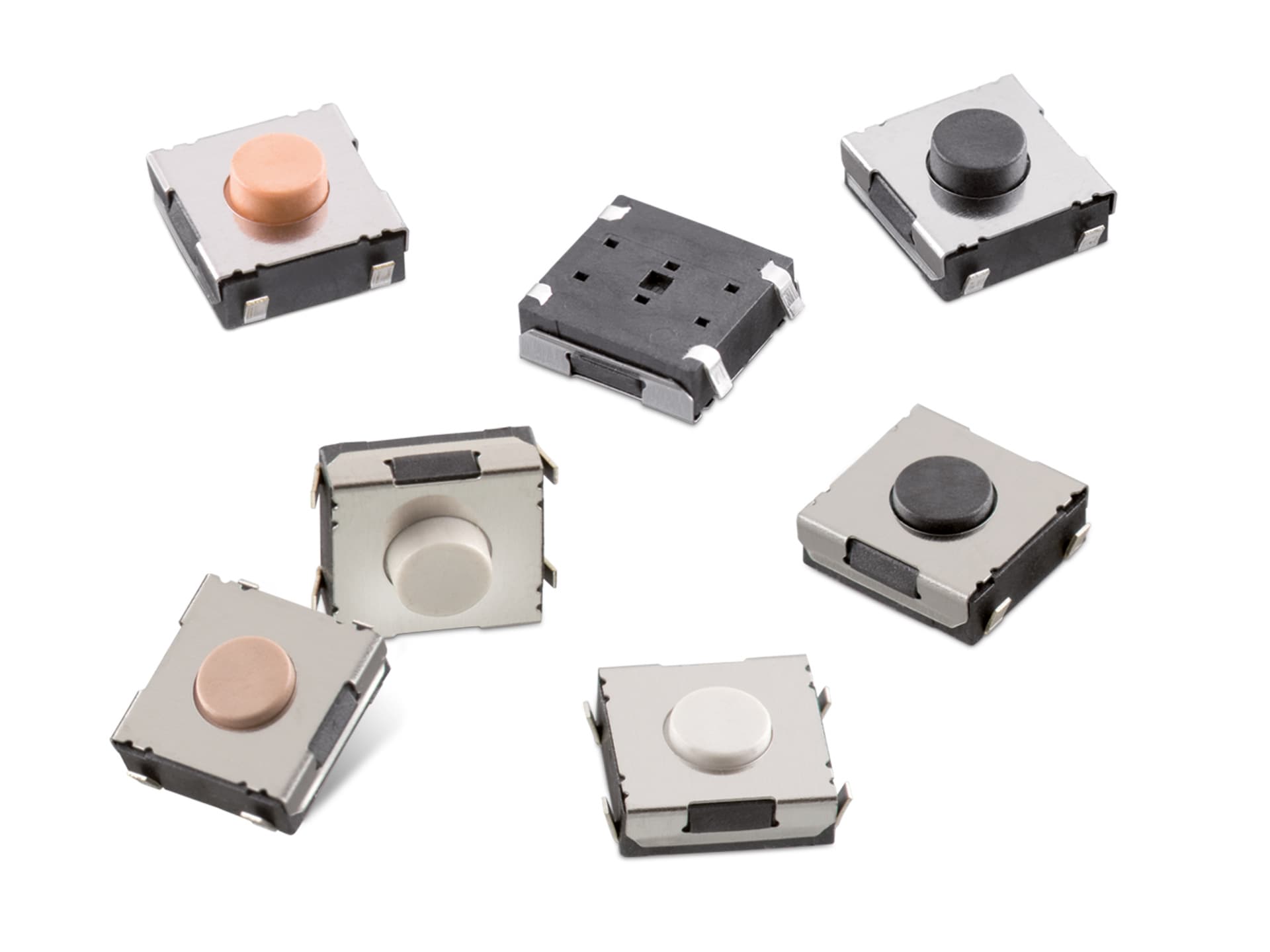

WS-TASV J-Bend SMT Washable Tact Switch 6x6 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 g; 260 g; 360 g
Electrical Life	200000 Cycles; 500000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	H(mm)	Operation Force(g)	Electrical Life(Cycles)	Actuator Color	Washable	Vaporphase process
430483025816	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430483025816 (rev1).pdf \| 102.3 KB IGS IGS_ 430483025816 (rev1).igs \| 1 MB STP stp_ 430483025816 (rev1).stp \| 255.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2.5 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processnot specified
430473025826	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430473025826 (rev1).pdf \| 102.3 KB IGS IGS_430473025826 (rev1).igs \| 1 MB STP STP_430473025826 (rev1).stp \| 255.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2.5 mm	Operation Force260 g	Electrical Life500000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processnot specified
430453025836	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430453025836 (rev1).pdf \| 102.3 KB IGS IGS_430453025836 (rev1).igs \| 1 MB STP STP_430453025836 (rev1).stp \| 255.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2.5 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableYes	Vaporphase processnot specified
430483031816	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430483031816 (rev1).pdf \| 99 KB IGS IGS_430483031816 (rev1).igs \| 1 MB STP STP_430483031816 (rev1).stp \| 255.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.1 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processnot specified
430473031826	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430473031826 (rev1).pdf \| 99 KB IGS IGS_430473031826 (rev1).igs \| 1 MB STP STP_430473031826 (rev1).stp \| 255.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.1 mm	Operation Force260 g	Electrical Life500000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processnot specified
430453031836	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430453031836 (rev1).pdf \| 99 KB IGS IGS_430453031836 (rev1).igs \| 1 MB STP STP_430453031836 (rev1).stp \| 255.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.1 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableYes	Vaporphase processnot specified
430483035816	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430483035816 (rev1).pdf \| 102.3 KB IGS IGS_430483035816 (rev1).igs \| 1 MB STP stp_430483035816 (rev1).stp \| 255.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.5 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processnot specified
430473035826	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430473035826 (rev1).pdf \| 102.2 KB IGS IGS_430473035826 (rev1).igs \| 1 MB STP STP_430473035826 (rev1).stp \| 255.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.5 mm	Operation Force260 g	Electrical Life500000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processnot specified
430453035836	SPEC	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26a).zip \| 3.8 MB CAD files ZIP 3D 3D_430453035836 (rev1).pdf \| 102.3 KB IGS IGS_430453035836 (rev1).igs \| 1 MB STP STP_430453035836 (rev1).stp \| 255.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.5 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableYes	Vaporphase processnot specified
