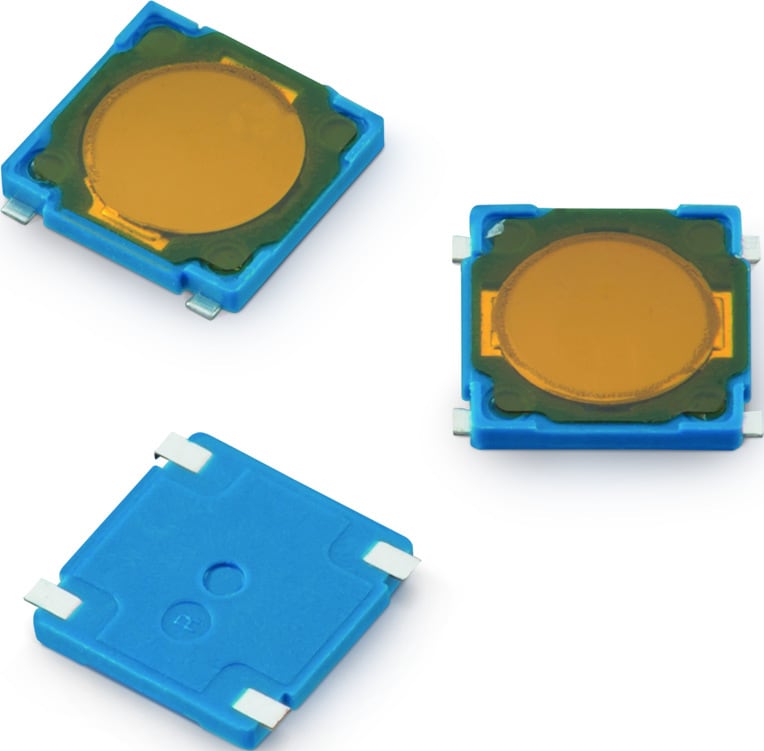

WS-TASV SMT Tact Switch 4.5x4.5 mm with height 0.55mm NEW

Mechanical Properties
Electrical Life 200000 Times; 1000000 Times
Stroke 0.2 mm
Properties
Frame Material PA9T
Frame Flammability Rating UL94 V-0
Frame Color Blue
Contact Material Stainless Steel
Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver
VR 12 V (DC)
Contact Resistance Initial 100 mΩ
Contact Resistance After Life Test 2 Ω
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable No
Qty. 7000
General Information
Operating Temperature -40 up to +85 °C
Washable No
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Qty. Samples
430151005826
STE ALT EAG CAD IGS 0.55 260 7000
430181005816
STE ALT EAG CAD IGS 0.55 160 7000
Order Code Data­sheet
430151005826
430181005816
Samples
Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Qty. Samples
