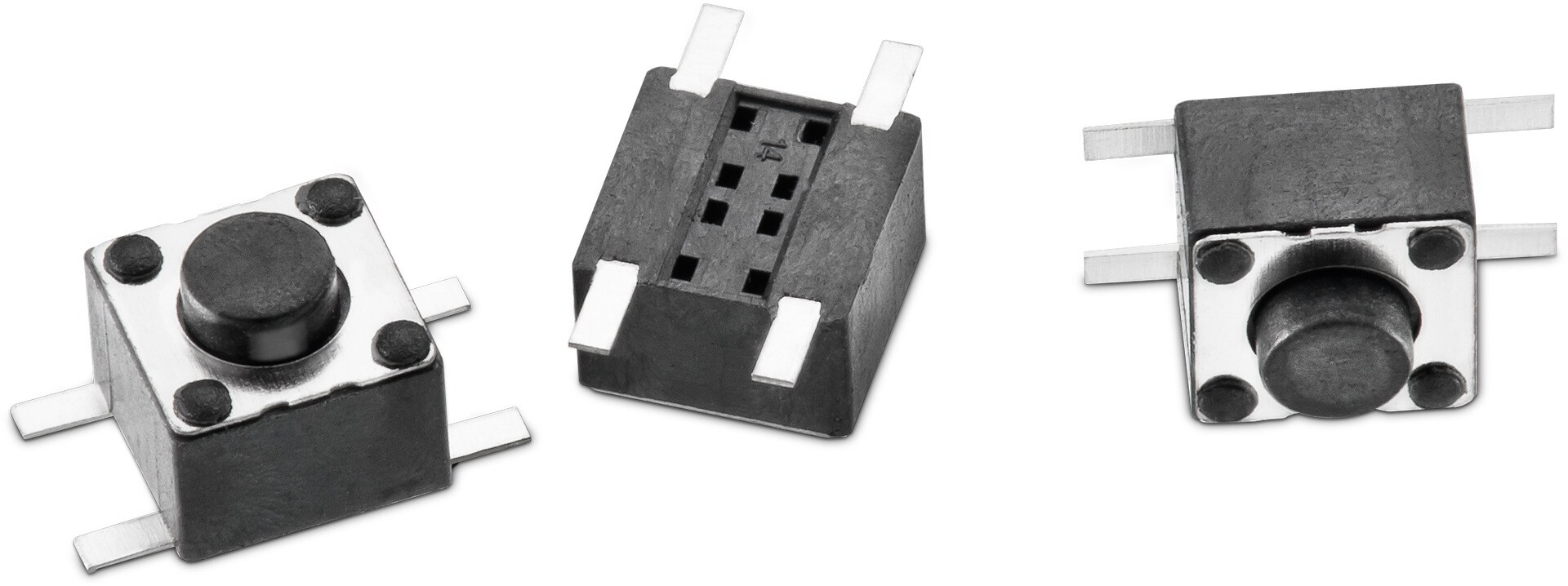

WS-TASV SMT Tact Switch 4.5x4.5 mm with Height 3.8mm

Material Properties
Cover Material Stainless Steel
Mechanical Properties
Stroke 0.2 mm
Properties
Actuator Material LCP
Actuator Flammability Rating UL94 V-0
Actuator Color Black
Frame Material LCP
Frame Flammability Rating UL94 V-0
Frame Color Black
Contact Material Stainless Steel
Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver
VR 12 V (DC)
Contact Resistance Initial 100 mΩ
Contact Resistance After Life Test 2 Ω
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable No
Qty. 1800
General Information
Operating Temperature -40 up to +85 °C
Washable No
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Design Kit Samples
430181038816
STE ALT EAG IGS CAD 3.8 160 Black 1800 499001
Order Code Data­sheet
430181038816
Samples
Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
