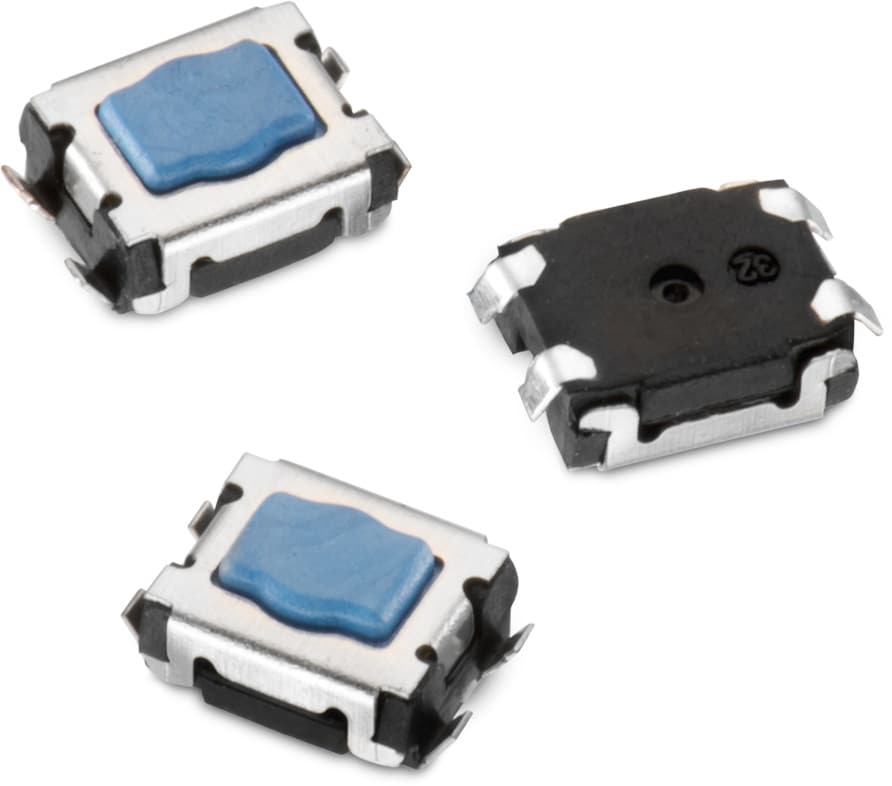

WS-TASV J-Bend SMT Tact Switch 3.5x2.9 mm

Material Properties
Cover Material Stainless Steel
Properties
Actuator Material LCP
Actuator Flammability Rating UL94 V-0
Actuator Color Blue
Frame Material PA46
Frame Flammability Rating UL94 HB
Frame Color Black
Contact Material Stainless Steel
Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver
VR 12 V (DC)
Contact Resistance Initial 100 mΩ
Contact Resistance After Life Test 1 Ω
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable No
Qty. 4000
General Information
Operating Temperature -40 up to +85 °C
Packaging Properties
Packaging Tape and Reel

Products

Order Code SPEC Downloads H
(mm)
Operation Force
(g)
Qty. Design Kit Samples
434153017835
STE ALT EAG IGS CAD 1.7 350 4000 499001
Order Code SPEC
434153017835
Samples
Order Code SPEC Downloads H
(mm)
Operation Force
(g)
Qty. Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
