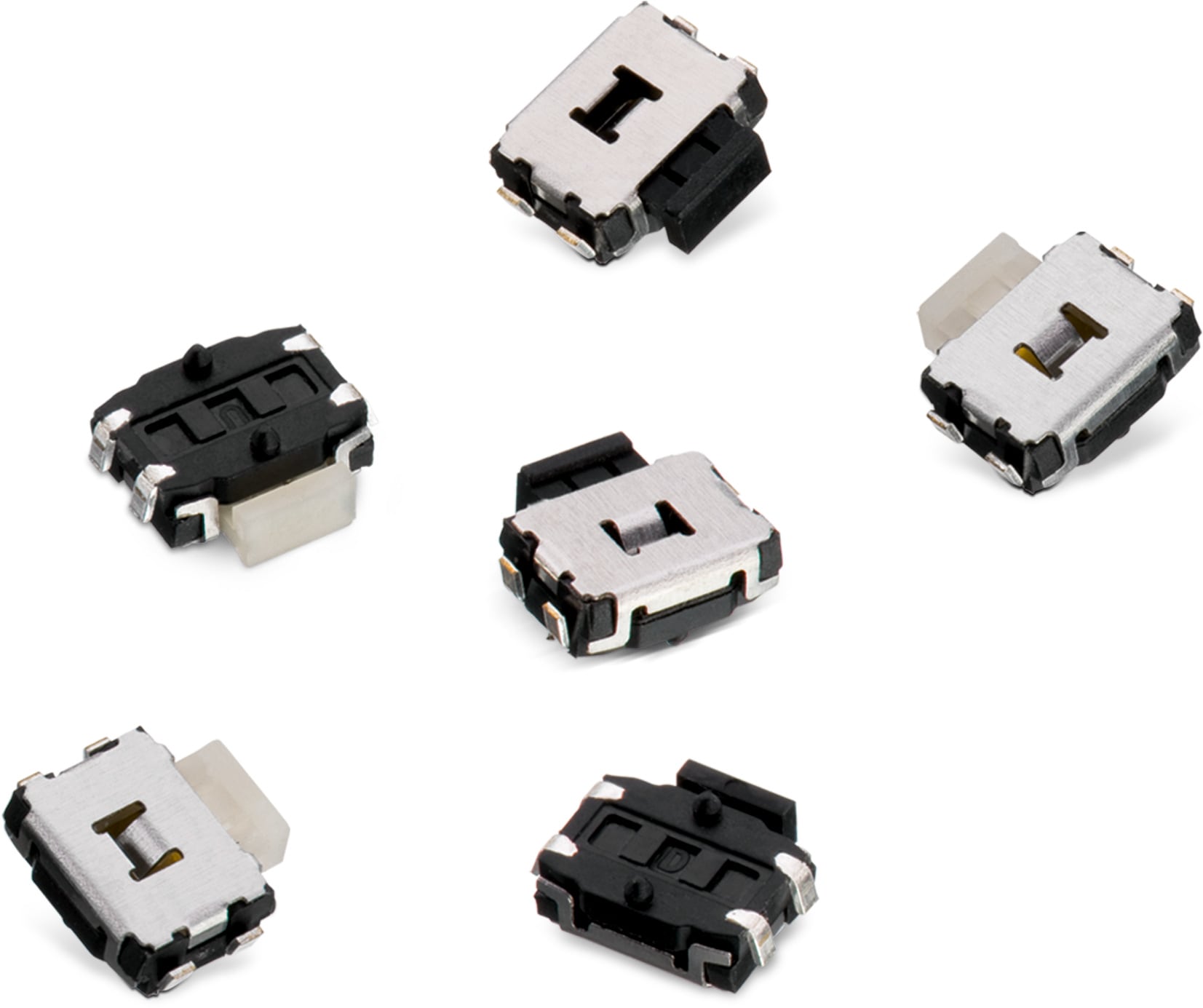

WS-TASU J-Bend SMT Tact Switch with Boss Design 4.7x3.5 mm side push

Material Properties
Cover Material Stainless Steel
Mechanical Properties
Stroke 0.25 mm; 0.3 mm
Properties
Actuator Material PA46
Actuator Flammability Rating UL94 HB
Actuator Color Black; White
Frame Material PA46
Frame Flammability Rating UL94 HB
Frame Color Black
Contact Material Stainless Steel
Contact Plating Silver
Terminal Material Copper Alloy
Terminal Plating Silver
VR 12 V (DC)
Contact Resistance Initial 100 mΩ
Contact Resistance After Life Test 1 Ω
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable No
General Information
Operating Temperature -40 up to +85 °C
Washable No
Packaging Properties
Packaging Tape and Reel

Time to Switch.

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test.

Video and more

Products

Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Samples
436353045816
STE ALT EAG IGS CAD 1.65 160 White
436333045822
STE ALT EAG IGS CAD 1.65 220 Black
Order Code Data­sheet
436353045816
436333045822
