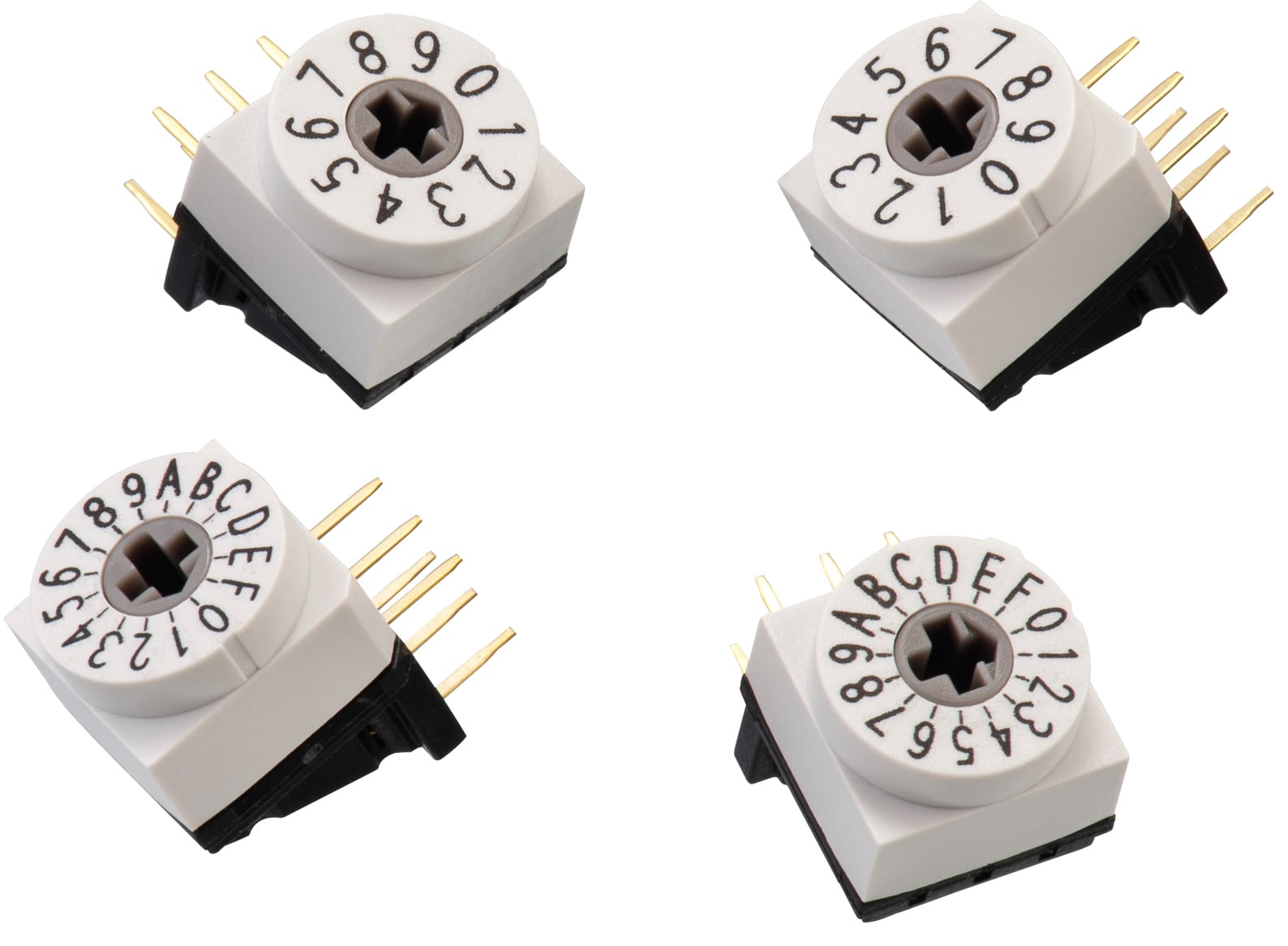

WS-ROTU THT Rotary Switch Right Angled with Cross Type Actuator, 5.08 mm Pitch, 10x10 mm

Packaging Properties
PackagingTube
Material Properties
Cover MaterialPA66
Cover Flammability RatingUL94 V-0
Cover ColorLight Grey
Base MaterialPA66
Base Flammability RatingUL94 V-0
Base ColorBlack
Actuator MaterialPOM
Actuator Flammability RatingUL94 HB
Actuator ColorDark Grey; Ivory
Terminal MaterialCopper Alloy
Terminal PlatingGold
Electrical Properties
IR150 mA
VR24 V (DC)
IR400 mA
VR24 V (DC)
Contact Resistance Initial80 mΩ
Contact Resistance After Life Test200 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Electrical Life10000 Steps
Actuator TypeCross Type
CodeComplement Code; Real Code
General Information
Operating Temperature-40 up to +85 °C
WashableYes
Ingress Protection CodeNone

Products

Order Code Data­sheet DownloadsPackaging UnitNumber of PositionCodeActuator Color Samples
429427520910SPEC
5 files 50 10 Real Code Dark Grey
429427520911SPEC
5 files 50 10 Complement Code Ivory
429427520916SPEC
5 files 50 16 Real Code Dark Grey
429427520917SPEC
5 files 50 16 Complement Code Ivory
Order Code Data­sheet
429427520910SPEC
429427520911SPEC
429427520916SPEC
429427520917SPEC
