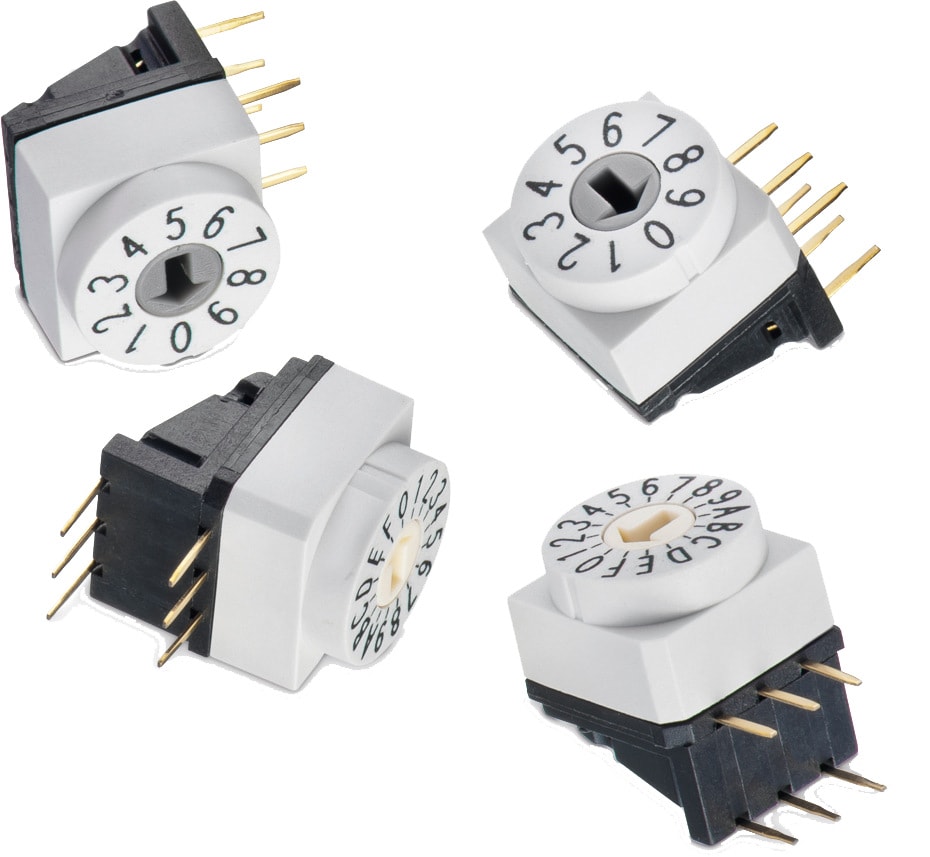

WS-ROTU THT Rotary Switch Right Angled with Arrow Type Actuator, 5.08 mm Pitch, 10x10 mm

Material Properties
Cover Material	PA66
Cover Flammability Rating	UL94 V-0
Base Material	PA66
Base Flammability Rating	UL94 V-0
Actuator Material	POM
Actuator Flammability Rating	UL94 HB
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
I_R	200 mA; 400 mA
V_R	24 V (DC)
Contact Resistance Initial	80 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	10000 Steps
Actuator Type	Arrow Type

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	None

Packaging Properties
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Samples
	429427320910	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTU (rev22a).IntLib \| 890 KB CDS Cadence_WS-ROTU (rev18a).zip \| 2.3 MB EAG Eagle_WS-ROTU (rev20a).lbr \| 68.1 KB CAD files ZIP IGS 429427320910 (rev1).igs \| 1.3 MB STP 429427320910 (rev1).stp \| 549.8 KB Download all 5 files as zip archive ZIP	10	Real Code	None	not specified	Dark Grey
	429427320911	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTU (rev22a).IntLib \| 890 KB CDS Cadence_WS-ROTU (rev18a).zip \| 2.3 MB EAG Eagle_WS-ROTU (rev20a).lbr \| 68.1 KB CAD files ZIP IGS 429427320911 (rev1).igs \| 1.3 MB STP 429427320911 (rev1).stp \| 549.8 KB Download all 5 files as zip archive ZIP	10	Complement Code	None	not specified	Ivory
	429427320916	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTU (rev22a).IntLib \| 890 KB CDS Cadence_WS-ROTU (rev18a).zip \| 2.3 MB EAG Eagle_WS-ROTU (rev20a).lbr \| 68.1 KB CAD files ZIP IGS 429427320916 (rev1).igs \| 1.8 MB STP 429427320916 (rev1).stp \| 738.9 KB Download all 5 files as zip archive ZIP	16	Real Code	None	not specified	Dark Grey
	429427320917	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTU (rev22a).IntLib \| 890 KB CDS Cadence_WS-ROTU (rev18a).zip \| 2.3 MB EAG Eagle_WS-ROTU (rev20a).lbr \| 68.1 KB CAD files ZIP IGS 429427320917 (rev1).igs \| 1.8 MB STP 429427320917 (rev1).stp \| 738.9 KB Download all 5 files as zip archive ZIP	16	Complement Code	None	not specified	Ivory

	Order Code	Datasheet
	429427320910	SPEC
	429427320911	SPEC
	429427320916	SPEC
	429427320917	SPEC

Samples

	Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Samples
