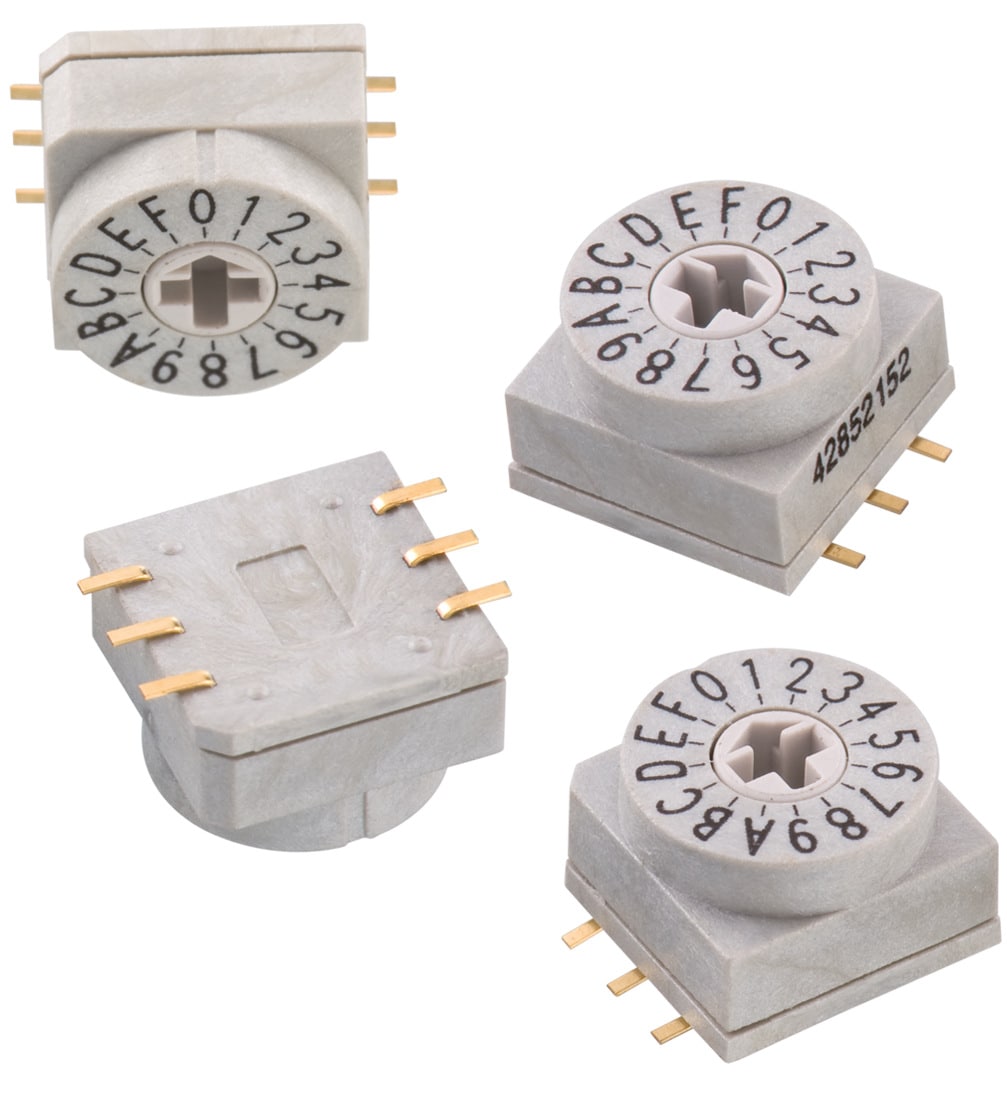

WS-ROSV SMT IP67 Rotary Switch with Cross Type Actuator 10x10 mm

Packaging Properties
PackagingTape and Reel
Material Properties
Cover MaterialLCP
Cover Flammability RatingUL94 V-0
Cover ColorGrey
Base MaterialLCP
Base Flammability RatingUL94 V-0
Base ColorGrey
Actuator MaterialPA66
Actuator Flammability RatingUL94 V-0
Actuator ColorBlue; Light Grey
Terminal MaterialCopper Alloy
Terminal PlatingGold
Electrical Properties
IR150 mA
VR24 V (DC)
IR400 mA
VR24 V (DC)
Contact Resistance Initial80 mΩ
Contact Resistance After Life Test200 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Electrical Life10000 Steps
Actuator TypeCross Type
CodeComplement Code; Real Code
General Information
Operating Temperature-40 up to +85 °C
WashableYes
Ingress Protection CodeIP67

Products

Order Code Data­sheet DownloadsPackaging UnitNumber of PositionCodeActuator ColorDesign Kit Samples
428521520810SPEC
5 files 600 10 Real Code Light Grey499001
428521520811SPEC
5 files 600 10 Complement Code Blue499001
428521520816SPEC
5 files 600 16 Real Code Light Grey499001
428521520817SPEC
5 files 600 16 Complement Code Blue499001
Order Code Data­sheet
428521520810SPEC
428521520811SPEC
428521520816SPEC
428521520817SPEC
Samples
Order Code Data­sheet DownloadsPackaging UnitNumber of PositionCodeActuator ColorDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
