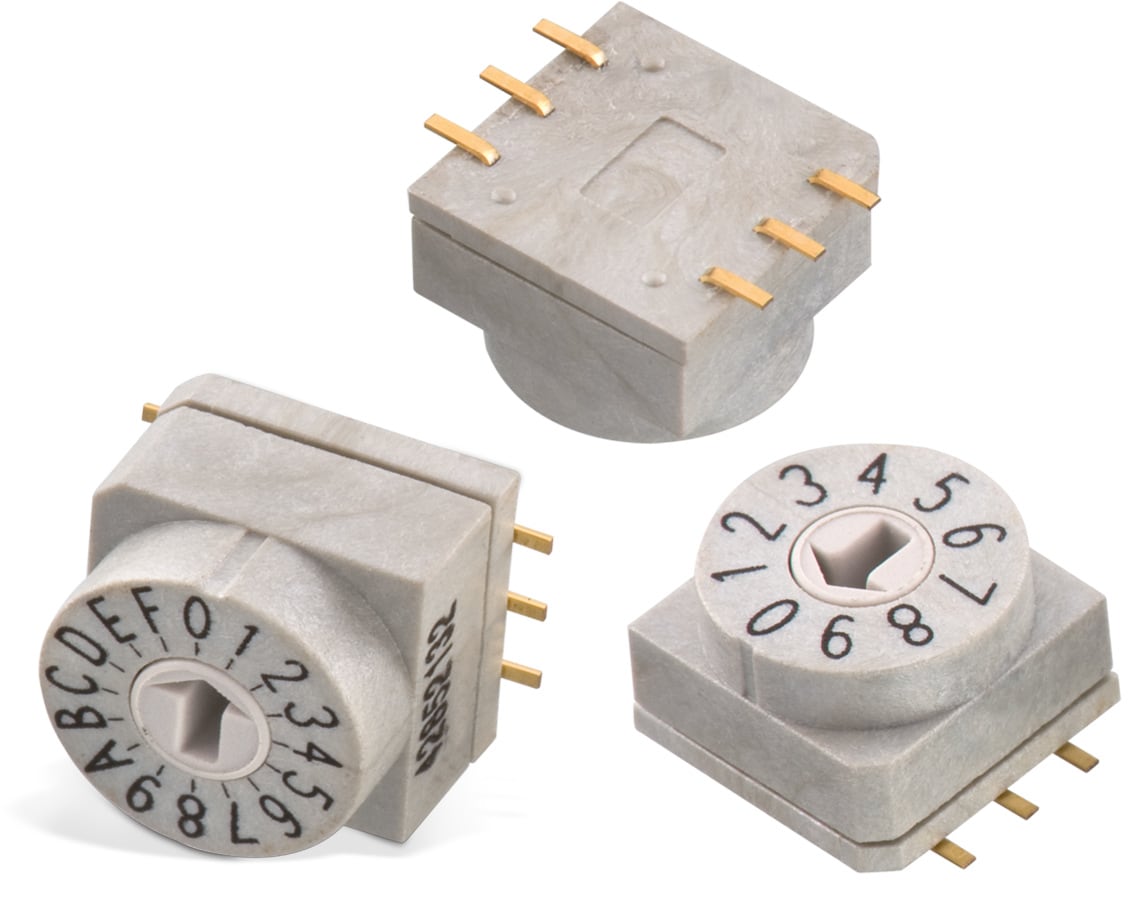

WS-ROSV SMT IP67 Rotary Switch with Arrow Type Actuator 10x10 mm

Material Properties
Cover Material	LCP
Cover Flammability Rating	UL94 V-0
Base Material	LCP
Base Flammability Rating	UL94 V-0
Actuator Material	PA66
Actuator Flammability Rating	UL94 V-0
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
I_R	400 mA
V_R	24 V (DC)
Contact Resistance Initial	80 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	10000 Steps
Actuator Type	Arrow Type

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	IP67

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Design Kit
428521320810	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP IGS 42852132081x_10_Pos (rev1).igs \| 1.4 MB STP 42852132081x_10_Pos (rev1).stp \| 487.7 KB Download all 5 files as zip archive ZIP	10	Real Code	IP67	not specified	Light Grey	499001
428521320811	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP IGS 42852132081x_10_Pos (rev1).igs \| 1.4 MB STP 42852132081x_10_Pos (rev1).stp \| 487.7 KB Download all 5 files as zip archive ZIP	10	Complement Code	IP67	not specified	Blue	499001
428521320816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP 3D 3D_428521320816 (rev1).pdf \| 174.3 KB IGS IGS_428521320816 (rev1).igs \| 742.6 KB STP STP_428521320816 (rev1).stp \| 674.9 KB Download all 6 files as zip archive ZIP	16	Real Code	IP67	not specified	Light Grey	499001
428521320817	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP 3D 3D_428521320817 (rev1).pdf \| 174.3 KB IGS IGS_428521320817 (rev1).igs \| 742.6 KB STP STP_428521320817 (rev1).stp \| 674.9 KB Download all 6 files as zip archive ZIP	16	Complement Code	IP67	not specified	Blue	499001

	Order Code	Datasheet
	428521320810	SPEC
	428521320811	SPEC
	428521320816	SPEC
	428521320817	SPEC

Samples

	Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Design Kit	Samples
