Puck-I

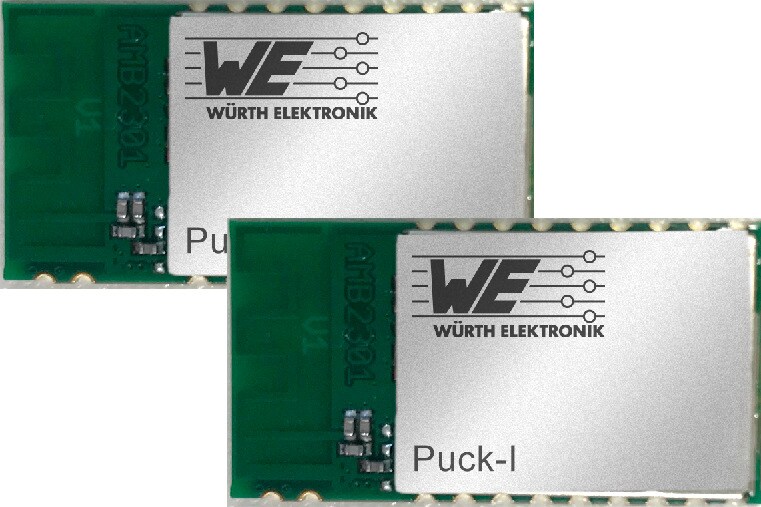

Bluetooth® Classic Radio Module NRND (AMB2301)

Characteristics

Discover our recommended products Proteus-I, Proteus-II and Proteus-III

  • As it is not possible to add or change a listing based on the withdrawn Bluetooth® Specification 2.0 this module is not recommended for new designs. The firmware will no longer be maintained. There will be no updates to the firmware as well as security updates and bug fixes.
  • Embedded Bluetooth® 2.0 RF module (Class 2)
  • BlueNicecom 4
  • Digital AUDIO interface (PCM interface)
  • Integrated profiles: SPP, GAP, SDAP
  • Supported profiles: DUN, FAX, FTP, HSP, HFP, OPP, SYNC, BIP, BPP
  • Small form factor
  • Integrated PCB antenna
  • UART interface with programmable baud rate
  • Quick-Start Evaluation Kit available
  • EN 300 328 compliant

See what the firmware developed by Würth Elektronik can do - the WE-ProWare

Products

Order Code Data­sheet Replacement Order Code Man­ual DownloadsFrequency Range
(MHz)
DescriptionLine of Sight Range Bluetooth®
(m)
PTx, e.r.p.
(dBm)
Rxsens, e.r.p.
(dBm)
VDD min.
(V)
VDD max.
(V)
Rb max.
(kbps)
Antenna Offer
2604021024000iSPEC
2608011024000
2608011024010
2611011024000
PDF 2402 MHz - 2480 Puck-I 20 1.4 -80 2.9 3.6 2000Himalia
Order Code Data­sheet Replacement Order Code
2604021024000iSPEC
2608011024000
2608011024010
2611011024000
Offer
Order Code Data­sheet Replacement Order Code Man­ual DownloadsFrequency Range
(MHz)
DescriptionLine of Sight Range Bluetooth®
(m)
PTx, e.r.p.
(dBm)
Rxsens, e.r.p.
(dBm)
VDD min.
(V)
VDD max.
(V)
Rb max.
(kbps)
Antenna Offer
