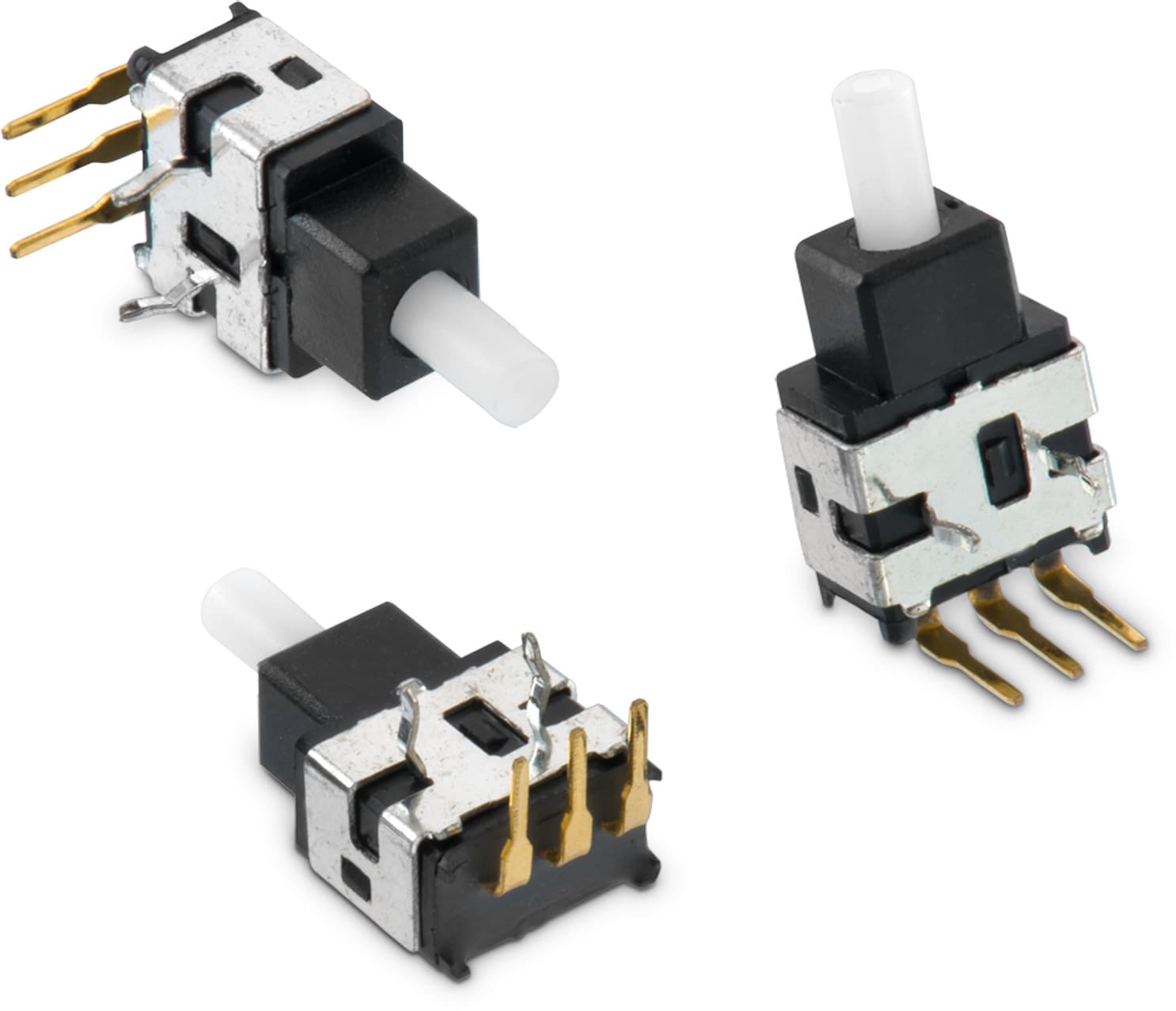

WS-PBTU THT Push Button Switch Right Angled 9.8x18.5 mm

WS-PBTU THT Push Button Switch Right Angled 9.8x18.5 mm
Material Properties
Cover MaterialPA66
Cover Flammability RatingUL94 V-0
Actuator MaterialPOM
Actuator Flammability RatingUL94 HB
Spring MaterialCarbon Steel
Contact MaterialCopper Alloy
Contact PlatingSilver
Terminal MaterialCopper Alloy
Terminal PlatingGold
Electrical Properties
PRated0.4 V*A
Contact Resistance Initial50 mΩ
RISO500 MΩ
Withstanding Voltage500 V (AC)
Mechanical Properties
Operation Force250 g
Electrical Life30000 Cycles
Total travel1.1 mm
General Information
Operating Temperature-40 °C up to +85 °C

Application Notes

Products

Order Code Data­sheet Downloads StatusSchematicSwitching FunctionActuation Function Samples
465031772505SPEC
5 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 5 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. SPDT ON-(ON) auto-return
