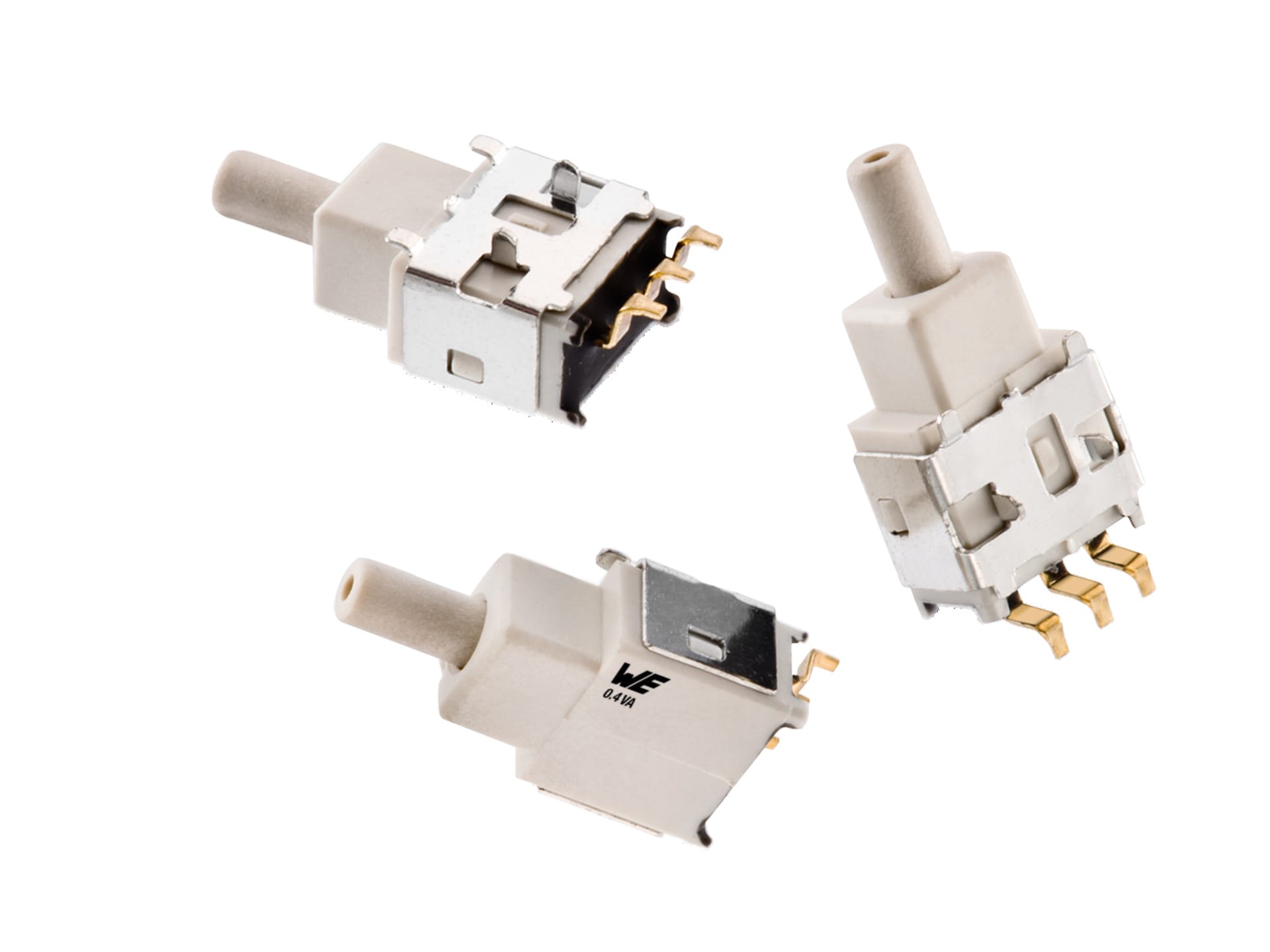

WS-PBSU SMT Push Button Switch Side Push 9.8x18.5 mm

Material Properties
Cover Material	PA 6T
Cover Flammability Rating	UL94 HB
Actuator Material	PA 6T
Actuator Flammability Rating	UL94 HB
Spring Material	Carbon Steel
Contact Material	Copper Alloy
Contact Plating	Silver
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
P_Rated	0.4 V*A
Contact Resistance Initial	50 mΩ
R_ISO	500 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force	250 g
Electrical Life	30000 Cycles
Total travel	1.1 mm

General Information
Operating Temperature	-40 °C up to +85 °C

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Schematic	Switching Function	Actuation Function	Samples
	465031712505	SPDT, ON-(ON), auto-return	Downloads6 files EDA models: Components ZIP ALT Altium_WS-PBSU (rev22a).IntLib \| 88.5 KB CDS Cadence_WS-PBSU (rev19c).zip \| 254.5 KB EAG Eagle_WS-PBSU (rev20a).lbr \| 15.8 KB CAD files ZIP 3D 3D_465031712505 (rev1).pdf \| 86.1 KB IGS 465031712505 (rev1).igs \| 1.2 MB STP 465031712505 (rev1).stp \| 471.7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	SchematicSPDT	Switching FunctionON-(ON)	Actuation Functionauto-return

Suitable for

WS-PBTU THT Push Button Switch Right Angled 9.8x18.5 mm

Learn more

Precaution Guide
PDF
