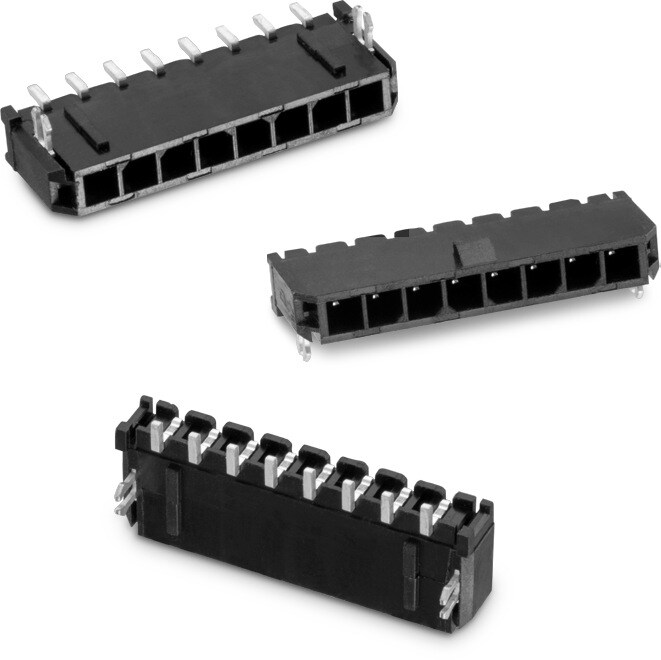

WR-MPC3 3.00 mm Male Header Single Row Right Angled with THT Retention Clip - SMT - Reel - Tin

General Informations
Pitch	3 mm
Rows	Single
Type	Right Angled
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tape and Reel

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
662102130822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662102130822 (rev1).pdf \| 83 KB IGS 662102130822 (rev1).iges \| 1.3 MB STP 662102130822 (rev1).stp \| 298.7 KB Download all 6 files as zip archive ZIP	2	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662103130822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662103130822 (rev1).pdf \| 89.7 KB IGS 662103130822 (rev1).iges \| 1.5 MB STP 662103130822 (rev1).stp \| 331 KB Download all 6 files as zip archive ZIP	3	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662104130822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662104130822 (rev1).pdf \| 96.3 KB IGS 662104130822 (rev1).iges \| 1.6 MB STP 662104130822 (rev1).stp \| 363.7 KB Download all 6 files as zip archive ZIP	4	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662105130822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662105130822 (rev1).pdf \| 103.5 KB IGS 662105130822 (rev1).iges \| 1.7 MB STP 662105130822 (rev1).stp \| 394.1 KB Download all 6 files as zip archive ZIP	5	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662106130822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662106130822 (rev1).pdf \| 111.5 KB IGS 662106130822 (rev1).iges \| 1.9 MB STP 662106130822 (rev1).stp \| 426.8 KB Download all 6 files as zip archive ZIP	6	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001

Order Code	Datasheet
662102130822	SPEC
662103130822	SPEC
662104130822	SPEC
662105130822	SPEC
662106130822	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Single Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
