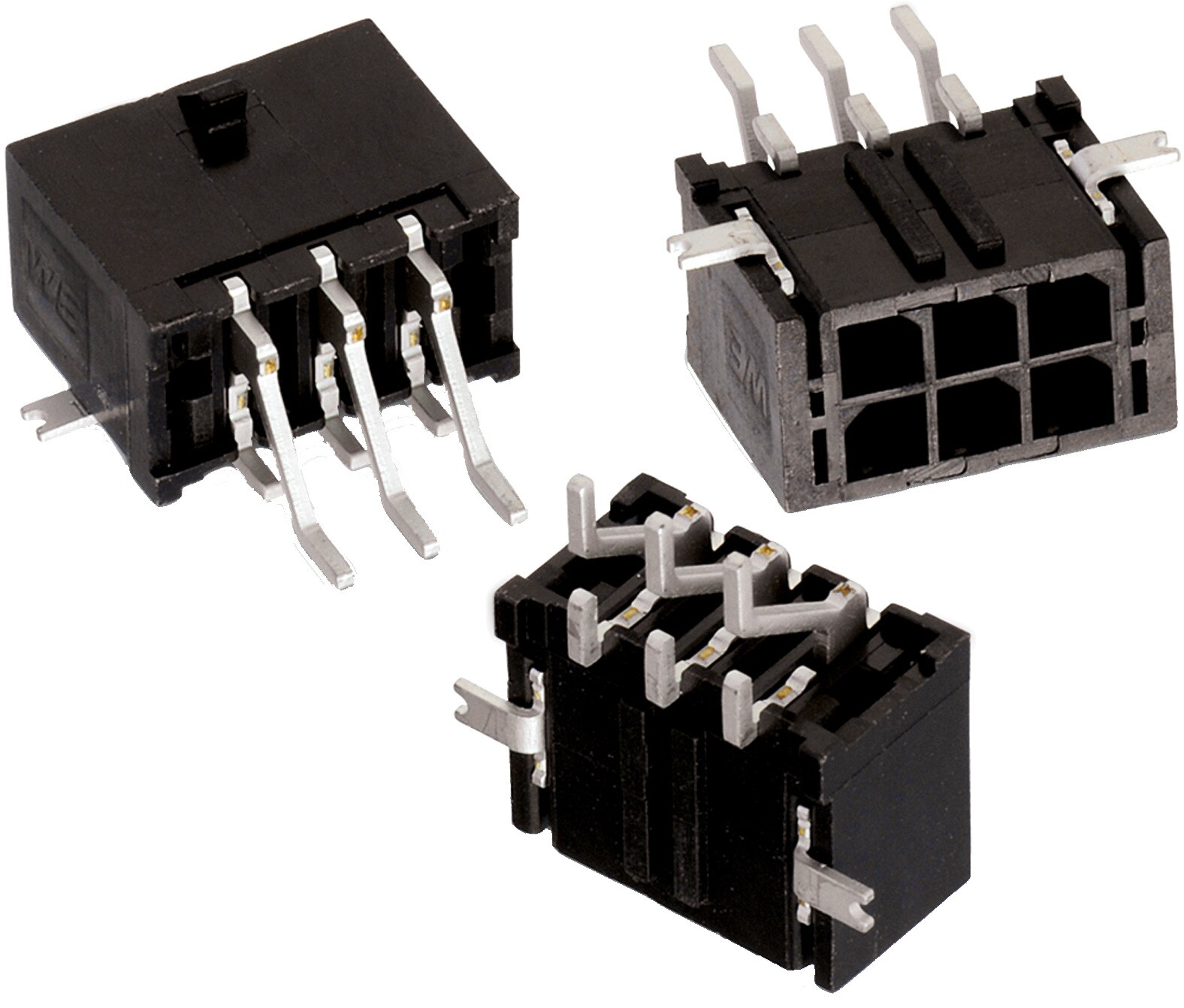

WR-MPC3 3.00 mm Male Header Dual Row Right Angled with SMT Solder Tabs - SMT - Reel – Tin | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-MPC3 TypeDual Row Product seriesWR-MPC3 3.00 mm Male Header Dual Row Right Angled with SMT Solder Tabs - SMT - Reel – Tin

WR-MPC3 3.00 mm Male Header Dual Row Right Angled with SMT Solder Tabs - SMT - Reel – Tin

General Informations
Pitch	3 mm
Rows	Dual
Type	Right Angled
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tape and Reel

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Samples
662102231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662102231722 (rev1).pdf \| 68.8 KB IGS Download_IGES_662102231722 (rev1).iges \| 1.1 MB STP 662102231722 (rev1).stp \| 257.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662104231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662104231722 (rev1).pdf \| 83.6 KB IGS Download_IGES_662104231722 (rev1).iges \| 1.3 MB STP 662104231722 (rev1).stp \| 303.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662106231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662106231722 (rev1).pdf \| 93.7 KB IGS Download_IGES_662106231722 (rev1).iges \| 1.5 MB STP 662106231722 (rev1).stp \| 339.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662108231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662108231722 (rev1).pdf \| 106 KB IGS Download_IGES_662108231722 (rev1).iges \| 1.7 MB STP 662108231722 (rev1).stp \| 387.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662110231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662110231722 (rev1).pdf \| 115.9 KB IGS Download_IGES_662110231722 (rev1).iges \| 1.8 MB STP 662110231722 (rev1).stp \| 424.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662112231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662112231722 (rev1).pdf \| 129 KB IGS Download_IGES_662112231722 (rev1).iges \| 2 MB STP 662112231722 (rev1).stp \| 472.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662114231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662114231722 (rev1).pdf \| 139.1 KB IGS Download_IGES_662114231722 (rev1).iges \| 2.2 MB STP 662114231722 (rev1).stp \| 508.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662116231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662116231722 (rev1).pdf \| 151.3 KB IGS Download_IGES_662116231722 (rev1).iges \| 2.4 MB STP 662116231722 (rev1).stp \| 554.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662118231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662118231722 (rev1).pdf \| 161.5 KB IGS Download_IGES_662118231722 (rev1).iges \| 2.6 MB STP 662118231722 (rev1).stp \| 595.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662120231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662120231722 (rev1).pdf \| 174.3 KB IGS Download_IGES_662120231722 (rev1).iges \| 2.8 MB STP 662120231722 (rev1).stp \| 638.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662122231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662122231722 (rev1).pdf \| 184.7 KB IGS Download_IGES_662122231722 (rev1).iges \| 2.9 MB STP 662122231722 (rev1).stp \| 682.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	22	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel
662124231722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 3D_662124231722 (rev1).pdf \| 196.8 KB IGS Download_IGES_662124231722 (rev1).iges \| 3.2 MB STP 662124231722 (rev1).stp \| 737 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tape and Reel

Order Code	Datasheet
662102231722	SPEC
662104231722	SPEC
662106231722	SPEC
662108231722	SPEC
662110231722	SPEC
662112231722	SPEC
662114231722	SPEC
662116231722	SPEC
662118231722	SPEC
662120231722	SPEC
662122231722	SPEC
662124231722	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Dual Row
