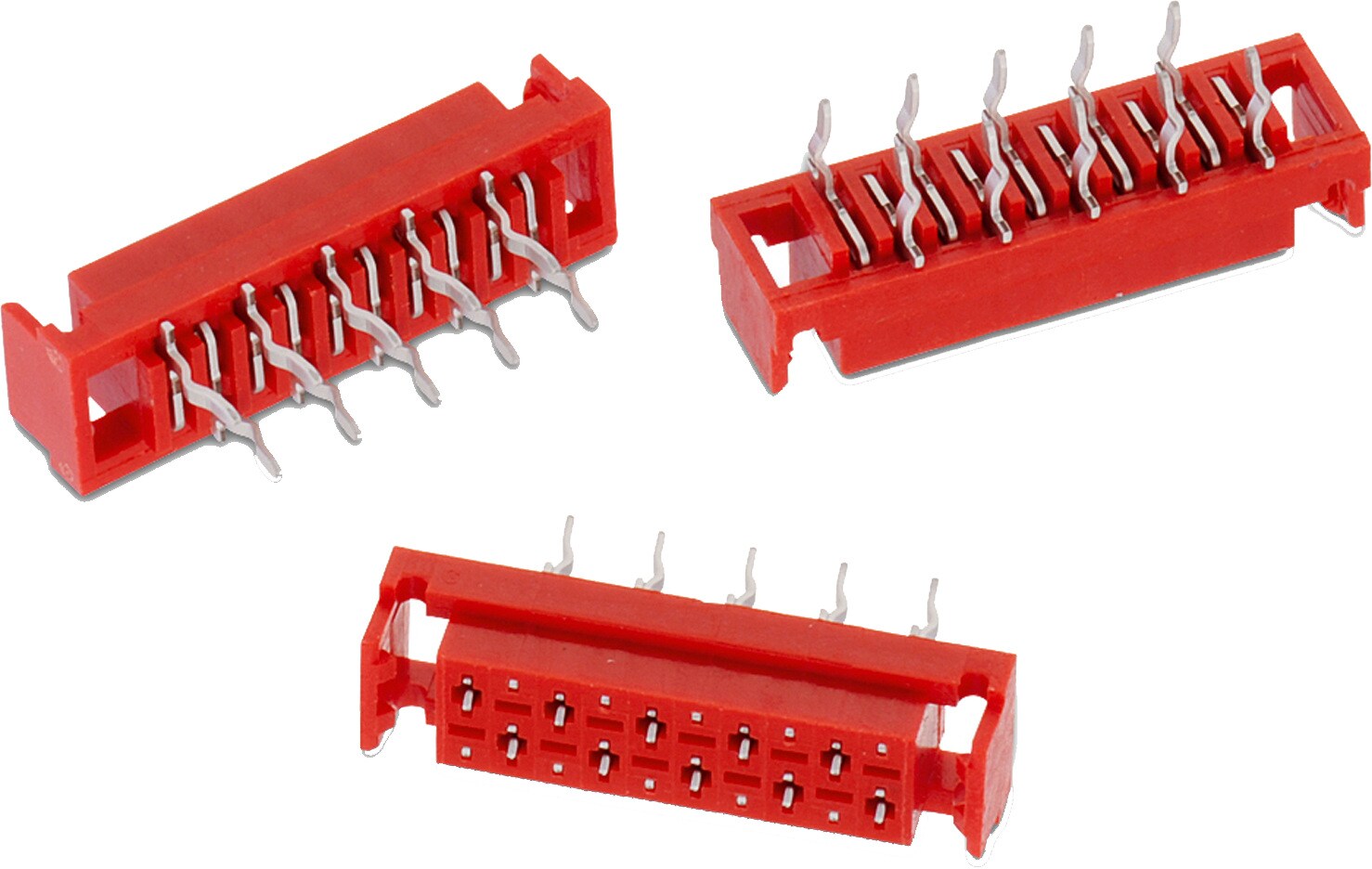

WR-MM Female Connector with Latch & w/o Polarization

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Female

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Polarization	Mount	L (mm)	Working Voltage (V (AC))	I_R (A)	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit
690367190472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367190472 (rev1).pdf \| 90.3 KB IGS 690367190472 (rev1).igs \| 1.6 MB STP 690367190472 (rev1).stp \| 530.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	2.54	Female	Straight	No	THT	9.68	250	1.5	10	max.	Tube	690001
690367190672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367190672 (rev1).pdf \| 110.6 KB IGS 690367190672 (rev1).igs \| 1.9 MB STP 690367190672 (rev1).stp \| 662 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Female	Straight	No	THT	12.22	250	1.5	10	max.	Tube	690001
690367190872	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367190872 (rev1).pdf \| 125.6 KB IGS 690367190872 (rev1).igs \| 2.3 MB STP 690367190872 (rev1).stp \| 794.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Female	Straight	No	THT	14.76	250	1.5	10	max.	Tube	690001
690367191072	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367191072 (rev1).pdf \| 147.9 KB IGS 690367191072 (rev1).igs \| 2.6 MB STP 690367191072 (rev1).stp \| 927.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Female	Straight	No	THT	17.3	250	1.5	10	max.	Tube	612690 690001
690367191272	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367191272 (rev1).pdf \| 164.8 KB IGS 690367191272 (rev1).igs \| 3 MB STP 690367191272 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	2.54	Female	Straight	No	THT	19.84	250	1.5	10	max.	Tube	690001
690367191472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367191472 (rev1).pdf \| 183.1 KB IGS 690367191472 (rev1).igs \| 3.3 MB STP 690367191472 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Female	Straight	No	THT	22.38	250	1.5	10	max.	Tube	690001
690367191672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367191672 (rev1).pdf \| 200.1 KB IGS 690367191672 (rev1).igs \| 3.6 MB STP 690367191672 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Female	Straight	No	THT	24.92	250	1.5	10	max.	Tube	690001
690367191872	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367191872 (rev1).pdf \| 228.4 KB IGS 690367191872 (rev1).igs \| 4 MB STP 690367191872 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	2.54	Female	Straight	No	THT	27.46	250	1.5	10	max.	Tube	690001
690367192072	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367192072 (rev1).pdf \| 247 KB IGS 690367192072 (rev1).igs \| 4.4 MB STP 690367192072 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Female	Straight	No	THT	30	250	1.5	10	max.	Tube	690001
690367192272	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367192272 (rev1).pdf \| 262.5 KB IGS 690367192272 (rev1).igs \| 4.7 MB STP 690367192272 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	2.54	Female	Straight	No	THT	32.54	250	1.5	10	max.	Tube	690001
690367192472	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367192472 (rev1).pdf \| 281.4 KB IGS 690367192472 (rev1).igs \| 5.1 MB STP 690367192472 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	2.54	Female	Straight	No	THT	35.08	250	1.5	10	max.	Tube	690001
690367192672	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB KIC KiCad_WR-MM (rev25a).zip \| 77.3 MB CAD files ZIP 3D 690367192672 (rev1).pdf \| 301.4 KB IGS 690367192672 (rev1).igs \| 5.4 MB STP 690367192672 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Female	Straight	No	THT	37.62	250	1.5	10	max.	Tube	690001
