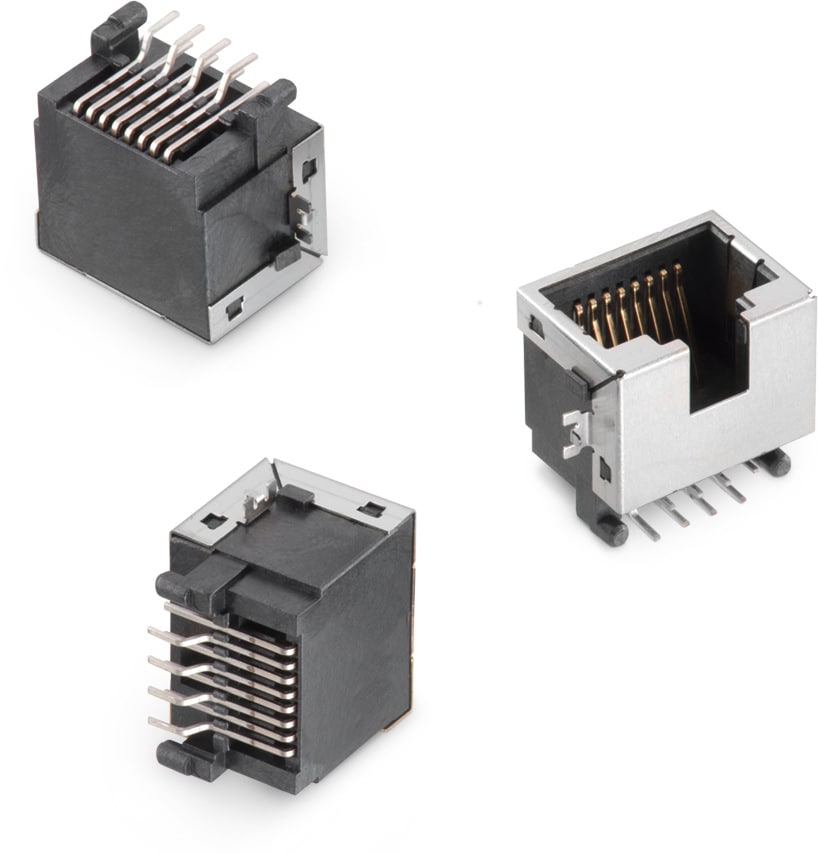

WR-MJ Modular Jack THR Horizontal Mid-Mount Shielded Tab Down

Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
Shielding Material Brass
Shielding Plating Nickel
General Information
Operating Temperature -40 up to +85 °C
Compliance Lead free / RoHS
Electrical Properties
Working Voltage 125 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Packaging Properties
Packaging Tape and Reel

Products

Order Code SPEC Downloads xPxC Type Mount Samples
615108150221R
IGE STE 3D ALT EAG CAD 8P8C Right Angle THR
Order Code SPEC
615108150221R
Samples
Order Code SPEC Downloads xPxC Type Mount Samples
