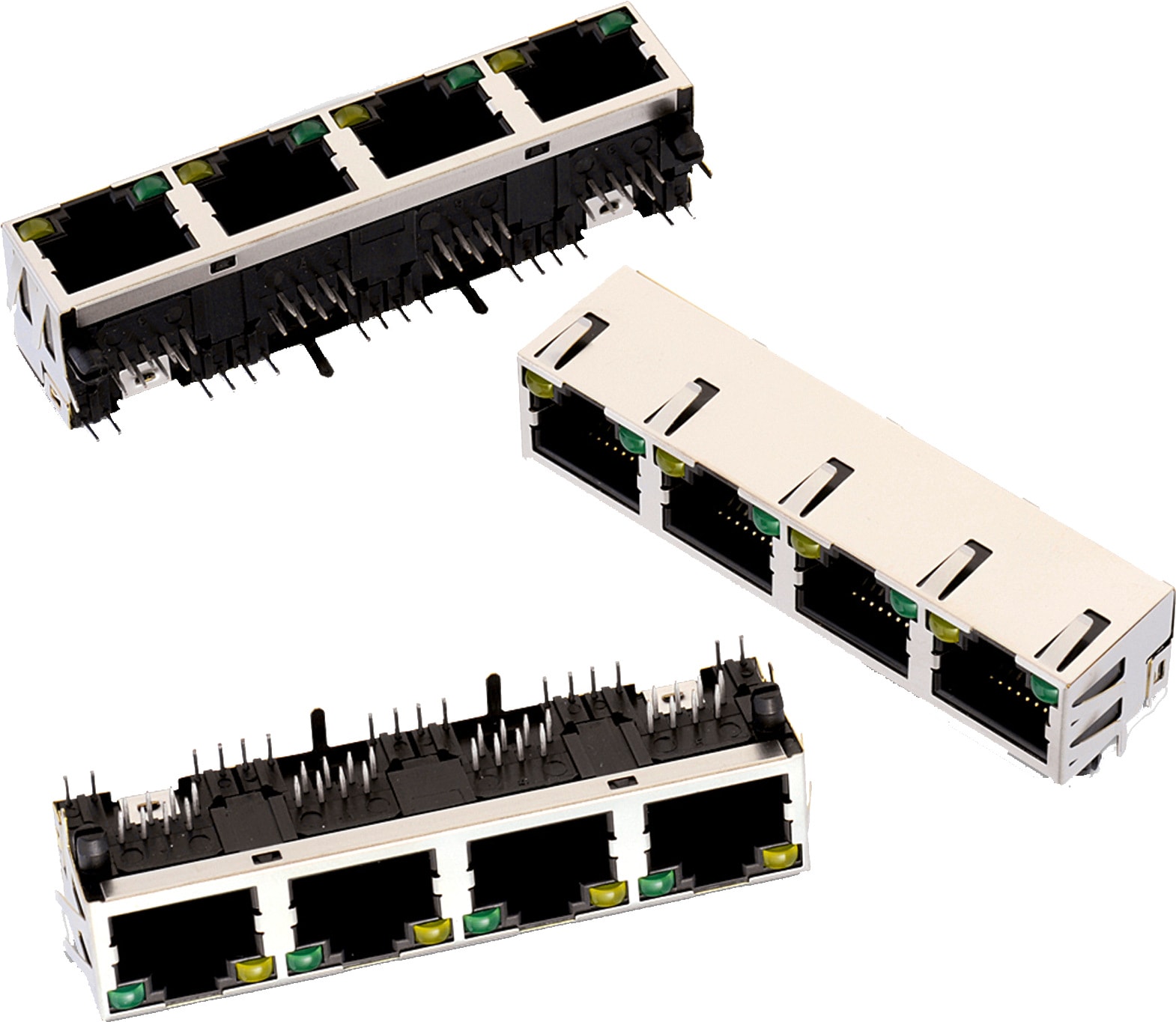

WR-MJ Modular Jack Horizontal Shielded Ganged 4 Ports w. LED and EMI Panel Finger 8P8C Tab Up

Kind Properties
LEDyellow-green
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialBronze
Shielding PlatingNickel (Ni)
Electrical Properties
IR1.5 A
Working Voltage120 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance20 mΩ
RISO500 MΩ
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsxPxCLEDTypeMountApplication SystemDesign Kit Samples
615032137921SPEC
7 files 8P8C yellow-green Horizontal THT CAT 3749615
Order Code Data­sheet
615032137921SPEC
Samples
Order Code Data­sheet DownloadsxPxCLEDTypeMountApplication SystemDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
